TRANSMISSION

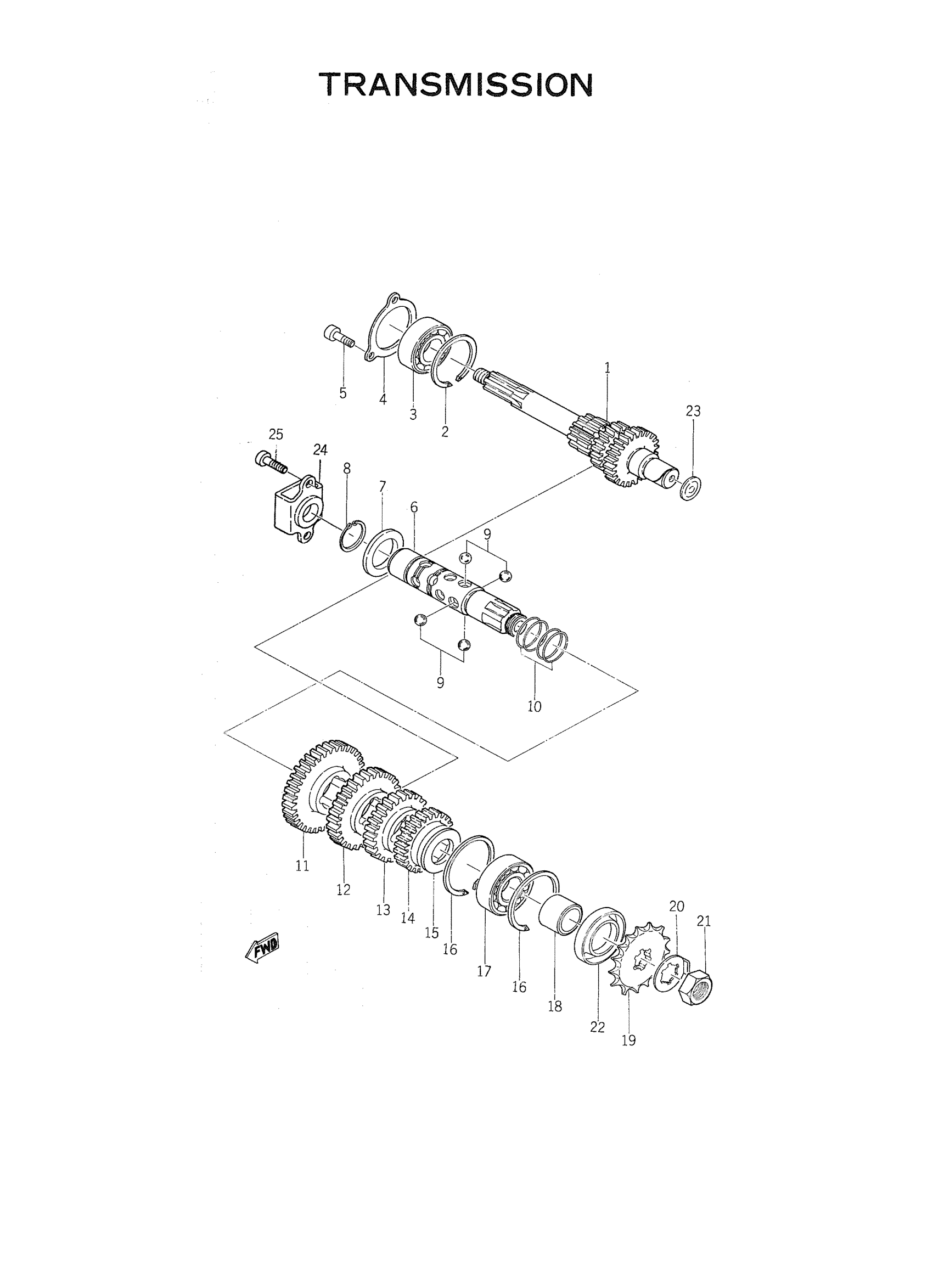

Yamaha MG1T (OMAHA 80) 163 1964 TRANSMISSION Diagram
#
Description
Price
1
MAIN AXLE
122-17410-00-00
Unavailable
2
CIR-CLIP (70R)
93420-40064-00
Unavailable
3
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
$37.99
4
PLATE, BRNG COVER
102-15381-00-00
Unavailable
5
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
6
AXLE, DRIVE
122-17421-00-00
Unavailable
7
SHIM 1
102-17427-00-00
Unavailable
8
CIRCLIP(JF7)
99009-25400-00
$8.49
9
BALL
93509-32012-00
Unavailable
10
SPRING, BALL HOLD
122-17479-00-00
Unavailable
11
MAIN AXLE
122-17410-00-00
Unavailable
12
GEAR, 2ND WHEEL
122-17221-00-00
Unavailable
13
GEAR, 3RD WHEEL
122-17231-00-00
Unavailable
14
GEAR, 4TH WHEEL
122-17241-00-00
Unavailable
15
SPACER
90560-20037-00
Unavailable
16
CIRCLIP, INNER
93450-47011-00
Unavailable
17
BEARING(1YW)
93306-20461-00
Unavailable
18
COLLAR
90387-20346-00
Unavailable
19
SPROCKET,DRIVE 14T(5171746142)
93812-14035-00
Unavailable
19
SPROCKET,DRIVE 15T(5171746152)
93812-15063-00
Unavailable
19
SPROCKET, DRIVE (166-17461-60)
93812-16092-00
Unavailable
20
WASHER, LOCK (1L8)
90215-16127-00
Unavailable
21
NUT,SPEC'L SHAPE
90179-16018-00
Unavailable
22
OIL SEAL (28X47X7-102)
93102-28022-00
Unavailable
23
PLUG,EXPANSION
90330-20004-00
Unavailable
24
SPACER
90560-20082-00
Unavailable
25
SCREW, PAN HEAD
92501-04010-00
Unavailable
