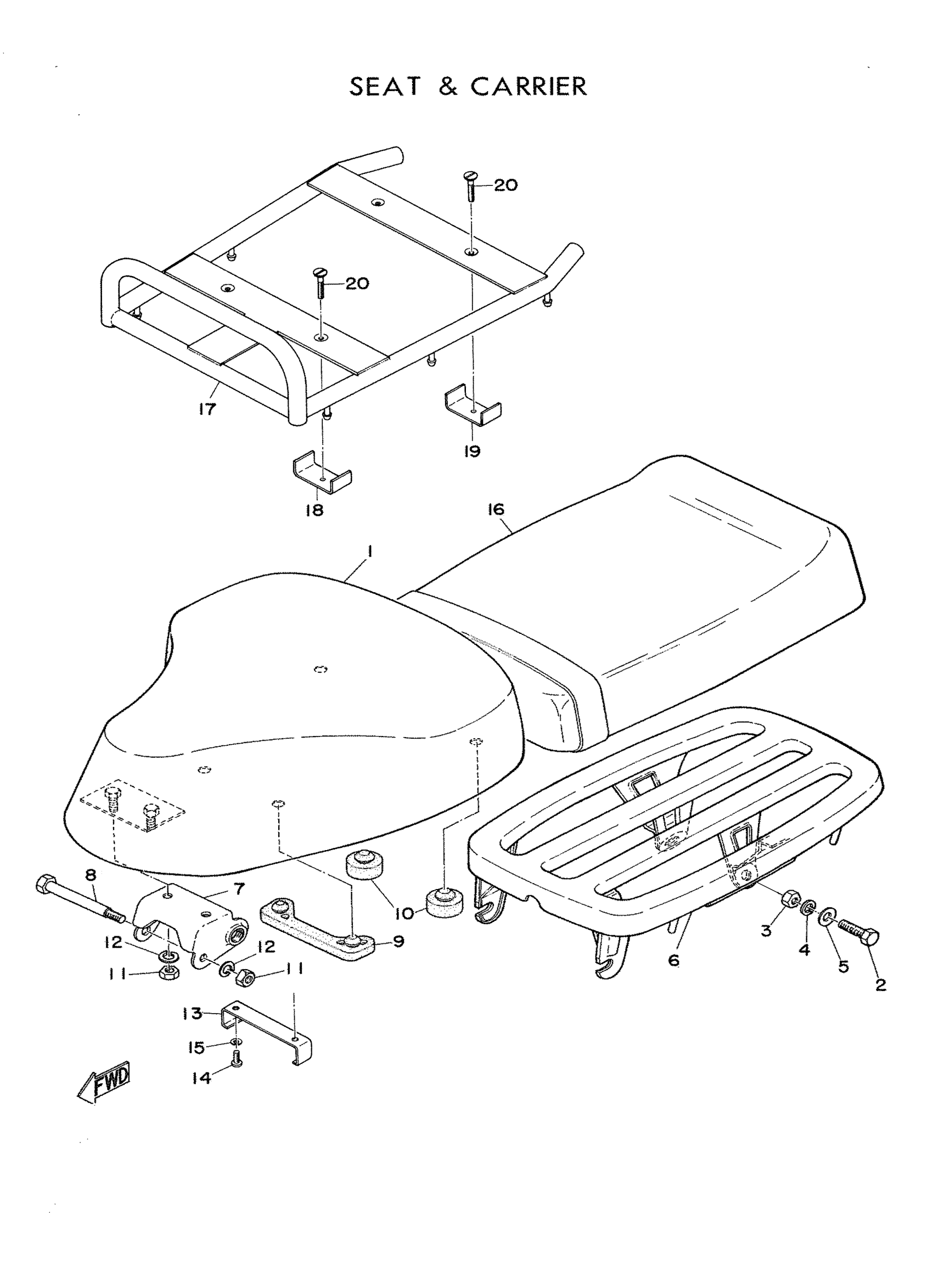

Yamaha MG1T (OMAHA 80) 163 1964 SEAT CARRIER Diagram

#

Description
Price

1

SINGLE SEAT ASSEMBLY

163-24710-00-00

Unavailable

2

BOLT(JA9)

90101-08691-00

$4.29

3

. NUT

95380-08700-00

Unavailable

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

WASHER, PLAIN

92990-08200-00

Unavailable

6

CARRIER ASSY

162-24810-00-00

Unavailable

7

HINGE

102-24726-00-00

Unavailable

8

PIN

102-24727-00-00

Unavailable

9

DAMPER, SEAT

102-24723-00-00

Unavailable

10

STOPPER

256-27314-00-00

Unavailable

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

STOPPER, SEAT

162-24745-00-00

Unavailable

14

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

TANDEM SEAT ASSEMBLY

107-24750-00-00

Unavailable

17

CARRIER ASSEMBLY

162-24840-00-00

Unavailable

18

CLAMP, CARRIER

162-24815-00-00

Unavailable

19

CLAMP, CARRIER

162-24815-00-00

Unavailable

20

SCREW,FLAT HEAD

92703-08030-00

Unavailable
