REAR WHEEL

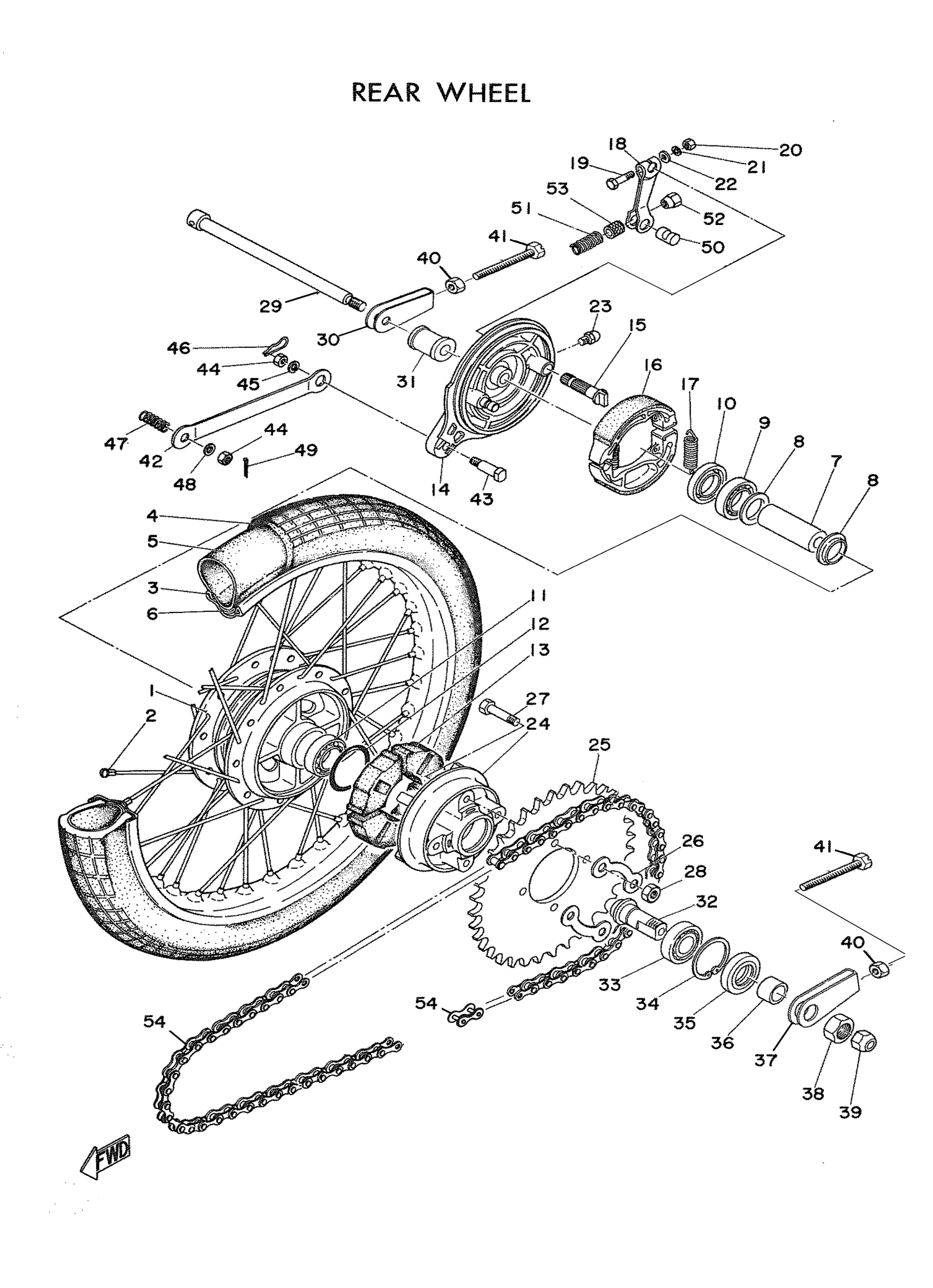

Yamaha MG1T (OMAHA 80) 163 1964 REAR WHEEL Diagram
#
1
HUB,REAR
102-25311-00-38
Unavailable
2
SPOKE SET, REAR
102-25304-00-00
Unavailable
3
RIM 1.40X16
94414-16125-00
Unavailable
4
TIRE
94125-16010-00
Unavailable
5
TUBE 250X16
94225-16048-00
Unavailable
6
BAND, RIM
94330-16058-00
$20.99
7
SPACER
90560-12145-00
$20.99
8
FLANGE, SPACER
109-25315-00-00
$7.99
9
BRG.
93306-30101-00
$36.99
10
OIL SEAL (21X37X7-102)
93104-21016-00
$14.99
11
BEARING
93306-30102-00
$39.99
12
O-RING (102)
93210-41041-00
$7.49
13
DAMPER
102-25364-00-00
Unavailable
14
BRAKE SHOE PLT ASY
339-25320-10-00
Unavailable
15
CAM SHAFT
122-25351-02-00
Unavailable
16
BRAKE SHOE KIT
4KN-W253E-11-00
Unavailable
17
SPRING, TENSION (566).
90506-16150-00
Unavailable
18
LEVER, CAMSHAFT
102-25355-00-00
Unavailable
19
BOLT, HEXAGON
97017-06030-00
Unavailable
20
NUT
92901-06030-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
23
NIPPLE, GREASE
93700-06M03-00
Unavailable
24
CLUTCH, HUB
102-25366-00-00
Unavailable
25
SPROCKET, DRIVN 51T
122-25451-10-00
Unavailable
26
WASHER
4AW-25412-00-00
Unavailable
27
WASHER, PLAIN
162-25411-00-00
Unavailable
28
NUT
102-25413-00-00
Unavailable
29
AXLE,WHEEL
357-25381-00-00
Unavailable
30
PULLER, CHAIN 2
163-25389-00-00
Unavailable
31
COLLAR
90387-12098-00
Unavailable
32
AXLE,SPROCKET
102-25387-02-00
Unavailable
33
BEARING(3BN)
93306-00438-00
Unavailable
34
CIRCLIP(5U8)
99009-42500-00
Unavailable
35
OIL SEAL (30X42X8-102)
93106-30004-00
Unavailable
36
COLLAR
90387-18143-00
Unavailable
37
PULLER, CHAIN 1
163-25388-00-00
Unavailable
38
NUT, HEXAGON
90170-18165-00
Unavailable
39
NUT,SPEC'L SHAPE
90179-10106-00
Unavailable
40
NUT, HEXAGON
95380-06600-00
Unavailable
41
BOLT HEXAGON 167253790000
90101-06016-00
Unavailable
42
BAR, TENSION
102-25371-00-00
Unavailable
43
BOLT 1022537300
90109-08183-00
Unavailable
44
. NUT
95380-08700-00
Unavailable
45
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
46
CLIP (156-83525-00)
90468-10050-00
Unavailable
47
SPRING,COMPRESSION
90501-20129-00
Unavailable
48
. NUT
95380-08700-00
Unavailable
49
PIN, COTTER (648)
91490-20015-00
Unavailable
50
PIN 1562723700
90249-12008-00
Unavailable
51
SPRING, (180-27236-00)
90501-10245-00
Unavailable
52
NUT (25K)
90179-06411-00
Unavailable
53
SEAT, SPRING
148-27239-00-00
Unavailable
54
CHAIN, DRIVE
9Y580-52101-00
Unavailable
54
JOINT, CHAIN (29A)
94680-52001-00
Unavailable
