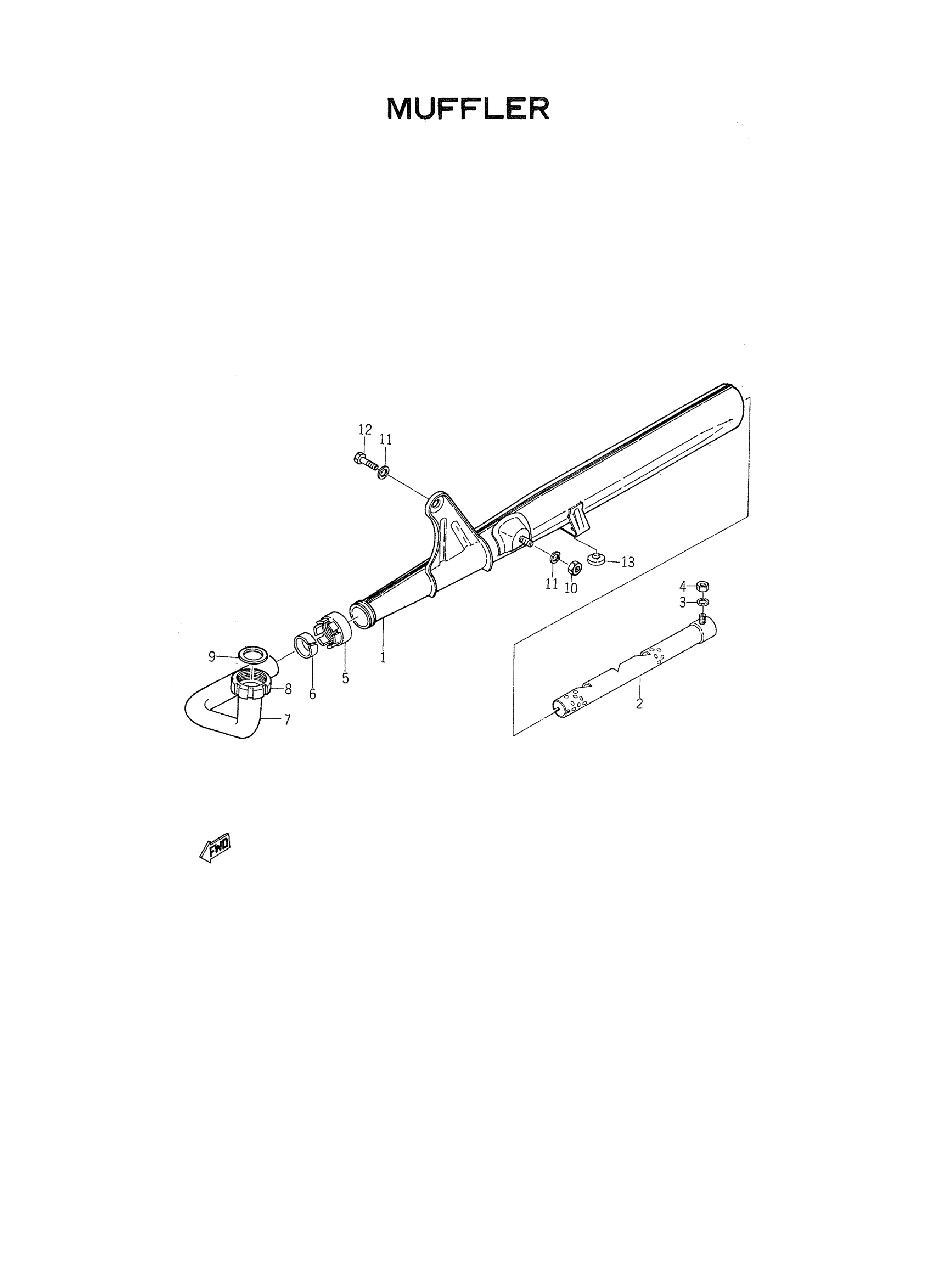

Yamaha MG1T (OMAHA 80) 163 1964 MUFFLER Diagram

#

Description
Price

1

MUFFLER ASSEMBLY L

163-14710-00-00

Unavailable

2

SILENCER, EXHAUST

122-14753-01-00

Unavailable

3

YBS67-5 WASHER, SPRING

92990-05100-00

$1.49

4

NUT, HEXAGON SMALL

95317-05700-00

$5.88

5

NUT, MUFFLER JOINT

132-14713-00-00

Unavailable

6

GASKET, MUFFLER

3NA-14714-01-00

Unavailable

7

PIPE, EXHAUST L

163-14611-00-00

Unavailable

8

NUT, RING

132-14612-00-00

Unavailable

9

GASKET, EXHAUST PIPE

3MT-14613-00-00

$9.11

10

NUT(6L2)

95333-08600-00

$3.15

11

YBS67-8 WASHER, SPRING

92990-08100-00

$4.32

12

BOLT

97014-08040-00

$5.01

13

STOPPER

1M3-27114-00-00

$7.70
