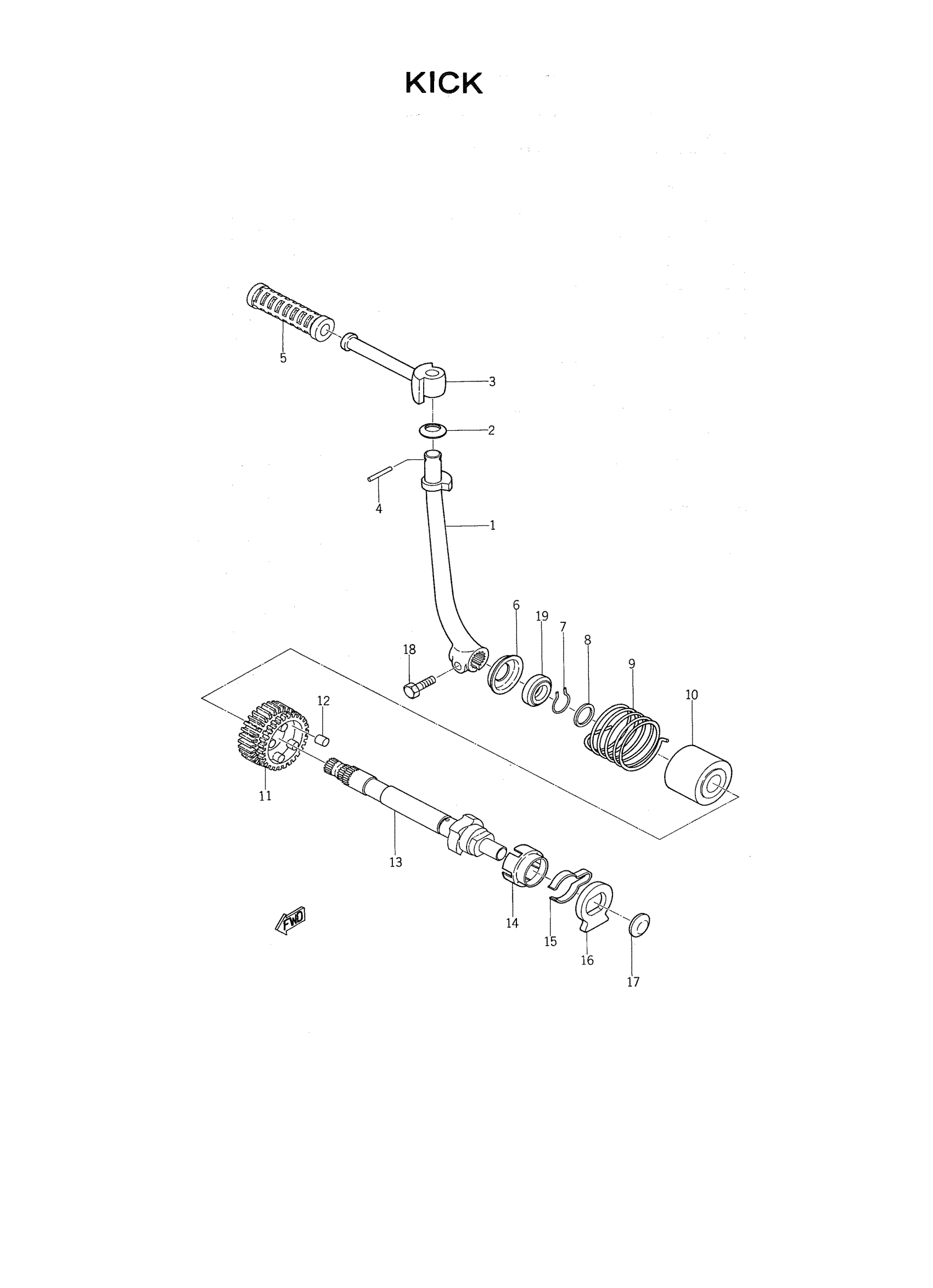

Yamaha MG1T (OMAHA 80) 163 1964 KICK Diagram
#
Description
Price
1
KICK CRANK ASY
127-15610-01-91
Unavailable
2
WASHER,WAVE
90206-10014-00
Unavailable
3
LEVER, KICK
214-15612-01-00
Unavailable
4
PIN, DOWEL
93604-18017-00)
Unavailable
5
COVER, KICK LEVER
102-15618-00-00
Unavailable
6
COVER, KICK AXLE
122-15662-00-00
Unavailable
7
CLIP
90468-18014-00
Unavailable
8
WASHER,PLATE
90201-15233-00
Unavailable
9
SPRING,TORSION
90508-26044-00
Unavailable
10
SPACER
126-15666-00-00
Unavailable
11
GEAR, KICK
122-15641-00-00
Unavailable
13
KICK AXLE ASSEMBLY
122-15660-00-00
Unavailable
14
RETAINER, KICK ROLLER
102-15689-00-00
Unavailable
15
CLIP
90468-12011-00
Unavailable
16
STOPPER
102-15668-00-00
Unavailable
17
PLUG, BLIND
101-15678-00-00
Unavailable
18
BOLT, HEXAGON
97017-06020-00
Unavailable
19
OIL SEAL (15X26X6-102)
93109-15001-00
Unavailable
