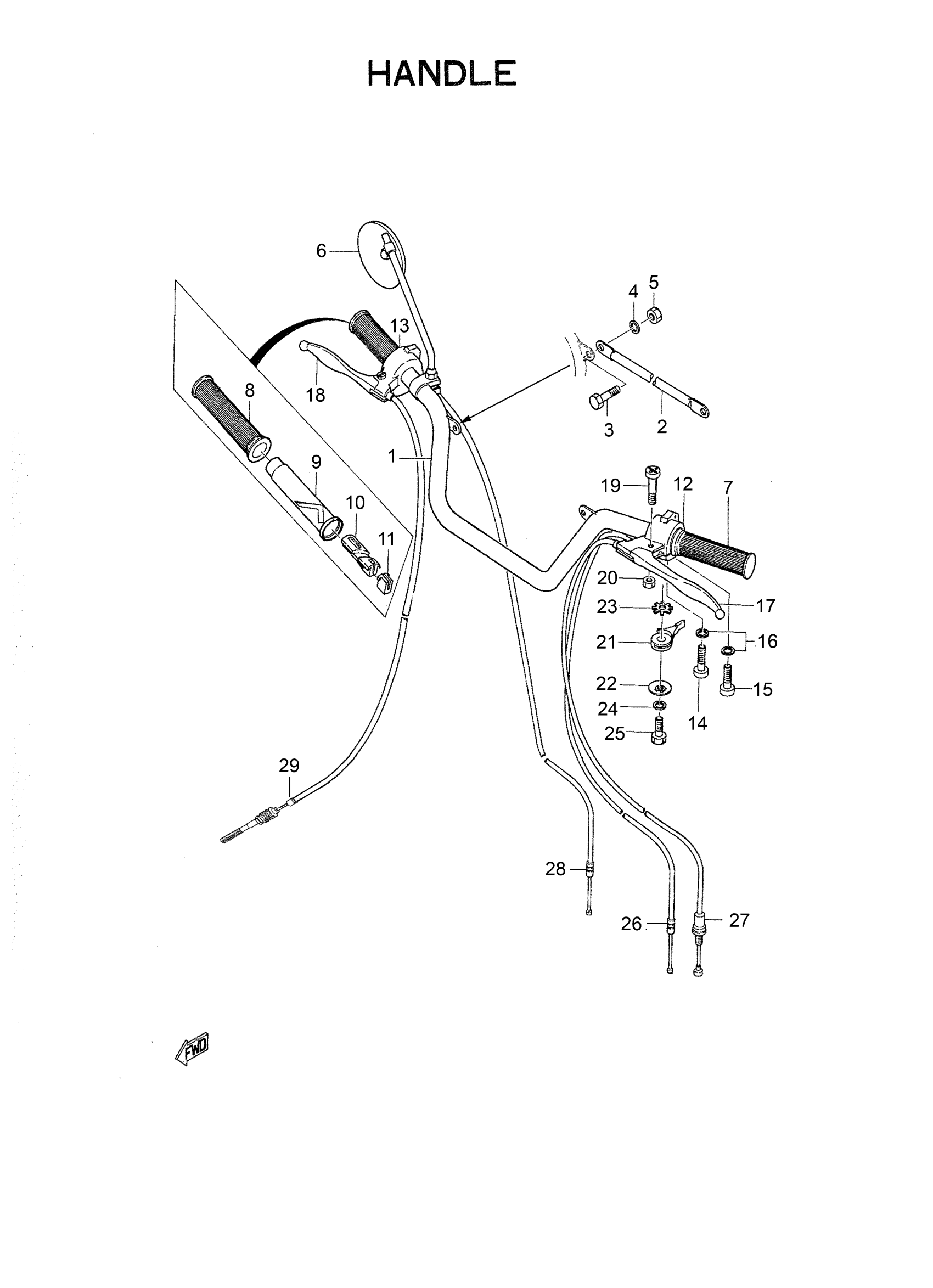

Yamaha MG1T (OMAHA 80) 163 1964 HANDLE AND CABLES Diagram

#

Description
Price

1

HANDLEBAR

125-26111-11-00

Unavailable

2

BAR, TENSION

124-26191-00-00

Unavailable

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

WASHER, SPRING

92995-06100-00

Unavailable

5

NUT, HEXAGON

95380-06600-00

Unavailable

6

MIRROR ASSEMBLY

257-26290-00-00

Unavailable

7

GRIP LH

102-26241-00-00

Unavailable

8

GRIP RH

102-26242-00-00

Unavailable

9

TUBE,THRTL GUIDE

207-26243-00-00

Unavailable

10

SLIDER, THROTTLE

102-26244-00-00

Unavailable

11

STOPPER,CABLE

135-26245-00-00

Unavailable

12

LEVER HOLDER ASSEMBLY 1

124-82710-11-94

Unavailable

13

LEVER HOLDER ASSEMBLY 2

124-82720-10-94

Unavailable

14

SCREW, PAN HEAD

92501-05006-00

Unavailable

15

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

LEVER L

803-83912-00-38

Unavailable

18

. LEVER R

122-83922-01-00

Unavailable

19

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

20

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

21

LEVER, STARTER

103-82941-00-00

Unavailable

22

COVER, STARTER

122-83942-00-00

Unavailable

23

WASHER,SPEC'L SHAP

90209-12115-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

26

CABLE, STARTER 1

124-26331-10-00

Unavailable

27

WIRE, CLUTCH

124-26335-10-00

Unavailable

28

CABLE, THROTTLE 1

124-26311-10-00

Unavailable

29

CABLE, BRAKE

109-26341-10-00

Unavailable
