- MG1T (OMAHA 80) 163 1964
FRONT FORK

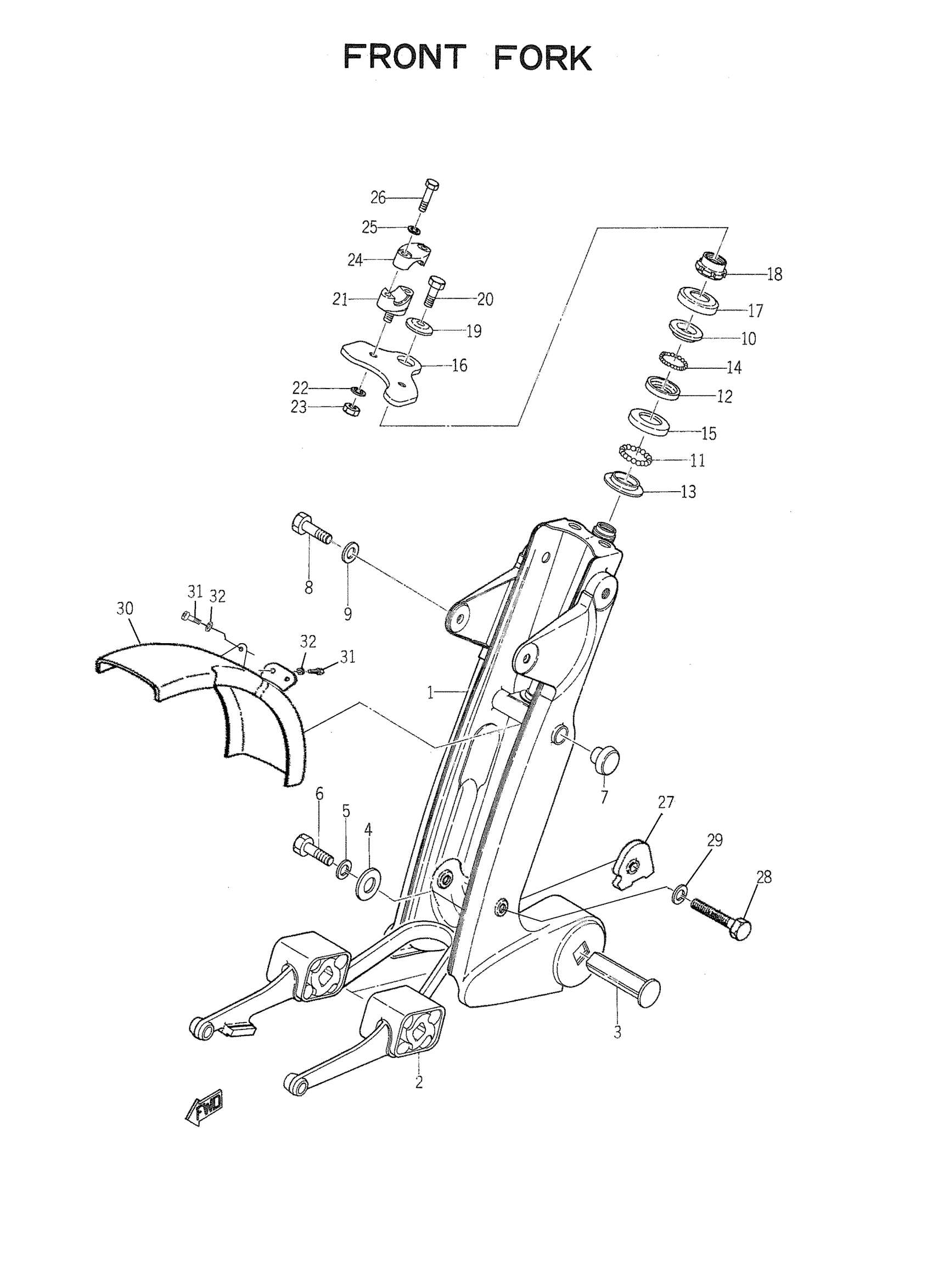

Yamaha MG1T (OMAHA 80) 163 1964 FRONT FORK Diagram
#
1
FRONT FORK COVER ASSEMBLY
163-23310-01-81
Unavailable
2
ARM ASSEMBLY 1
163-23360-00-00
Unavailable
3
STEM, SQUARE
102-23368-00-00
Unavailable
4
WASHER, SQUARE STEM
102-23369-00-00
Unavailable
5
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
6
BOLT, HEXAGON
97013-08016-00
$1.01
7
CAP, SIDE 2
163-2339-00-00
Unavailable
8
BOLT, HEXAGON
97013-08020-00
$1.16
9
WASHER, PLAIN
92990-08200-00
Unavailable
10
RACE, BALL 1
BP2-23411-00-00
$11.49
11
RACE, BALL 1
B6E-23411-00-00
$8.49
12
RACE, BALL 2
BP2-23412-00-00
$7.49
13
RACE, BALL 1
B6E-23411-00-00
$8.49
14
BALL
93503-16003-00
$2.72
15
RACE, BALL 2
B6E-23412-00-00
$13.49
16
CROWN, HANDLE
163-23435-00-34
Unavailable
17
COVER, BALL RACE
122-23416-00-00
Unavailable
18
NUT, FITTING 1
163-23453-00-00
Unavailable
19
WASHER, CROWN
163-23443-00-00
Unavailable
20
BOLT 1222345100
90105-10006-00
Unavailable
21
HOLDER, HANDLE LOWER
122-23442-03-00
Unavailable
22
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
23
NUT, SELF LOCKING
90185-10031-00
Unavailable
24
HOLDER, HANDLE UPPER
462-23441-01-00
Unavailable
25
WASHER, SPRING
92995-06100-00
Unavailable
26
BOLT (682)
97095-06040-00
Unavailable
27
STOPPER
163-2337-00-00
Unavailable
28
BOLT
97014-08040-00
Unavailable
29
WASHER, PLAIN
92990-08200-00
Unavailable
30
FENDER, FRONT
163-21510-00-00
Unavailable
31
BOLT(3JP)
97017-06010-00
Unavailable
32
WASHER, SPRING
92995-06100-00
Unavailable
