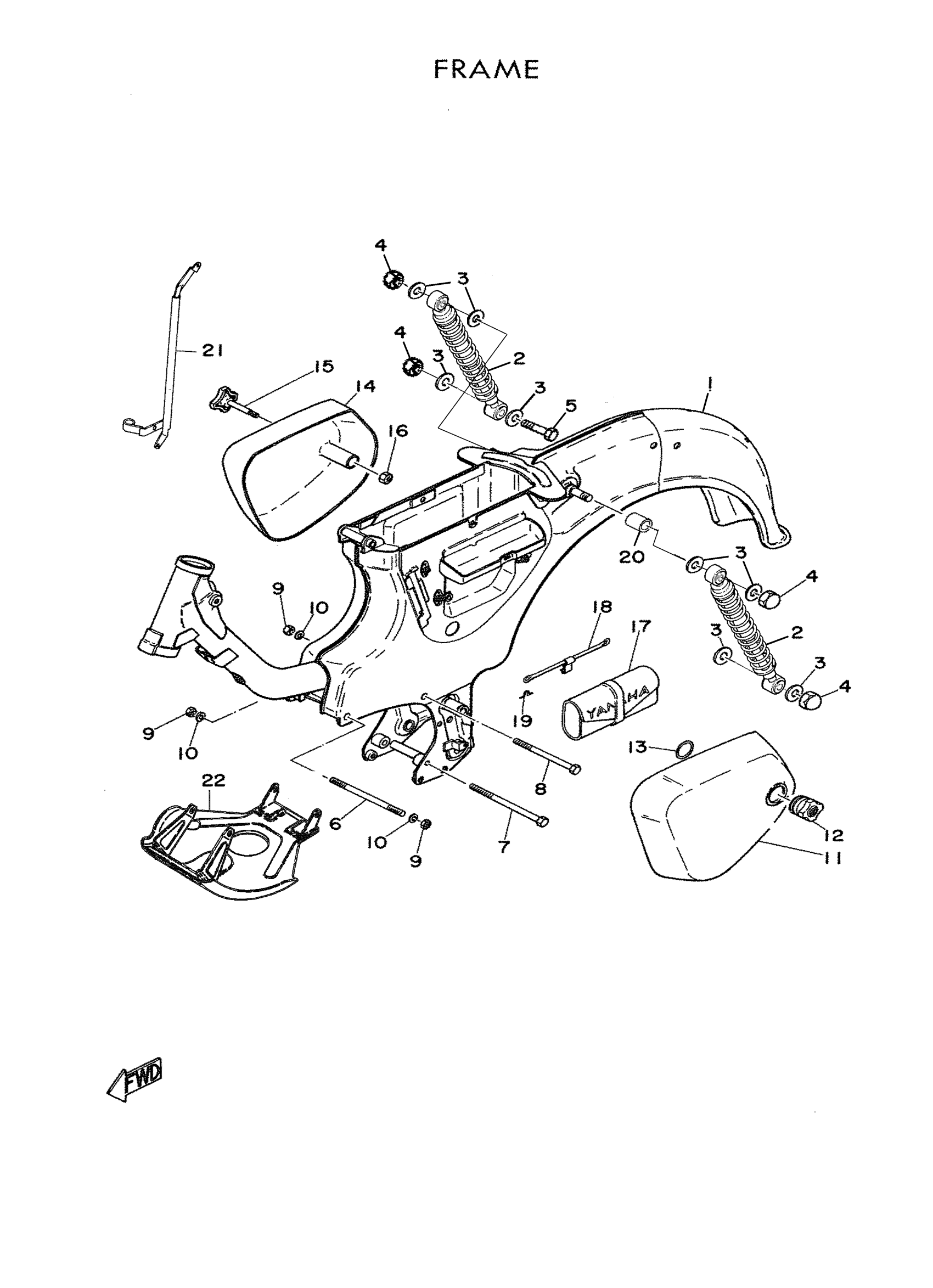

Yamaha MG1T (OMAHA 80) 163 1964 FRAME Diagram
#
Description
Price
1
FRAME
163-21110-00-81
Unavailable
2
SHK/ABS ASSEMBLY, REAR
130-22210-00-00
Unavailable
3
WASHER, PLATE(3BM)
90201-105R9-00
$9.49
4
NUT, CROWN (650)
95380-10800-00
Unavailable
5
BOLT(M35)
90101-10776-00
Unavailable
6
BOLT, MOUNTING
102-21481-00-00
Unavailable
7
BOLT,HEXAGON
97321-08135-00
Unavailable
8
BOLT, FLANGE
95817-08115-00
$8.49
9
NUT(6L2)
95333-08600-00
$2.49
10
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
11
COVER,SIDE 1
102-21711-00-24
Unavailable
11
COVER, SIDE 1
102-21711-00-25
Unavailable
11
COVER, SIDE 1
102-21711-00-36
Unavailable
11
RING, STOP
102-21718-00-00
Unavailable
12
KNOB, SIDE COVER 1
102-21714-00-00
Unavailable
13
RING, STOP
102-21718-00-00
Unavailable
14
COVER, SIDE 2
163-21721-00-24
Unavailable
14
COVER, SIDE 2
163-21721-00-25
Unavailable
14
COVER, SIDE 2
163-21721-00-36
Unavailable
14
WASHER, PLATE
90202-06015-00
Unavailable
15
KNOB,SIDE COVER 2
122-21724-00-00
Unavailable
16
NUT, LATCH CLAMP
102-21713-00-00
Unavailable
17
TOOL KIT
1E7-W2810-00-00
Unavailable
18
BAND
102-21376-00-00
Unavailable
19
PIN
102-21377-00-00
Unavailable
20
COLLAR, DISTANCE
162-22253-00-00
Unavailable
21
GUIDE, WIRE
162-21288-00-00
Unavailable
22
PROTECTOR, ENGINE
163-21471-00-00
Unavailable
