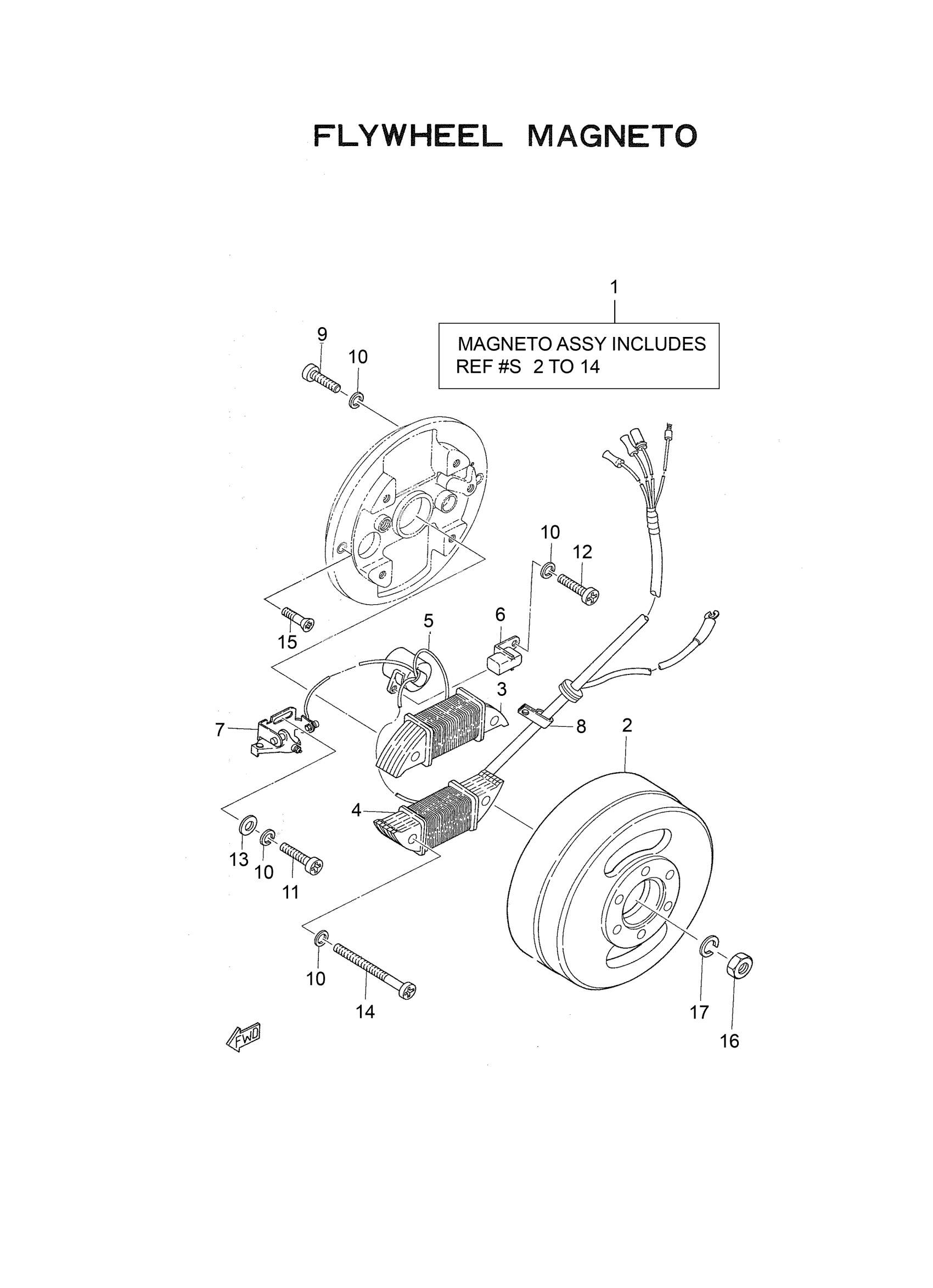

Yamaha MG1T (OMAHA 80) 163 1964 FLYWHEEL MAGNETO Diagram

#

Description
Price

1

FLYWHL MAGNETO ASSEMBLY

110-81300-21-00

Unavailable

2

. ROTOR ASSY

109-81350-20-00

Unavailable

3

COIL, SOURCE

207-81312-20-00

Unavailable

4

COIL, LIGHTING 1

109-81313-20-00

Unavailable

5

. CONDENSER

296-81325-90-00

Unavailable

6

. LUBRICATOR

116-81331-20-00

Unavailable

7

. CONTACT BREAKER ASSY

109-81321-20-00

Unavailable

8

CLAMP, LEAD

104-81328-20-00

$6.99

9

SCREW, PAN HEAD

92503-04008-00

Unavailable

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

SCREW,PAN HEAD

92503-04012-00

Unavailable

12

SCREW, PAN HEAD

92501-04010-00

Unavailable

13

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

14

SCREW, PAN HEAD

92501-04025-00

Unavailable

15

SCREW, FLAT HEAD

92203-05018-00

Unavailable

16

NUT, SELF LOCKING

90185-10031-00

Unavailable

17

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable
