- MG1T (OMAHA 80) 163 1964
CRANKCASE COVER

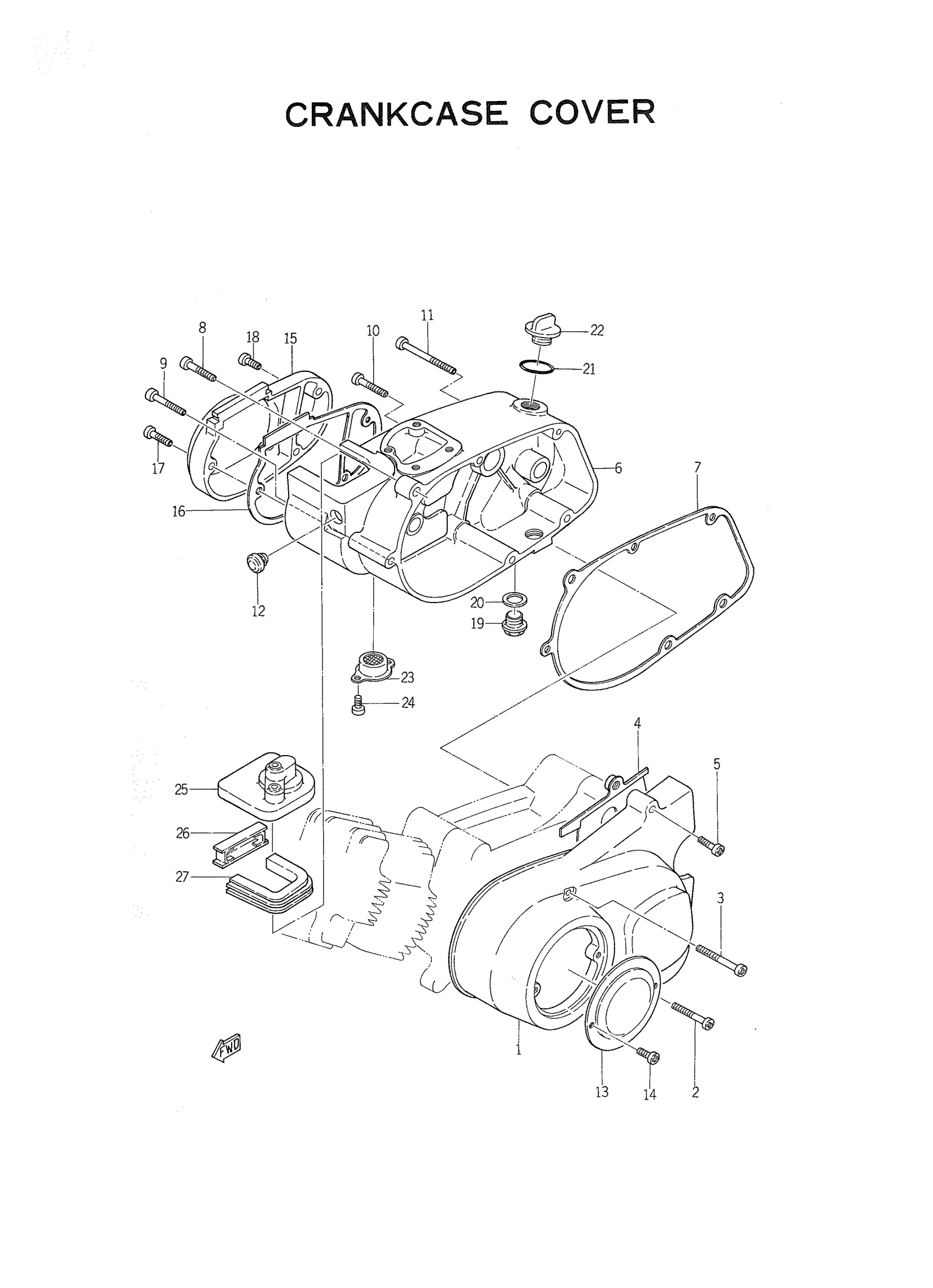

Yamaha MG1T (OMAHA 80) 163 1964 CRANKCASE COVER Diagram
#
1
CRCS COVER ASSEMBLY L
122-15410-02-00
Unavailable
2
SCREW PAN HEAD
98580-06575-00
$12.49
3
SCREW, PAN
98507-06085-00
$6.99
4
COVER, CHAIN CASE
102-15418-00-00
Unavailable
5
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
6
CRCS COVER ASSEMBLY R
122-15420-02-00
Unavailable
7
GASKET, CRCS COVER
102-15451-00-00
Unavailable
8
SCREW PAN HEAD
98580-06040-00
$8.49
9
SCREW PAN HEAD
98580-06545-00
$5.60
10
SCREW PAN HEAD
98580-06550-00
$8.49
11
SCREW PAN HEAD
98580-06575-00
$12.49
12
GROMMET 122154860000
90480-12012-00
$8.49
13
COVER, GENERATOR
123-15415-00-00
Unavailable
14
SCREW, PAN HEAD
92503-04008-00
Unavailable
15
COVER, CARBURETOR
122-15413-00-00
Unavailable
16
GASKET, CARB COVER
122-15453-00-00
Unavailable
17
SCREW, PAN
98507-06014-00
Unavailable
17
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
18
SCREW PAN HEAD
98580-06010-00
Unavailable
19
PLUG, STRAIGHT SCREW
90340-14119-00
Unavailable
20
WASHER, PROTECTOR
4F4-14766-00-00
Unavailable
21
O-RING
93210-22028-00
Unavailable
22
PLUG, OIL
116-15363-00-00
Unavailable
23
CLEANER, DRAIN
126-15433-00-00
Unavailable
24
SCREW, PAN HEAD
92503-04008-00
Unavailable
25
CAP, CARBURETOR
122-14481-00-00
Unavailable
26
HOLDER, GUIDE
122-14459-00-00
Unavailable
27
GUIDE, ELEMENT
122-14458-00-00
Unavailable
28
SCREW, PAN HEAD
98580-06580-00
Unavailable
