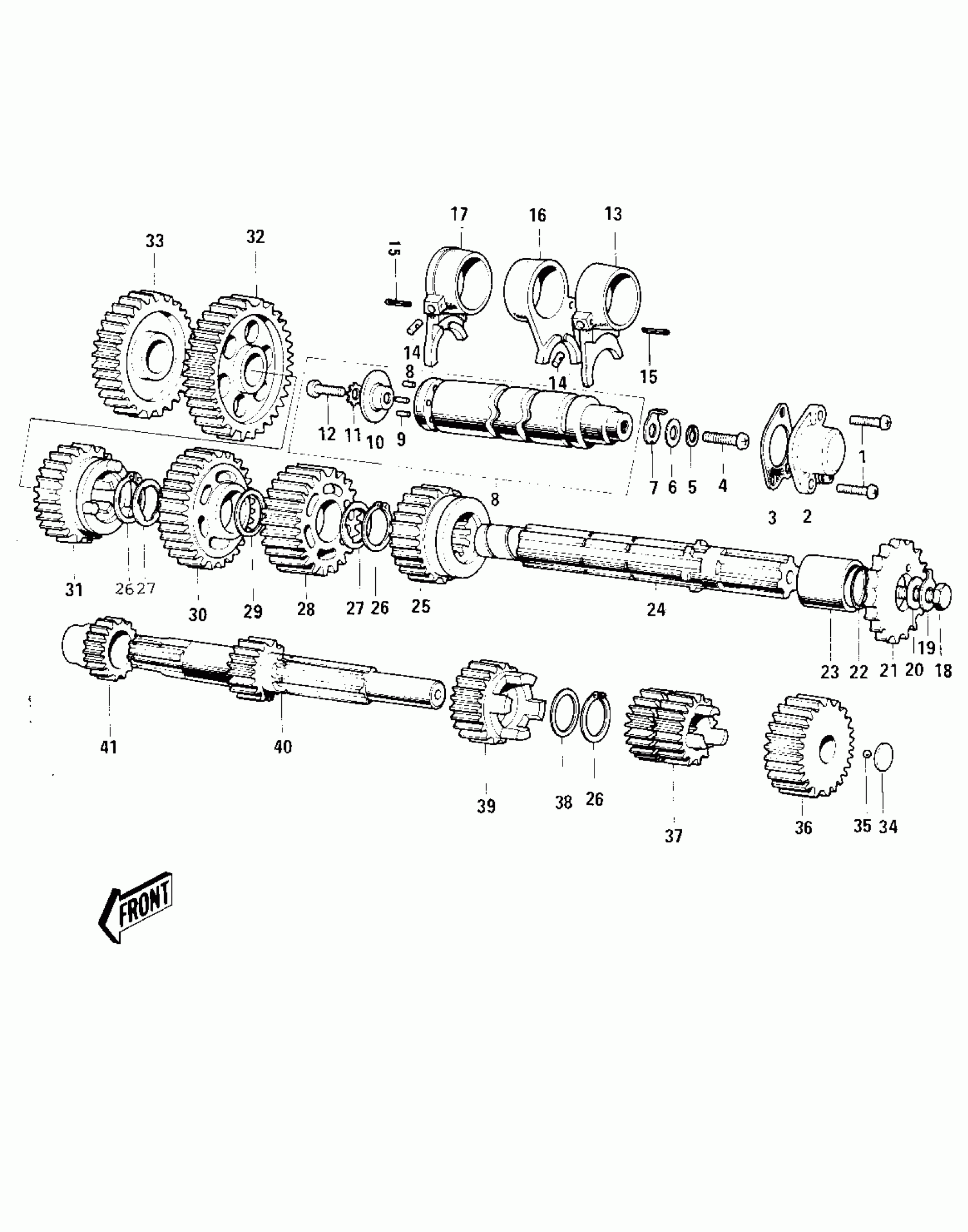

Kawasaki MC1-B TRANSMISSION/CHANGE DRUM ('73-'75 MC1/MC Diagram
#
1
SCREW-PAN-CROS,6X16
220B0616
Unavailable
2
SWITCH-NEUTRAL INDICATOR
13151-004
Unavailable
3
GASKET,NEUTRAL SWITCH
13146-002
Unavailable
4
SCREW-PAN-CROS,6X14
220B0614
Unavailable
5
WASHER SPRING 6MM
461F0600
Unavailable
6
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
7
ROTOR,TOP & NEUTRAL
21007-1003
Unavailable
8
DRUM ASSY-GEAR CHANGE
13239-005
Unavailable
9
PIN,DOWEL,4X15.8
92042-014
Unavailable
10
PLATE CHANGE DRUM PIN
13142-008
Unavailable
11
WASHER LOCK 6MM
464H0600
Unavailable
12
SCREW PAN HEAD 6X12
220B0612
Unavailable
13
FORK SELECTOR 3RD
13140-009
Unavailable
14
PIN SELECT FORK GUIDE
92043-005
Unavailable
15
PIN-COTTER,3.0X20
550D3020
Unavailable
16
FORK SELECTOR 4TH-TOP
13140-017
Unavailable
17
FORK SELECTOR LOW-2ND
13140-010
Unavailable
18
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
19
WASHER,CLAW,8X22X1.2
92030-012
Unavailable
20
WASHER,T=2.3
92022-266
Unavailable
21
SPROCKET-OUTPUT,14T
13144-1058
Unavailable
22
RING-O,17.5X1.5
92055-022
Unavailable
23
COLLAR,ENG NPROCKET
92027-179
Unavailable
24
SHAFT-TRANSMISSION OUTPUT
13128-021
Unavailable
25
TOP GEAR OUTPUT SHAFT
13137-012
Unavailable
26
RING-SNAP,16MM
92033-014
Unavailable
27
WASHER,TOOTHED,18.5X23X1.2
92024-030
Unavailable
28
3RD GEAR OUTPUT SHAFT
13133-005
Unavailable
29
WASHER,THRUST,18.5X23X1.6
92022-146
Unavailable
30
2ND GEAR OUTPUT SHAFT
13131-008
Unavailable
31
GEAR,OUTPUT 4TH,24T
13129-1708
Unavailable
32
GEAR,OUTPUT LOW,35T
13129-010
Unavailable
33
GEAR-SPUR,KICKSTARTER.IDLE,30T
13073-004
Unavailable
34
WASHER,THRUST
92022-115
Unavailable
35
BALL-STEEL,7/32"
600A0700
Unavailable
36
GEAR,INPUT TOP,24T
13129-1927
Unavailable
37
2ND&3RD GEAR,DRIVE
13129-1052
Unavailable
38
WASHER,18.5X23X1.2
92022-118
Unavailable
39
4TH GEAR,DRIVE
13129-1053
Unavailable
40
SHAFT,DRIVE
13127-032
Unavailable
41
GEAR-SPUR,KICKSTARTER PINION
13075-004
Unavailable
