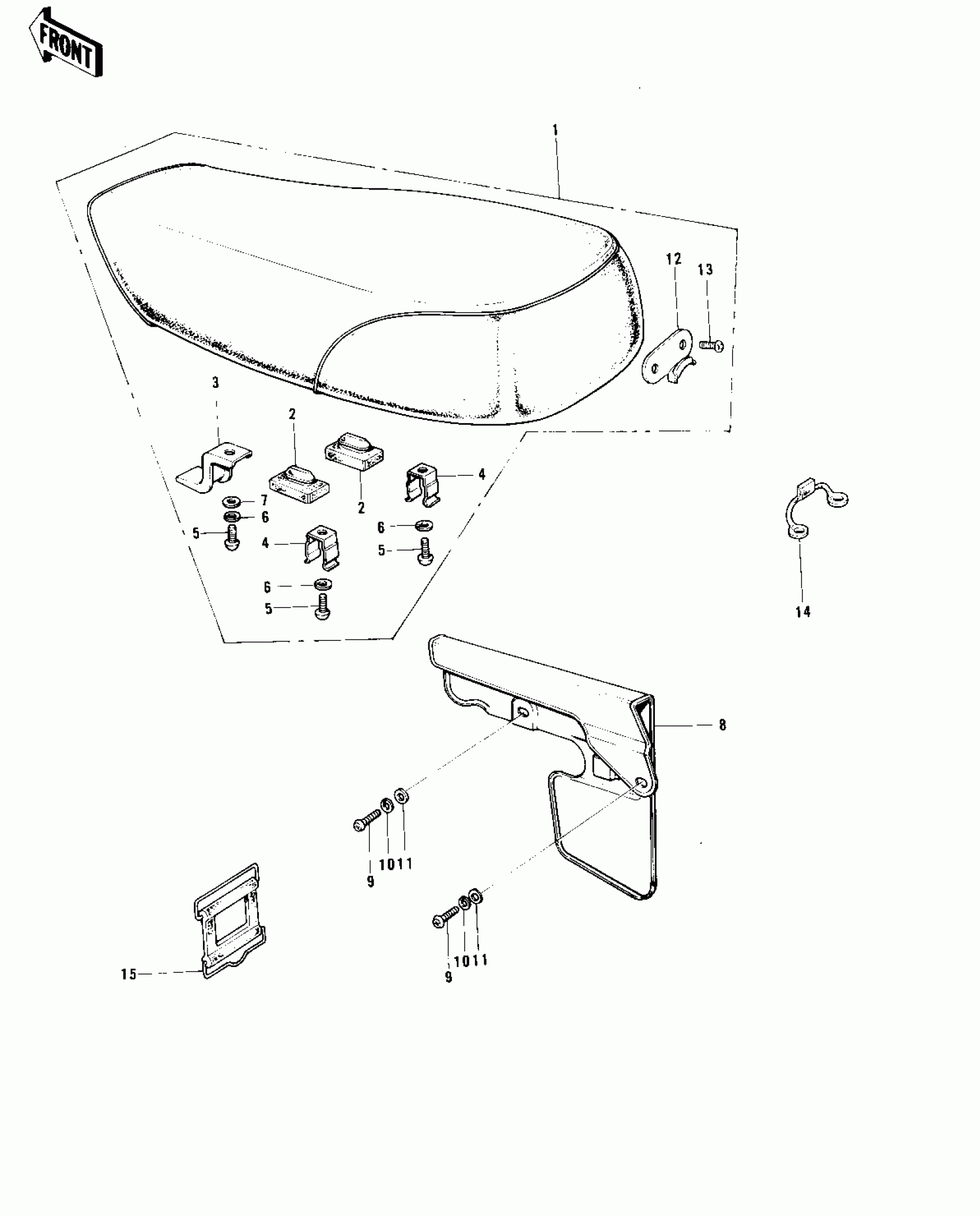

Kawasaki MC1-B SEAT/CHAIN COVER (MC1) Diagram

#

Description

Price

1

SEAT-ASSY

53001-096

Unavailable

3

BRACKET,SEAT

53032-004

Unavailable

4

SPRING,SEAT HOOK

53012-009

Unavailable

5

SCREW PAN HEAD 6X12

220B0612

Unavailable

6

WASHER SPRING 6MM

461F0600

Unavailable

7

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

8

CASE-CHAIN

36014-1024

Unavailable

9

SCREW PAN HEAD 6X12

220B0612

Unavailable

10

WASHER SPRING 6MM

461F0600

Unavailable

11

WASHER PLAIN 6MM

411B0600

Unavailable

12

PLATE,SEAT

53015-004

Unavailable

13

SCREW PAN HEAD 6X14

220E0614

Unavailable

14

BAND,FUEL TANK

92072-049

Unavailable

15

BAND,L=50

92072-066

Unavailable
