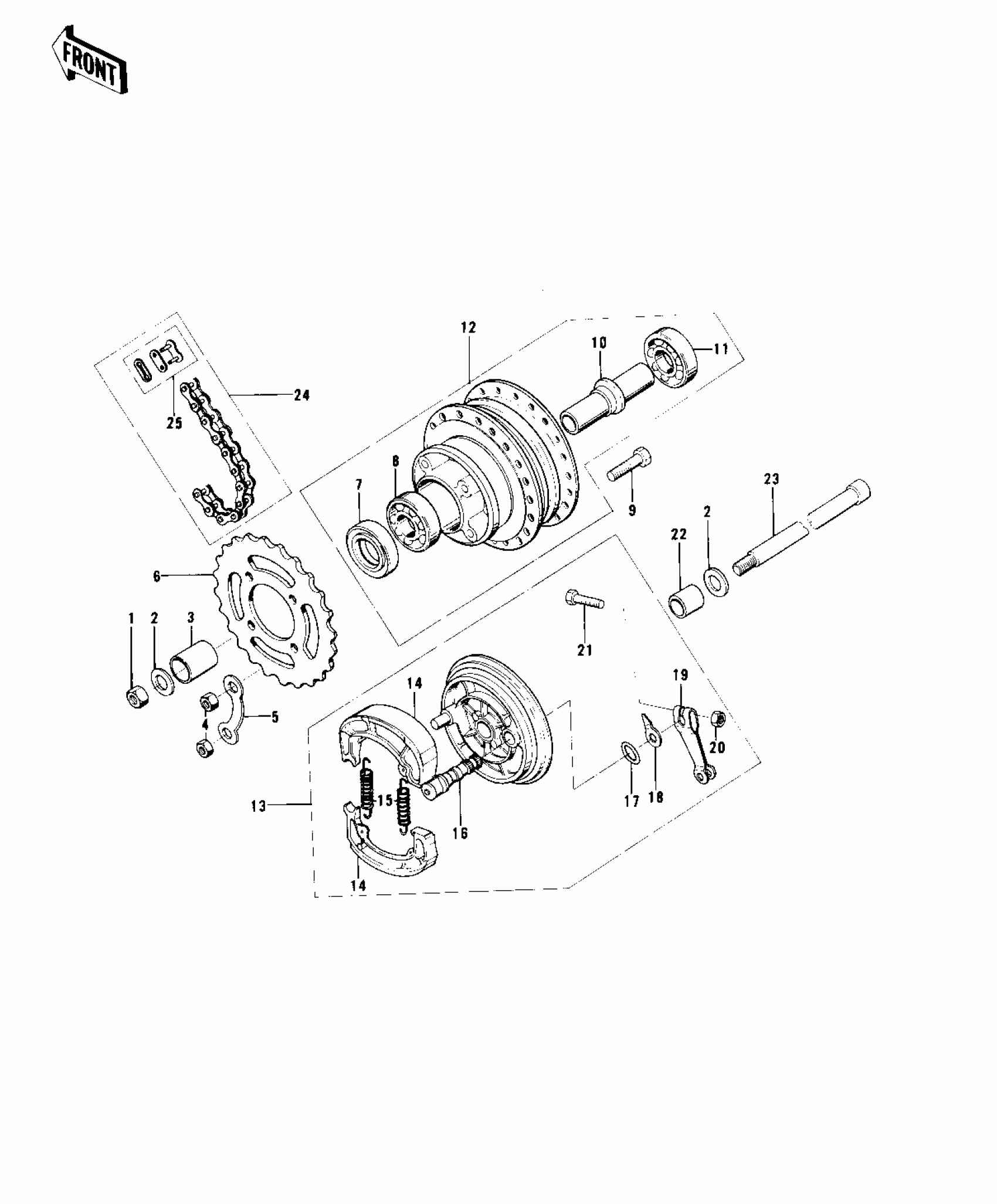

Kawasaki MC1-B REAR HUB/BRAKE /CHAIN Diagram
#
Description
Price
1
NUT-HEX-FINE
314B1200
Unavailable
2
WASHER PLAIN 12MM
411B1200
Unavailable
3
COLLAR,REAR AXLE
42032-044
Unavailable
3
COLLAR-REAR HUB R.H
42032-002
Unavailable
4
NUT,8MM
311B0800
Unavailable
5
WASHER RR SPRCKT LOCK
92088-003
Unavailable
6
REAR SPROCKET 36T
42041-022
Unavailable
6
REAR SPROCKET 34T
42041-019
Unavailable
7
OIL SEAL RR BRK DRUM
92052-001
Unavailable
8
BEARING BALL #6301
601B6301
Unavailable
9
BOLT REAR SPROCKET
92001-021
Unavailable
10
SPACER RR HUB BEARING
42010-003
Unavailable
11
BEARING BALL #6301Z
601B6301Z
Unavailable
12
DRUM-ASSY,RR BRK,BUFF
41034-1002-80
Unavailable
13
PANEL-ASY,RR BRK,BUFF
42006-063-80
Unavailable
14
SHOE-BRAKE
41048-1085
Unavailable
14
SHOE-BRAKE
41048-1085
Unavailable
15
SPRING,BRAKE SHOE
92081-1766
Unavailable
16
CAM-BRAKE
42026-018
Unavailable
17
RING-O,BRAKE CAM
92055-004
Unavailable
18
INDICATOR,BRAKE SHOE
41085-003
Unavailable
19
LEVER,REAR BRAKE PANL
42029-027
Unavailable
20
NUT,6MM
41072-007
Unavailable
21
BOLT-UPSET
112G0630
Unavailable
22
COLLAR,REAR AXLE
42032-043
Unavailable
23
AXLE,12X206
41068-1091
Unavailable
24
CHAIN,DRIVE,EK428 96L
92057-1089
Unavailable
25
JOINT-CHAIN,EK428-G
92058-1014
Unavailable
