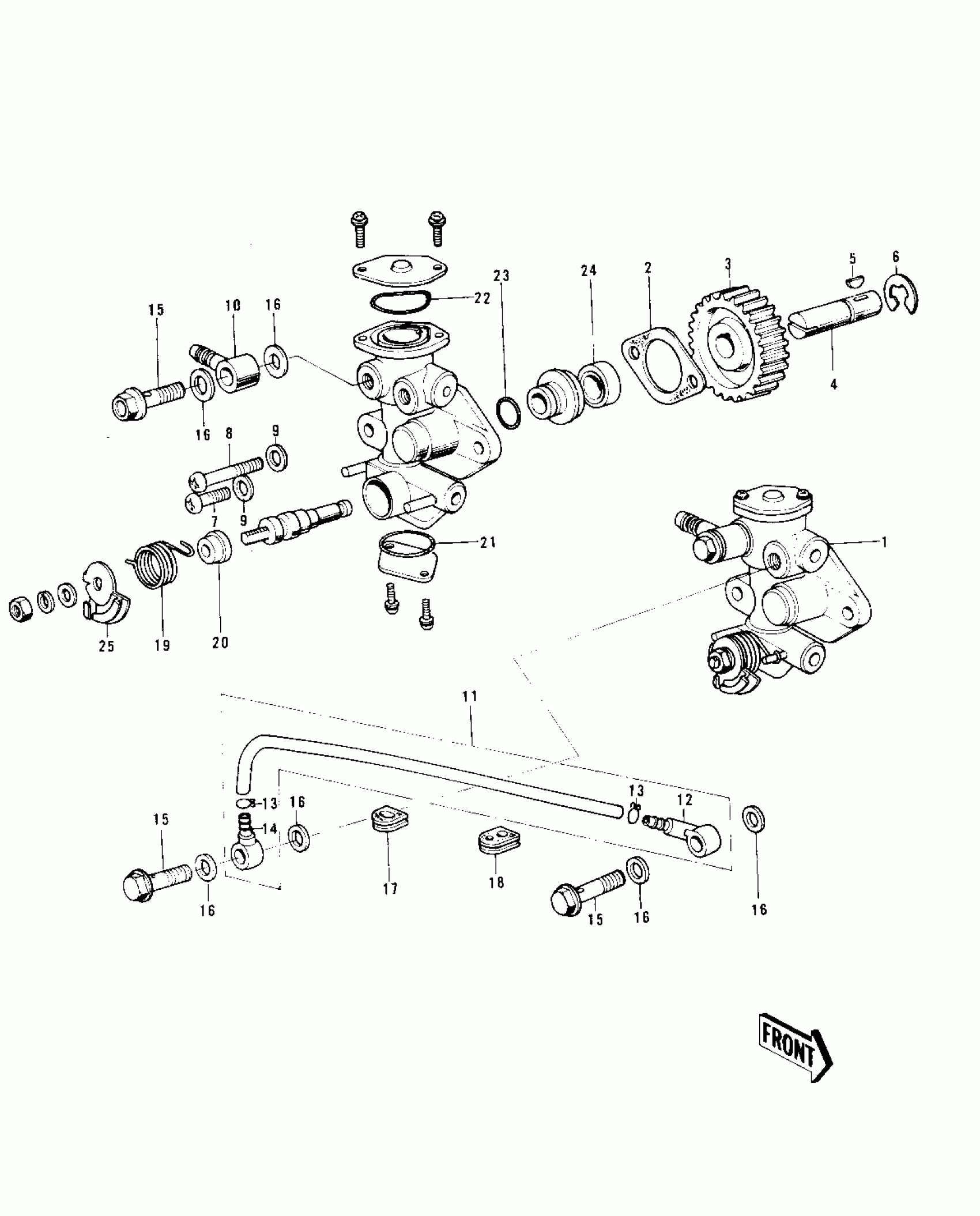

Kawasaki MC1-B OIL PUMP ('74-'75 MC1M/MC1M-A) Diagram

#

Description

Price

1

PUMP-ASSY-OIL

16082-067

Unavailable

2

GASKET,OIL PUMP

11060-1160

Unavailable

3

GEAR,OIL PUMP

16085-004

Unavailable

4

SHAFT,OIL PUMP

16086-001

Unavailable

5

KEY-WOODRUFF

510A3100

Unavailable

6

CIRCLIP-TYPE-E,9MM

482K9000

Unavailable

7

SCREW-PAN-CROS

220B0514

Unavailable

8

SCREW-PAN-CROS

220B0528

Unavailable

9

WASHER,5.5X10.5X0.8

92022-037

Unavailable

10

FITTING,BANJO

92061-009

Unavailable

11

TUBE,OIL

16134-021

Unavailable

12

VALVE-CHECK

16128-009

Unavailable

13

RING-SNAP

92036-022

Unavailable

14

FITTING,BANJO

92061-018

Unavailable

15

BOLT,BANJO,L=16

92060-013

Unavailable

16

WASHER OIL PUMP BANJO

92022-077

Unavailable

17

GROMMET

21017-002

Unavailable

18

GROMMET,OIL PIPE

92071-067

Unavailable

19

SPRING,OIL PUMP LEVER

16093-006

Unavailable

20

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

Unavailable

21

"0" RING,LOWER CAP

16090-003

Unavailable

22

RING-O,CAP,BANJO SIDE

16088-002

Unavailable

23

RING-O,OIL PUMP SHAFT

16090-002

Unavailable

24

SEAL-OIL,OIL PUMP SHAFT

16091-001

Unavailable

25

LEVER-OIL PUMP

16096-012

Unavailable
