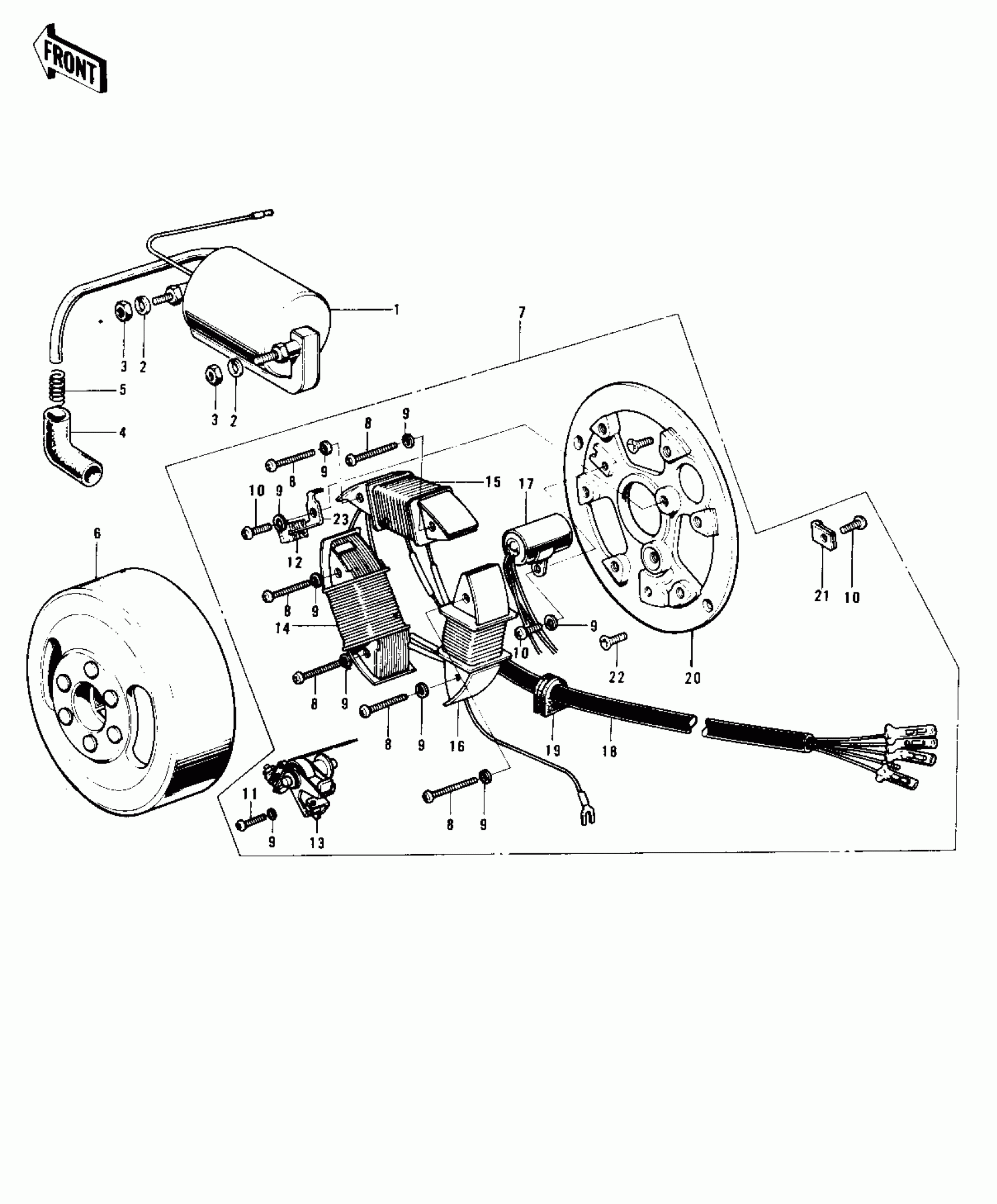

Kawasaki MC1-B IGNITION Diagram
#
Description
Price
1
COIL,IGNITION
21121-1047
Unavailable
2
WASHER SPRING 6MM
461F0600
Unavailable
3
NUT 6MM
311B0600
Unavailable
4
CAP-SPARK PLUG
21130-009
Unavailable
5
TERMINAL,SPARK PLUG CAP
92101-001
Unavailable
6
MAGNETO ASSY
21002-1055
Unavailable
6
FLYWHEEL
21050-017
Unavailable
7
MAGNETO ASSY
21002-1055
Unavailable
7
STATOR ASSY
21003-027
Unavailable
8
SCREW-PAN-CROS
220E0430
Unavailable
9
WASHER SPRING 4MM
461F0400
Unavailable
10
SCREW PAN HEAD 4X6
220B0406
Unavailable
11
SCREW-PAN-CRSOSS,4X1
220B0412
Unavailable
12
BRUSH,OIL
21019-005
Unavailable
13
BREAKER,CONTACT
21008-006
Unavailable
14
COIL PRIMARY
21049-006
Unavailable
14
COIL A,LIGHTING
21047-022
Unavailable
15
COIL LIGHTING A
21047-010
Unavailable
15
COIL-EXCITING
21049-1004
Unavailable
16
COIL LIGHTING B
21047-011
Unavailable
16
COIL A LIGHTING
21047-019
Unavailable
17
CONDENSER
21013-006
Unavailable
18
WIRING HARNESS,MAGNTO
21029-025
Unavailable
18
WIRING HARNESS,MAGNT
21029-031
Unavailable
19
GROMMET
21017-002
Unavailable
20
PLATE-COIL,MAGNETO
21048-1002
Unavailable
20
PLATE-COIL,MAGNETO
21048-1002
Unavailable
21
CLAMP,WIRING HARNESS
21037-002
Unavailable
22
SCREW-CSK-CROS,6X14
221B0614
Unavailable
23
HOLDER,OIL FELT
21038-002
Unavailable
