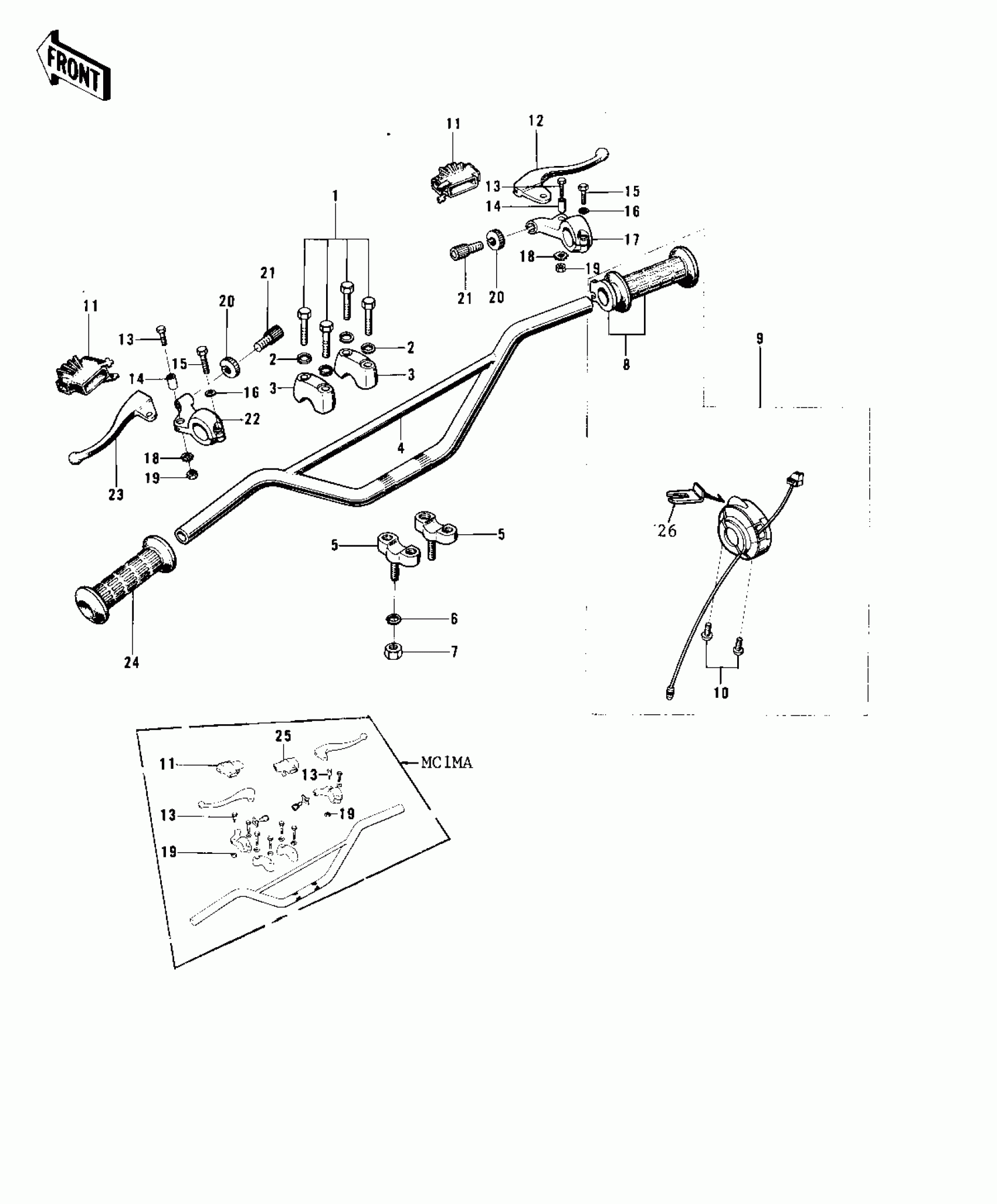

Kawasaki MC1-B HANDLEBAR ('74-'75 MC1M/MC1M-A) Diagram
#
Description
Price
1
BOLT 8X38
92001-1405
Unavailable
2
WASHER SPRING 8MM
461F0800
Unavailable
3
HOLDER-HANDLE,UPP
46012-004
Unavailable
4
HANDLEBAR
46004-024
Unavailable
5
HOLDER,HANDLEBAR,BUFF
46012-002-80
Unavailable
6
WASHER SPRING 10MM
461F1000
Unavailable
7
NUT-HEX-FINE,10MM
314B1000
Unavailable
8
GRIP ASSY-THROTTLE
46019-020
Unavailable
9
CASE ASSY,R.H
46018-036
Unavailable
10
SCREW-PAN-CROS,5X25
220B0525
Unavailable
11
DUST COVER
46071-002
Unavailable
11
BOOT,LEVER HOLDER
49006-1017
Unavailable
12
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
13
BOLT HEX HEAD 5X20
92007-020
Unavailable
13
BOLT,5X22
92007-046
Unavailable
14
COLLAR LEVER
46059-011
Unavailable
15
BOLT,6X22
110N0622
Unavailable
16
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
17
HOLDER-FR BRAKE LEVER
46060-006
Unavailable
18
WASHER LOCK 5MM
464H0500
Unavailable
19
NUT-HEX,5MM
312B0500
Unavailable
19
NUT,LOCK,5MM
92019-014
Unavailable
20
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
21
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
22
HOLDER,CLUTCH LEVER
46094-010
Unavailable
23
LEVER-GRIP,CLUTCH
46092-015
Unavailable
24
RUBBER-L.H.GRIP
46075-018
Unavailable
24
RUBBER-L.H GRIP
46075-019
Unavailable
25
BOOT,LEVER HOLDER
49006-1017
Unavailable
26
HOLDER,CONTROL CABLE
46037-023
Unavailable
