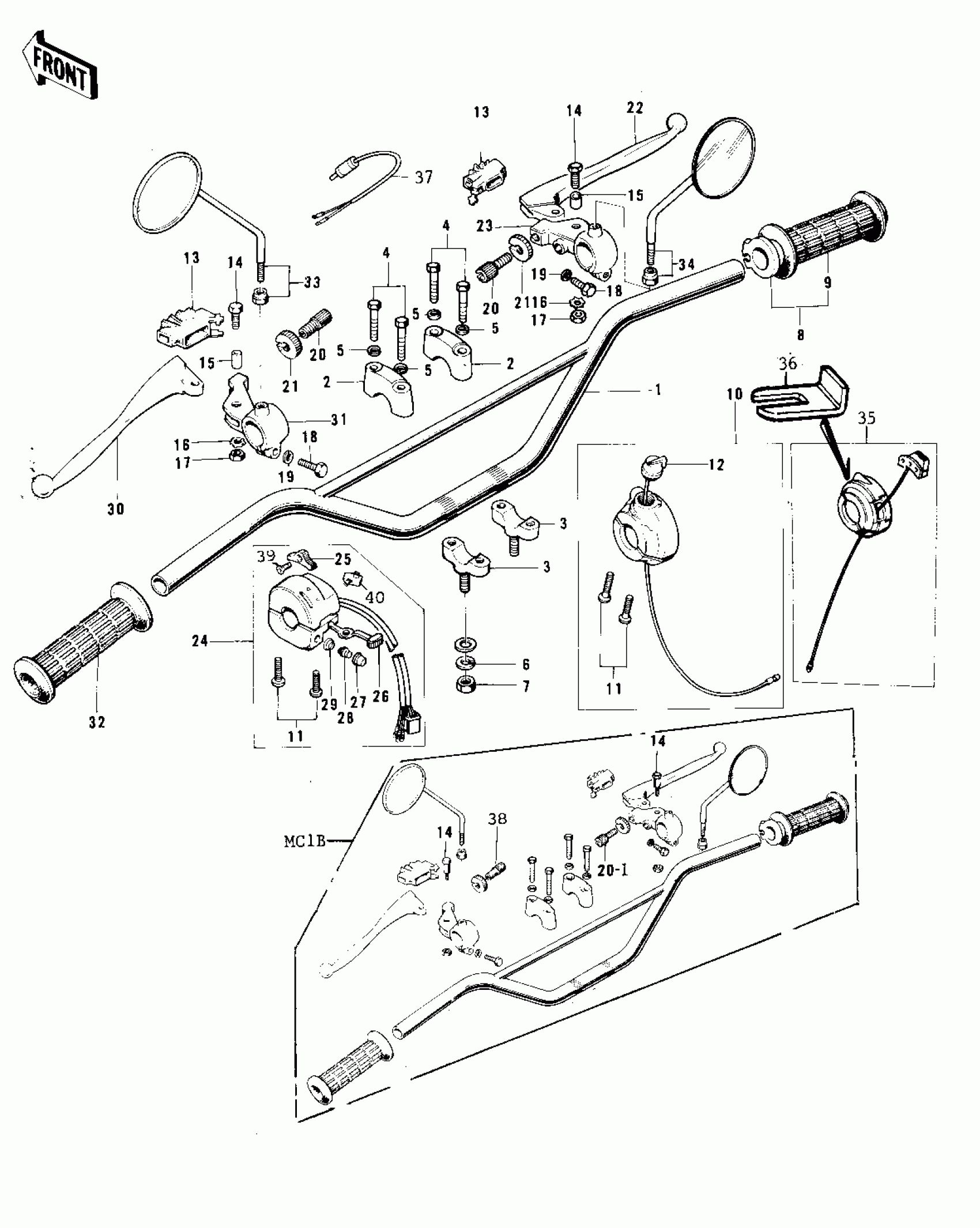

Kawasaki MC1-B HANDLEBAR ('73-'75 MC1/MC1-A/MC1-B) Diagram
#
1
HANDLEBAR
46004-024
Unavailable
2
HOLDER-HANDLE,UPP
46012-004
Unavailable
3
HOLDER,HANDLEBAR,BUFF
46012-002-80
Unavailable
4
BOLT 8X38
92001-1405
Unavailable
5
WASHER SPRING 8MM
461F0800
Unavailable
6
WASHER SPRING 10MM
461F1000
Unavailable
7
NUT-HEX-FINE,10MM
314B1000
Unavailable
8
GRIP ASSY-THROTTLE
46019-020
Unavailable
8
GRIP ASSY,THROTTLE
46019-034
Unavailable
9
RUBBER-R.H. GRIP
46061-013
Unavailable
10
CASE ASSY,R.H,BLACK
46018-020-10
Unavailable
10
CASE ASSY,R.H,BLACK
46018-020-10
Unavailable
11
SCREW-PAN-CROS,5X25
220B0525
Unavailable
12
SWITCH-ENGINE STOP
46027-008
Unavailable
13
DUST COVER
46071-002
Unavailable
13
BOOT,LEVER HOLDER
49006-1017
Unavailable
14
BOLT HEX HEAD 5X20
92007-020
Unavailable
14
BOLT,5MM
92007-039
Unavailable
15
COLLAR LEVER
46059-011
Unavailable
16
WASHER LOCK 5MM
464H0500
Unavailable
17
NUT-HEX,5MM
312B0500
Unavailable
17
NUT,LOCK,5MM
92019-014
Unavailable
18
BOLT HEX HEAD 6X25
110N0625
Unavailable
19
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
20
SCREW,CABLE ADJUST
46055-010
Unavailable
20-1
SCREW,CABLE ADJUST
46055-010
Unavailable
21
NUT LOCK ADJUST SCREW
46056-001
Unavailable
22
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
23
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
Unavailable
23
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
Unavailable
24
CASE ASSY,L.H
46091-016
Unavailable
24
CASE ASSY,L.H
46091-016-10
Unavailable
24
HOUSING-ASSY-CONTROL,LH
46091-040
Unavailable
25, 39
L.H GRIP SWITCH KIT
99990-531
Unavailable
25
KNOB-L.H SWITCH
46044-011
Unavailable
25
KNOB-L.H SWITCH
46044-011
Unavailable
26
KNOB-SWITCH
46044-006
Unavailable
27
SWITCH,PUSH BUTTON
27010-1009
Unavailable
28
SWITCH,PUSH BUTTON
27010-1009
Unavailable
29
SWITCH,PUSH BUTTON
27010-1009
Unavailable
30
LEVER-GRIP,CLUTCH
46092-015
Unavailable
31
HOLDER,F.BLACK
46094-011-21
Unavailable
31
HOLDER,F.BLACK
46094-011-21
Unavailable
32
RUBBER-L.H.GRIP
46075-018
Unavailable
32
RUBBER-L.H GRIP
46075-019
Unavailable
33
MIRROR-ASSY,RH
56002-020
Unavailable
34
MIRROR-ASSY,LH
56003-009
Unavailable
35
CASE ASSY,R.H
46018-036
Unavailable
36
HOLDER,CONTROL CABLE
46037-023
Unavailable
37
SWITCH,FR BRAKE LAMP
27021-004
Unavailable
38
SCREW,CABLE ADJUST,8MM
46055-009
Unavailable
39
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
40
SWITCH L.H
46089-003
Unavailable
40
SWITCH ASSY,L.H
46089-015
Unavailable
