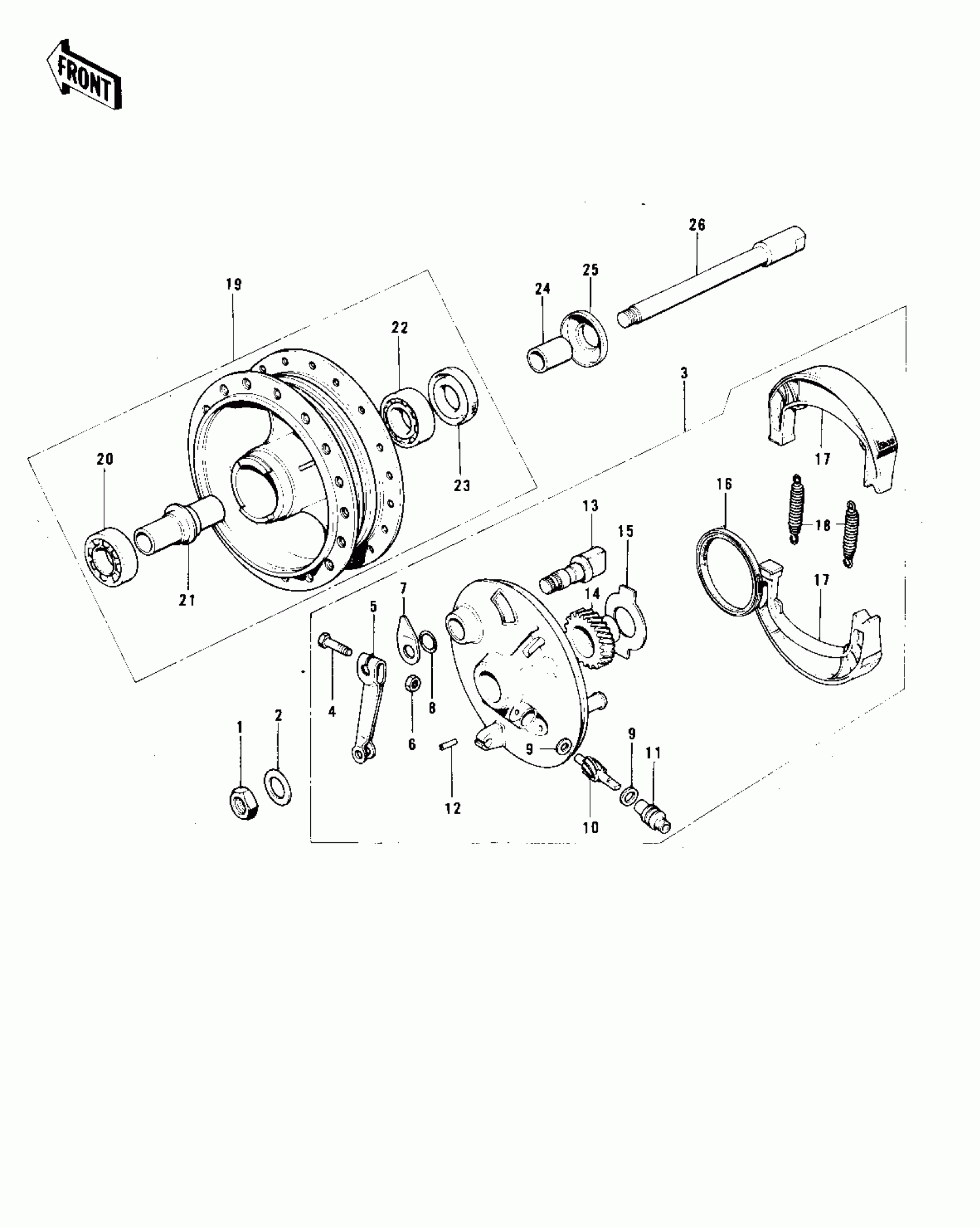

Kawasaki MC1-B FRONT HUB/BRAKE (MC1-A/B) Diagram

#

Description

Price

1

NUT,10MM

42045-005

Unavailable

2

WASHER-PLAIN,10MM

411B1000

Unavailable

3

PANEL-ASY,FR BRK BUFF

41035-058-80

Unavailable

4

BOLT-UPSET

112G0630

Unavailable

5

LEVER-BRAKE CAM

41053-005

Unavailable

6

NUT,6MM

41072-007

Unavailable

7

INDICATOR,BRAKE SHOE

41085-013

Unavailable

8

RING-O,BRAKE CAM

92055-004

Unavailable

9

WASHER,5.1X9X0.4

41063-001

Unavailable

10

PINION-SPEEDOMETER

41060-014

Unavailable

11

BUSHING,SPEEDOMETER CABLE

41062-005

Unavailable

12

PIN,SPRING

41082-001

Unavailable

13

CAM-BRAKE

41050-018

Unavailable

14

GEAR,SPEEDOMETER

41060-1026

Unavailable

15

RECEIVER-SPEEDOMETER

41064-010

Unavailable

16

SEAL-OIL,BRAKE PANEL

92050-002

Unavailable

17

SHOE-BRAKE

41048-1085

Unavailable

17

SHOE-BRAKE

41048-1085

Unavailable

18

SPRING,BRAKE SHOE

92081-1766

Unavailable

19

DRUM-ASSY,FR BRK

41034-1040

Unavailable

20

BEARING BALL #6300Z

601B6300Z

Unavailable

21

COLLAR,L=51

41039-002

Unavailable

22

BEARING BALL #6200

601B6200

Unavailable

23

SEAL-OIL,TC17317

92050-063

Unavailable

24

COLLAR,L=13

41069-026

Unavailable

25

DUST SHIELD FRNT DRUM

41042-002

Unavailable

26

AXLE,FR

41068-039

Unavailable
