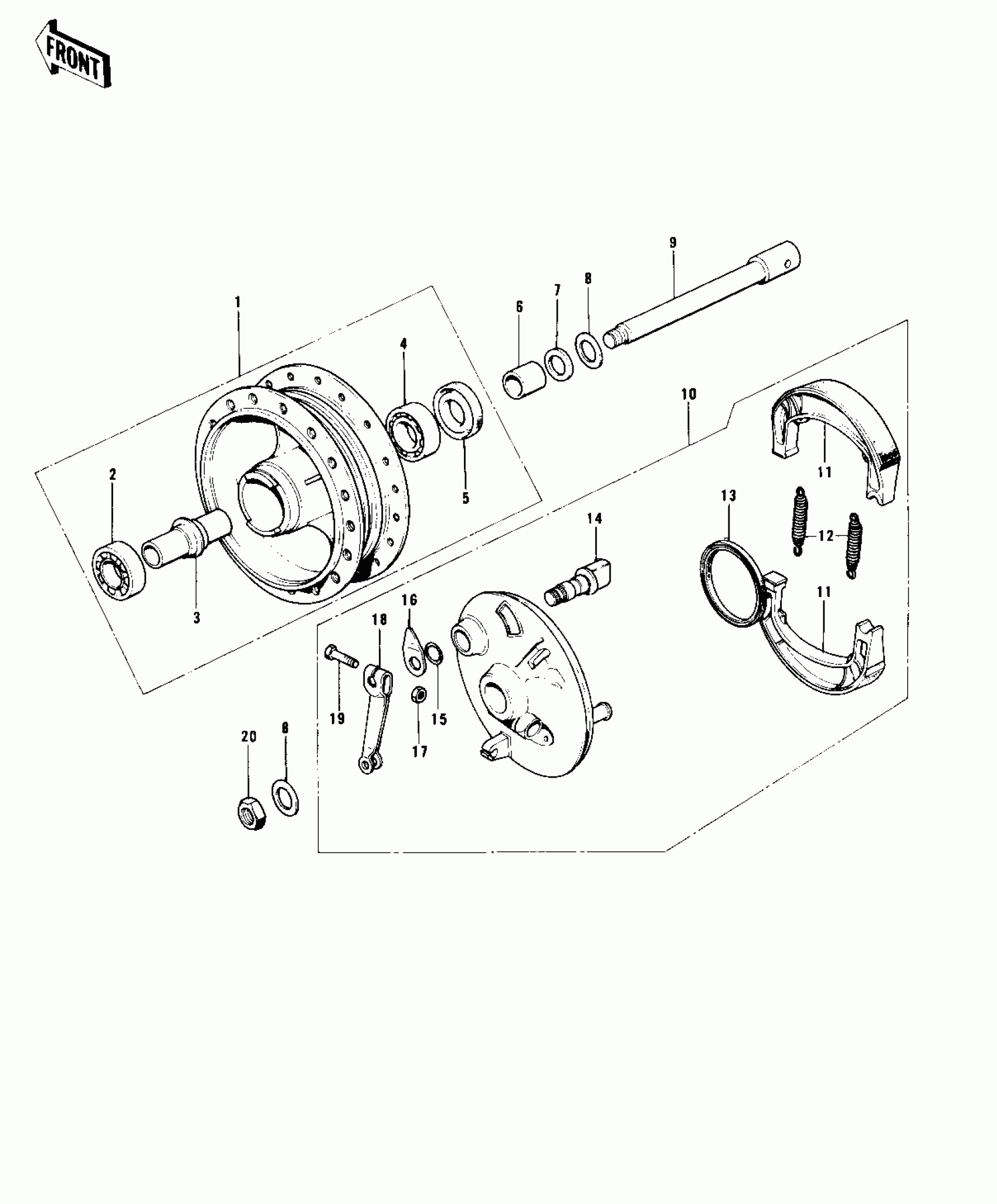

Kawasaki MC1-B FRONT HUB/BRAKE Diagram

#

Description

Price

1

DRUM-ASSY,FR BRK

41034-1040

Unavailable

2

BEARING BALL #6300Z

601B6300Z

Unavailable

3

COLLAR,L=51

41039-002

Unavailable

4

BEARING BALL #6200

601B6200

Unavailable

5

SEAL-OIL,TC17317

92050-063

Unavailable

6

COLLAR,L=13

41069-026

Unavailable

7

DUST SHIELD FRNT DRUM

41042-002

Unavailable

8

WASHER-PLAIN,10MM

411B1000

Unavailable

9

AXLE,FR

41068-039

Unavailable

10

PANEL ASY,FR BK,BUFF

41035-060-80

Unavailable

11

SHOE-BRAKE

41048-1085

Unavailable

12

SPRING,BRAKE SHOE

92081-1766

Unavailable

13

SEAL-OIL,BRAKE PANEL

92050-002

Unavailable

14

CAM-BRAKE

41050-018

Unavailable

15

RING-O,BRAKE CAM

92055-004

Unavailable

16

INDICATOR,BRAKE SHOE

41085-008

Unavailable

17

NUT,6MM

41072-007

Unavailable

18

LEVER-BRAKE CAM

41053-005

Unavailable

19

BOLT-UPSET

112G0630

Unavailable

20

NUT,10MM

42045-005

Unavailable
