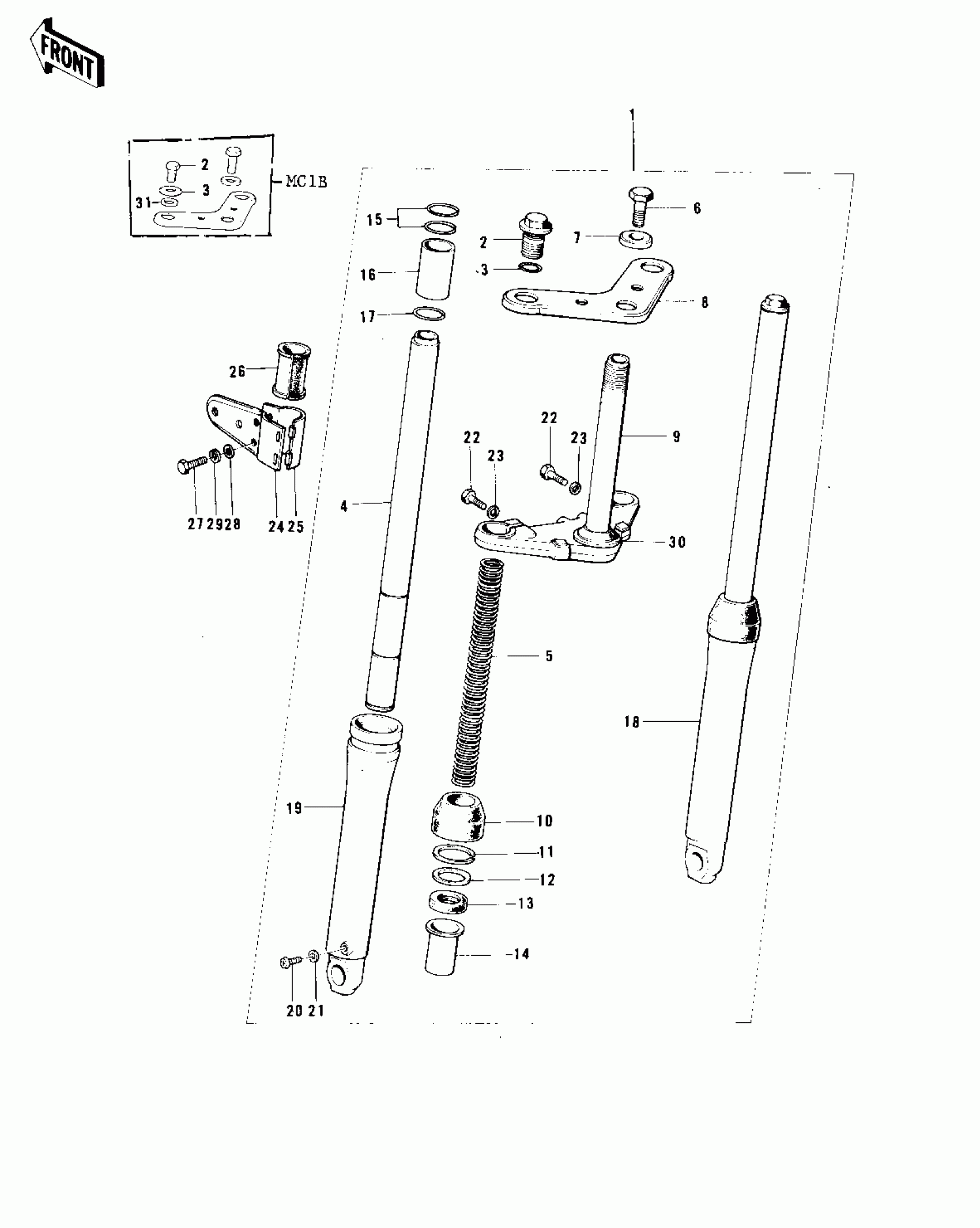

Kawasaki MC1-B FRONT FORK ('73-'75 MC1/MC1-A/MC1-B) Diagram
#
1
FORK-FRONT
44001-143
Unavailable
1
FORK-FRONT
44001-143
Unavailable
1
FORK-FRONT
44001-161
Unavailable
2
BOLT,FORK TOP
44032-010
Unavailable
2
BOLT
92001-1742
Unavailable
3
"0" RING,FORK TOP BLT
44046-020
Unavailable
3-1
WASHER
92022-1381
Unavailable
4
TUBE,FORK INNER
44013-045
Unavailable
4
TUBE,FORK INNER
44013-051
Unavailable
5
SPRING,FORK INNER
44026-051
Unavailable
5
SPRING,FORK
44026-055
Unavailable
6
BOLT-UPSET,10X30
112G1030
Unavailable
7
WASHER
92022-1381
Unavailable
8
HEAD,STEERING
44039-056
Unavailable
9
STEM,STEERING
44037-069
Unavailable
10
DUST SHIELD,FORK
44010-024
Unavailable
11
CIRCLIP,40MM
44044-016
Unavailable
12
WASHER,FORK OUTER TUB
44043-054
Unavailable
13
SEAL-OIL,OUTER TUBE
92049-1075
Unavailable
14
GUIDE,FORK INNER TUBE
44015-016
Unavailable
15
RING,INNER TUBE GUIDE
44020-003
Unavailable
16
PISTON,FORK
44018-007
Unavailable
17
CIRCLIP,FORK PISTON
44044-017
Unavailable
18
TUBE,RH,FORK OUTER
44006-050
Unavailable
19
TUBE,LH,FORK OUTER
44005-052
Unavailable
20
SCREW PAN HEAD 4X6
220B0406
Unavailable
21
GASKET,FORK DRAIN PLUG
44045-046
Unavailable
22
BOLT,HEX HEAD 10X35
92001-1252
Unavailable
23
WASHER SPRING 10MM
461F1000
Unavailable
24
BRACKET,TURN SIGNAL
23064-016
Unavailable
25
BRACKET,TURN SIGNAL
23064-017
Unavailable
26
DAMPER RUBBER,HD LAMP
92075-210
Unavailable
27
BOLT-HEX HEAD,6X18
92007-027
Unavailable
28
WASHER PLAIN 6MM
411B0600
Unavailable
29
WASHER SPRING 6MM
461F0600
Unavailable
30
RACE,LOWER BEARING
92047-004
Unavailable
31
GASKET,FORK TOP BOLT
44045-053
Unavailable
