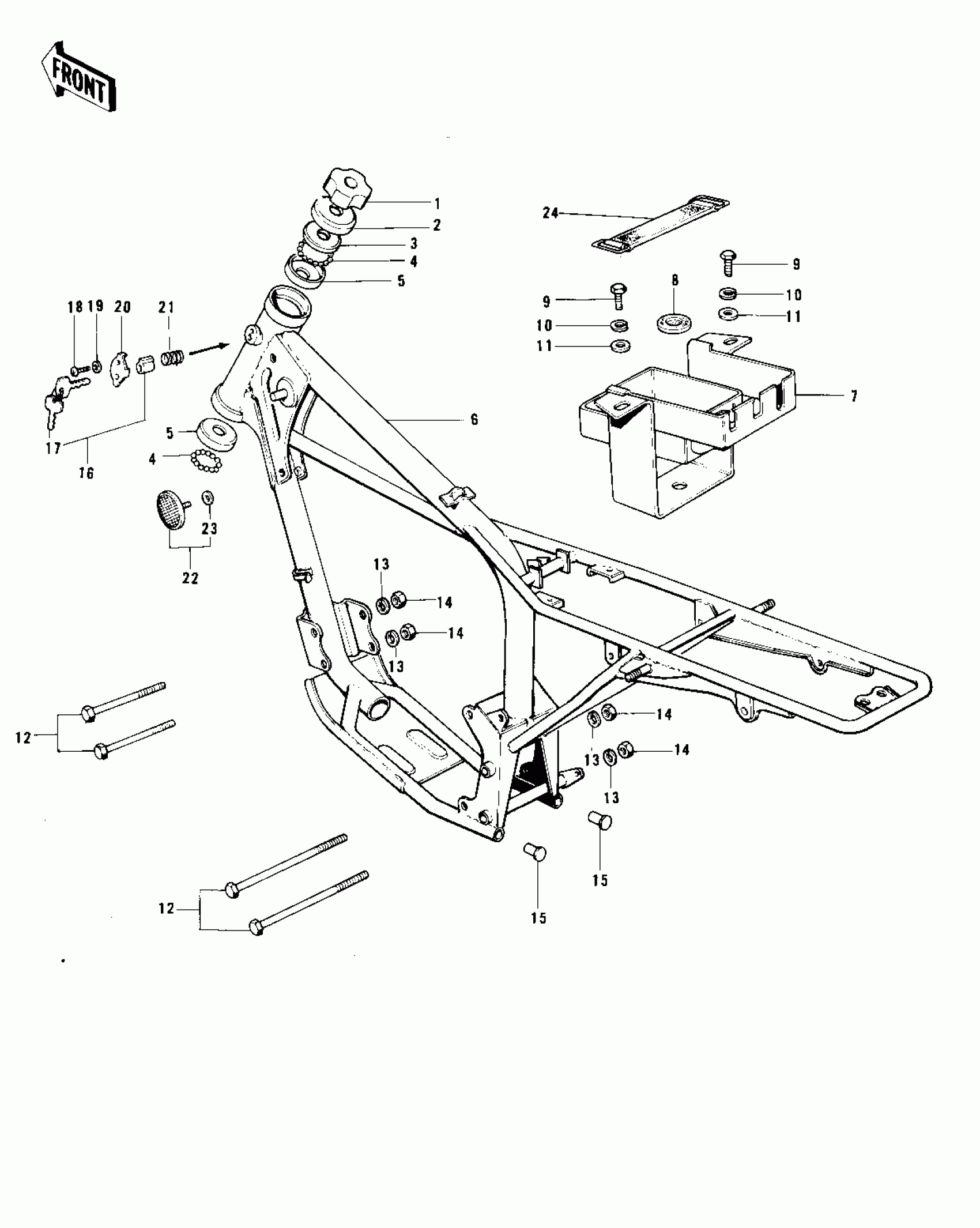

Kawasaki MC1-B FRAME/FRAME FITTINGS ('73-'75 MC1/MC1-A/ Diagram
#
1
NUT STEERING STEM LCK
92090-006
Unavailable
2
CAP,STEERING STEM
46098-004
Unavailable
3
RACE,UPPER BEARING
92047-005
Unavailable
4
BALL-STEEL,3/16
600A0600
Unavailable
5
RACE,BEARING
92048-004
Unavailable
6
FRAME
32002-069
Unavailable
6
FRAME
32002-090
Unavailable
6
FRAME
32002-109
Unavailable
7
CASE,BATTERY
32097-028
Unavailable
8
DAMPER,RUBBER
92075-078
Unavailable
9
BOLT-UPSET,6X12
112G0612
Unavailable
9
BOLT-UPSET,6X12
112G0612
Unavailable
10
WASHER SPRING 6MM
461F0600
Unavailable
11
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
12
BOLT,FLANGED,10X115
92001-1603
Unavailable
13
WASHER SPRING 10MM
461F1000
Unavailable
14
NUT-HEX-FINE,10MM
314B1000
Unavailable
15
CAP PIPE END
32112-001
Unavailable
16
LOCK ASSY-STEERING
27016-029
Unavailable
16
LOCK-ASSY,STEERING
27016-042
Unavailable
17
UNAVAILABLE IN PRICE BOOK
27018-01570
Unavailable
17
KEY SET-STRNG #271
27018-015-71
Unavailable
17
KEY SET-STRNG #272
27018-015-72
Unavailable
17
KEY SET-STRNG #273
27018-015-73
Unavailable
17
KEY SET-STRNG #274
27018-015-74
Unavailable
17
KEY SET,#401
27008-063-01
Unavailable
17
KEY SET,#402
27008-063-02
Unavailable
17
KEY SET,#403
27008-063-03
Unavailable
17
KEY SET,#404
27008-063-04
Unavailable
17
KEY SET,#405
27008-063-05
Unavailable
17
KEY SET,#406
27008-063-06
Unavailable
17
KEY SET,#407
27008-063-07
Unavailable
17
KEY SET,#408
27008-063-08
Unavailable
17
KEY SET,#409
27008-063-09
Unavailable
17
KEY SET,#410
27008-063-10
Unavailable
17
KEY SET,#411
27008-063-11
Unavailable
17
KEY SET,#412
27008-063-12
Unavailable
17
KEY SET,#413
27008-063-13
Unavailable
17
KEY SET,#414
27008-063-14
Unavailable
18
SCREW,3.51MM
92008-007
Unavailable
20
CAP,STEERING LOCK
11012-1134
Unavailable
21
SPRING,STEERING LOCK
27032-001
Unavailable
22
REFLECTOR,REFLEX
28001-026
Unavailable
24
BAND-CHAIN OILER TANK
92072-039
Unavailable
