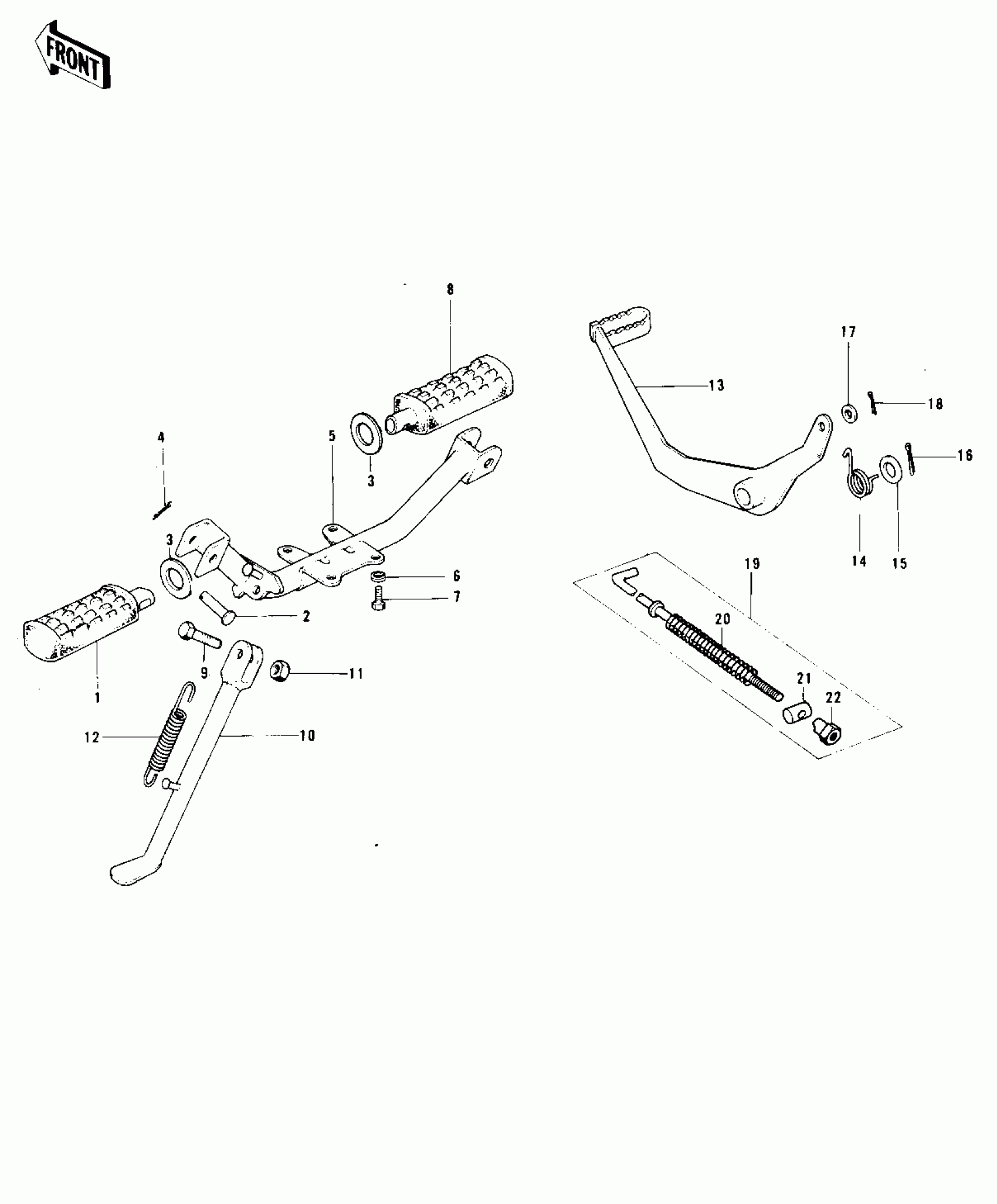

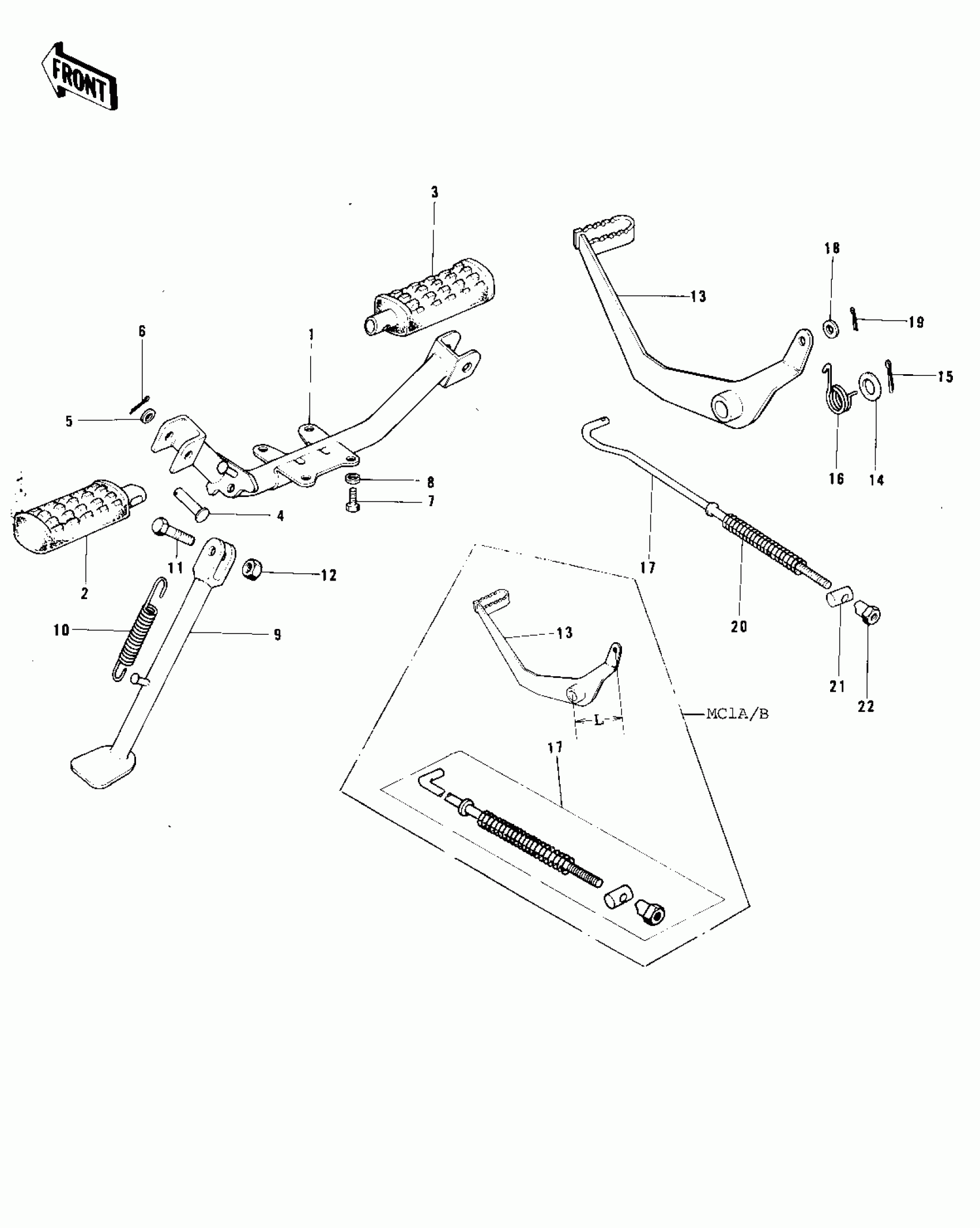

Kawasaki MC1-B FOOTRESTS/STAND/BRAKE PEDAL Diagram
#
Description
Price
1
BAR,FOOTREST
34002-047
Unavailable
2
STEP-ASSY,FR,LH
34027-1114
Unavailable
2
STEP-ASSY,FR,LH
34027-1114
Unavailable
3
STEP-ASSY,FR,RH
34027-1115
Unavailable
3
STEP-ASSY,FR,RH
34027-1115
Unavailable
4
PIN,8X31
92043-080
Unavailable
5
WASHER PL 22.5X36X2.3
92022-204
Unavailable
6
PIN COTTER 2.0X15
550D2015
Unavailable
7
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
8
BOLT HEX HEAD 8X16
116B0816
Unavailable
9
STAND-SIDE
34024-1013
Unavailable
9
STAND-SIDE
34024-1013
Unavailable
10
SPRING MAIN STAND
34023-005
Unavailable
11
BOLT,HEX HEAD,10X25
113G1025
Unavailable
12
NUT-HEX-FINE,10MM
314B1000
Unavailable
13
PEDAL,BRAKE
43001-053
Unavailable
13
PEDAL,BRAKE
43001-062
Unavailable
14
WASHER BRAKE PEDAL
92022-085
Unavailable
15
PIN-COTTER,3.0X30
550D3030
Unavailable
16
SPRING-BRAKE PEDAL
43005-020
Unavailable
17
ROD,BRAKE
43011-024
Unavailable
17
ROD ASSY,BRAKE
43010-019
Unavailable
18
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
19
PIN COTTER 2.0X15
550D2015
Unavailable
20
SPRING,BRAKE ROD
43012-001
Unavailable
21
PIN,BRAKE ROD
92043-039
Unavailable
22
NUT,BRAKE ROD
92015-042
Unavailable
