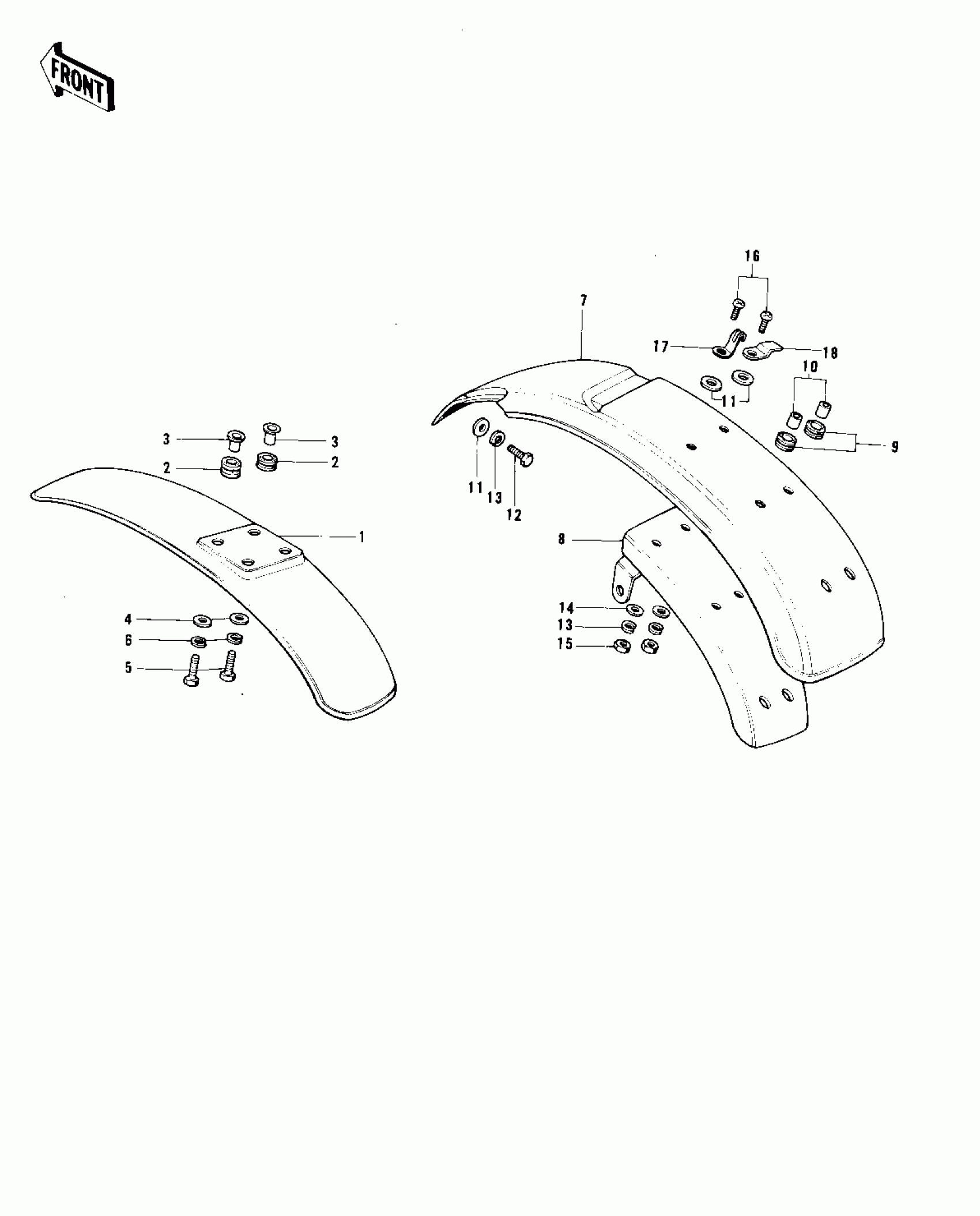

Kawasaki MC1-B FENDERS ('73-'75 MC1/MC1-A/MC1-B) Diagram
#
Description
Price
1
FENDER-FR,BLACK
35004-080-10
Unavailable
1
FENDER-FR,C.BLUE
35004-080-1N
Unavailable
2
DAMPER RUBBER
92075-103
Unavailable
3
COLLAR
92027-153
Unavailable
4
WASHER,6.5X20X1.6
92022-125
Unavailable
5
BOLT-UPSET
112G0618
Unavailable
5
BOLT-UPSET
112G0618
Unavailable
6
WASHER SPRING 6MM
461F0600
Unavailable
7
FENDER-RR
35022-094
Unavailable
7
FENDER-RR,C.BLUE
35022-094-1N
Unavailable
8
GUSSET,REAR FENDER
35034-019
Unavailable
9
DAMPER RUBBER,RR FENR
92075-209
Unavailable
10
COLLAR
92027-169
Unavailable
11
WASHER,6.5X20X1.6
92022-125
Unavailable
12
BOLT-UPSET 6X14
112B0614
Unavailable
12
BOLT-UPSET 6X14
112B0614
Unavailable
13
WASHER SPRING 6MM
461F0600
Unavailable
14
WASHER PLAIN 6MM
411B0600
Unavailable
15
NUT 6MM
311B0600
Unavailable
16
SCREW-PAN-CROS,6X16
220B0616
Unavailable
17
CLIP WIRING HARNESS
35024-002
Unavailable
18
CLAMP CABLE
92037-020
Unavailable
