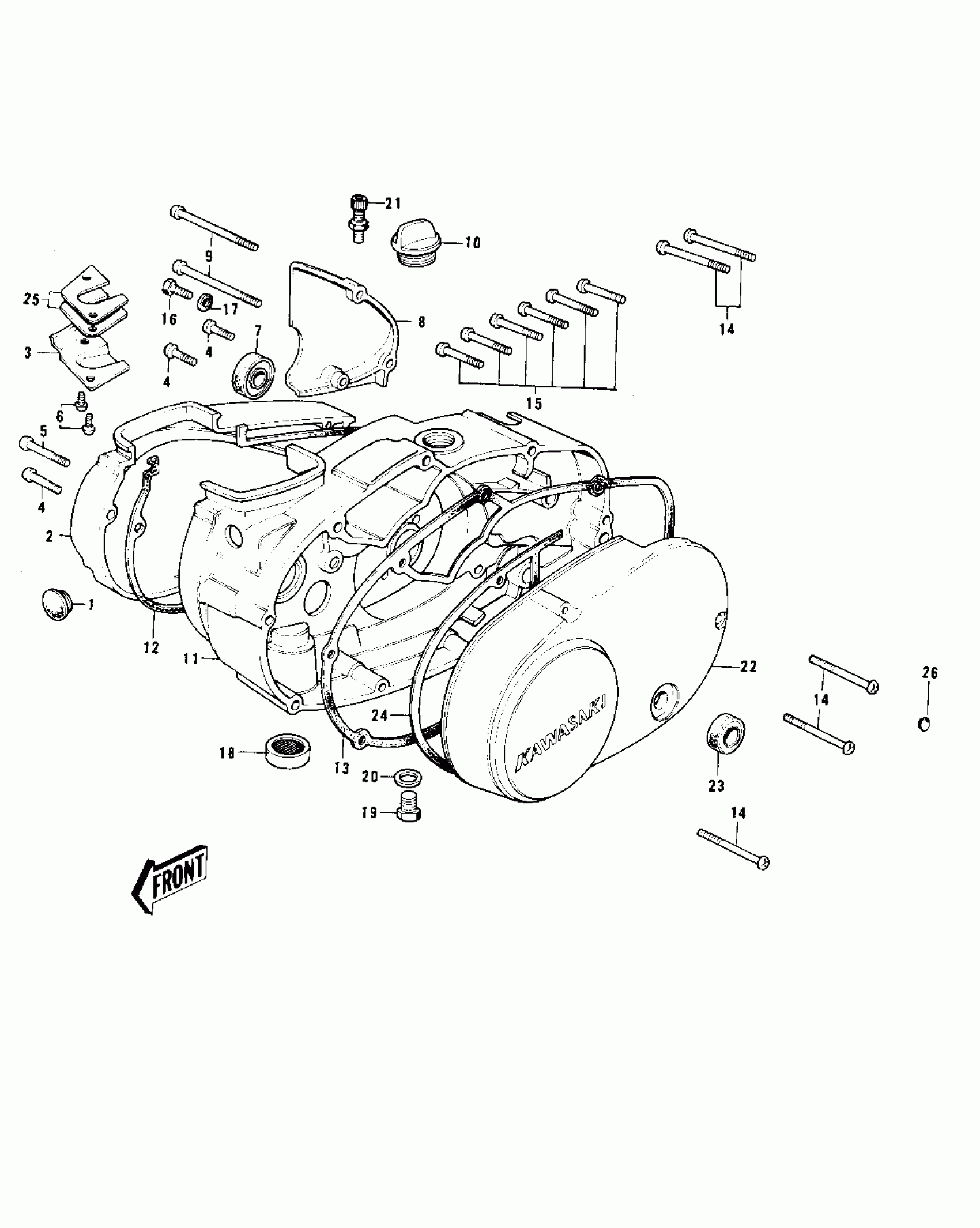

Kawasaki MC1-B ENGINE COVERS ('73-'75 MC1/MC1-A/MC1-B) Diagram
#
1
CAP,RUBBER
14039-001
Unavailable
2
COVER,CARB.L.SILVER
14030-053-75
Unavailable
2
COVER,CARB.L.SILVER
14030-053-75
Unavailable
2
COVER,CARB BARREL
14030-1005
Unavailable
3
COVER,CLUTCH CABLE
14076-005
Unavailable
3
COVER,DRAIN PLUG
14025-1137
Unavailable
4
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
5
SCREW PAN HEAD 6X35
220B0635
Unavailable
6
SCREW-PAN-CROS,6X16
220B0616
Unavailable
7
OIL SEAL TB14257
653B142507
Unavailable
8
COVER,OIL PUMP,L.SILV
14030-050-75
Unavailable
8
COVER,OIL PUMP,BUFF
14030-050-80
Unavailable
9
SCREW-PAN-CROS,6X75
220B0675
Unavailable
10
CAP-OIL FILLER
16115-018
Unavailable
11
COVER-CLUTCH,SILVER
14032-1025
Unavailable
11
COVER-CLUTCH,SILVER
14032-1025
Unavailable
11
COVER,R.H,ENG,BARREL
14032-1017
Unavailable
12
GASKET,CARBURETOR COVER
11060-1201
Unavailable
13
GASKET,CLUTCH COVER
11060-1198
Unavailable
14
SCREW PAN HEAD 6X45
220B0645
Unavailable
15
SCREW PAN HEAD 6X30
220B0630
Unavailable
16
BOLT,HEX HEAD,6X14
92001-121
Unavailable
17
WASHER OIL PUMP BANJO
92022-077
Unavailable
18
PLUG,25X12
16116-006
Unavailable
19
PLUG,DRAIN,10X12
92067-001
Unavailable
20
GASKET,10.5X16X1
92065-058
Unavailable
21
ADJUSTER-CABLE
16002-012
Unavailable
22
COVER,L.H ENG,SILVER
14031-078-75
Unavailable
22
COVER,L.H ENG,SILVER
14031-078-75
Unavailable
22
COVER,L.H ENG.BUFF
14031-078-80
Unavailable
23
SEAL-OIL,SB12205
92049-004
Unavailable
24
GASKET,L.H ENG COTER
14045-019
Unavailable
24
GASKET,GENERATOR COVER
11060-1202
Unavailable
25
SPACER,CL CABLE COVER
92026-096
Unavailable
26
PLUG,RUBBER
92074-019
Unavailable
