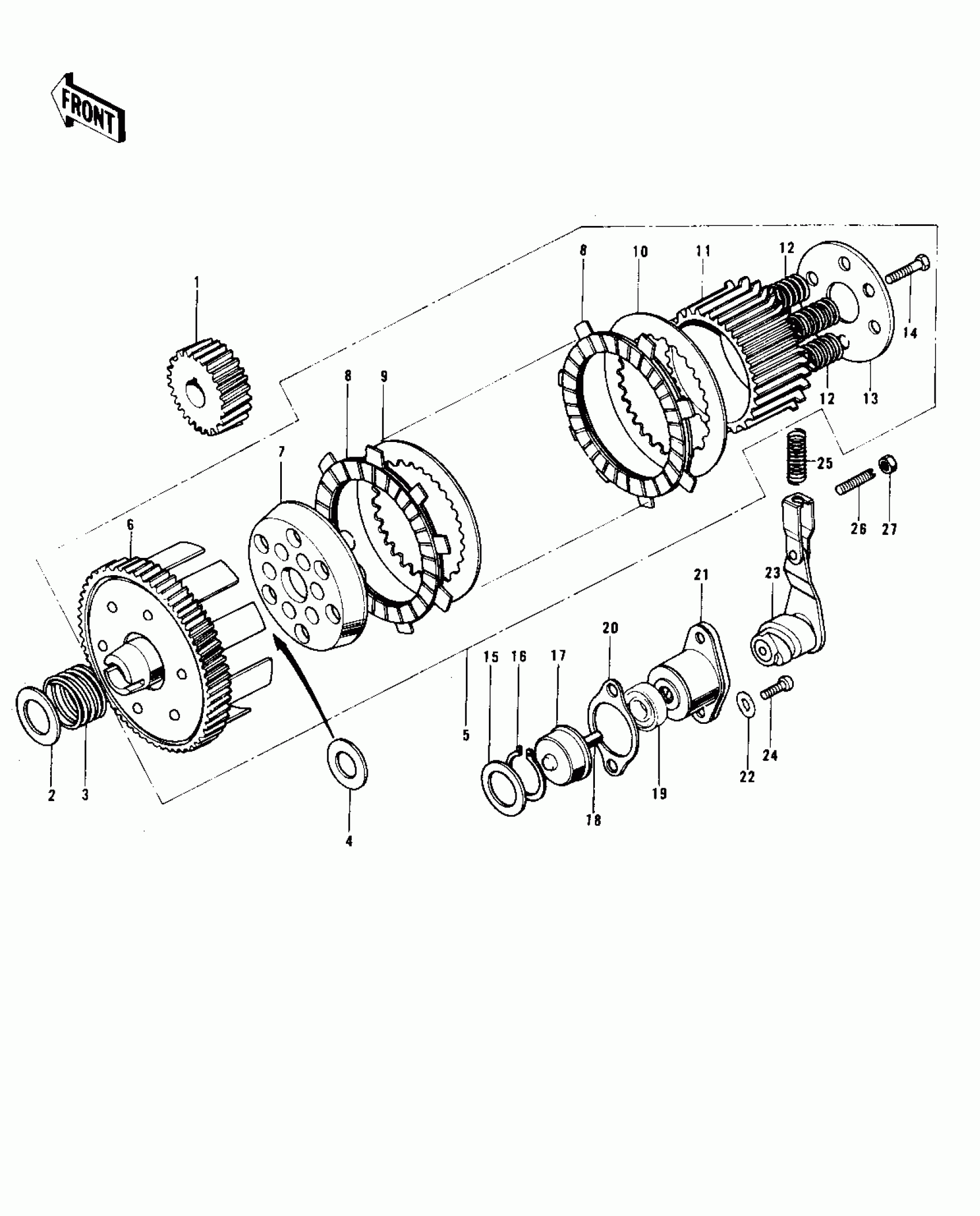

Kawasaki MC1-B CLUTCH ('74-'75 MC1M/MC1M-A) Diagram

#

Description

Price

1

PINION,PRIMARY

13121-032

Unavailable

2

WASHER,25.5X36X1

92022-057

Unavailable

3

SPRING,CLUTCH DAMPER

92081-015

Unavailable

4

WASHER,16.5X27X1.4

92022-054

Unavailable

5

CLUTCH-ASSY

13081-028

Unavailable

6

HOUSING-COMP-CLUTCH

13095-022

Unavailable

7

WHEEL-CLUTCH

13086-1002

Unavailable

8

PLATE-FRICTION

13088-1103

Unavailable

9

PLATE-CLUTCH,STEEL

13089-1009

Unavailable

10

PLATE CLUTCH OUTER

13090-004

Unavailable

11

HUB-CLUTCH

13087-1011

Unavailable

12

SPRING,CLUTCH

92081-012

Unavailable

13

HOLDER,CLUTCH SPRING

13091-1115

Unavailable

14

BOLT-UPSET

112G0516

Unavailable

15

WASHER,THRUST,16.5X21X0.8

92022-053

Unavailable

16

CIRCLIP-TYPE-C,16MM

480J1600

Unavailable

17

PUSHER-COMP-CLUTCH

13113-003

Unavailable

18

PIN,DOWEL,7X14

610A0714

Unavailable

19

SEAL-OIL

92050-071

Unavailable

20

GASKET,CLUTCH RELEASE

11060-1197

Unavailable

21

RELEASE-ASSY-CLUTCH

13231-1008

Unavailable

22

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

23

RELEASE-ASSY-CLUTCH

13231-1008

Unavailable

24

SCREW-PAN-CROS,6X16

220B0616

Unavailable

25

SPRING,CLUTCH RELEASE

92081-096

Unavailable

26

SCREW SLOTTED

291Z0625

Unavailable

27

NUT 6MM

311B0600

Unavailable
