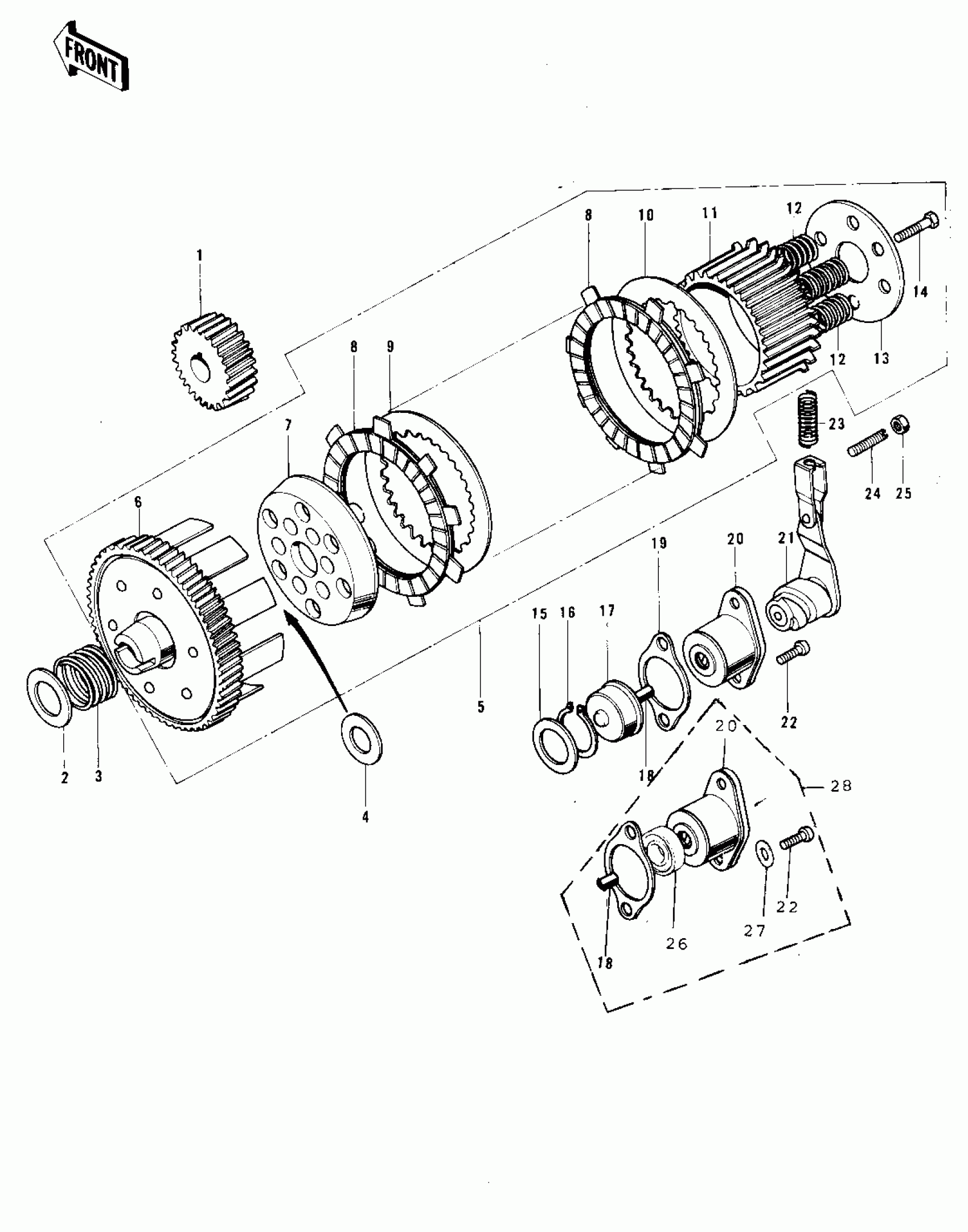

Kawasaki MC1-B CLUTCH ('73-'75 MC1/MC1-A/MC1-B) Diagram
#
Description
Price
1
PINION,PRIMARY
13121-032
Unavailable
2
WASHER,25.5X36X1
92022-057
Unavailable
3
SPRING,CLUTCH DAMPER
92081-015
Unavailable
4
WASHER,16.5X27X1.4
92022-054
Unavailable
5
CLUTCH-ASSY
13081-028
Unavailable
6
HOUSING-COMP-CLUTCH
13095-022
Unavailable
7
WHEEL-CLUTCH
13086-1002
Unavailable
8
PLATE-FRICTION
13088-1103
Unavailable
9
PLATE-CLUTCH,STEEL
13089-1009
Unavailable
10
PLATE CLUTCH OUTER
13090-004
Unavailable
11
HUB-CLUTCH
13087-1011
Unavailable
12
SPRING,CLUTCH
92081-012
Unavailable
13
HOLDER,CLUTCH SPRING
13091-1115
Unavailable
14
BOLT-UPSET
112G0516
Unavailable
15
WASHER,THRUST,16.5X21X0.8
92022-053
Unavailable
16
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
17
PUSHER-COMP-CLUTCH
13113-003
Unavailable
18
PIN DOWEL 7X10
610A0710
Unavailable
18
PIN,DOWEL,7X14
610A0714
Unavailable
19
GASKET,CLUTCH RELEASE
11060-1197
Unavailable
20
RELEASE SET,CLUTCH
13231-013
Unavailable
20
RELEASE-ASSY-CLUTCH
13231-1008
Unavailable
21
RELEASE-ASSY-CLUTCH
13231-1008
Unavailable
22
SCREW-PAN-CROS,6X16
220B0616
Unavailable
23
SPRING,CLUTCH RELEASE
92081-096
Unavailable
24
SCREW SLOTTED 6X28
291Z0628
Unavailable
24
SCREW SLOTTED 6X28
291Z0628
Unavailable
24
SCREW SLOTTED
291Z0625
Unavailable
25
NUT 6MM
311B0600
Unavailable
26
SEAL-OIL
92050-071
Unavailable
27
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
27
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
28
RELEASE SET,CLUTCH
13231-013
Unavailable
