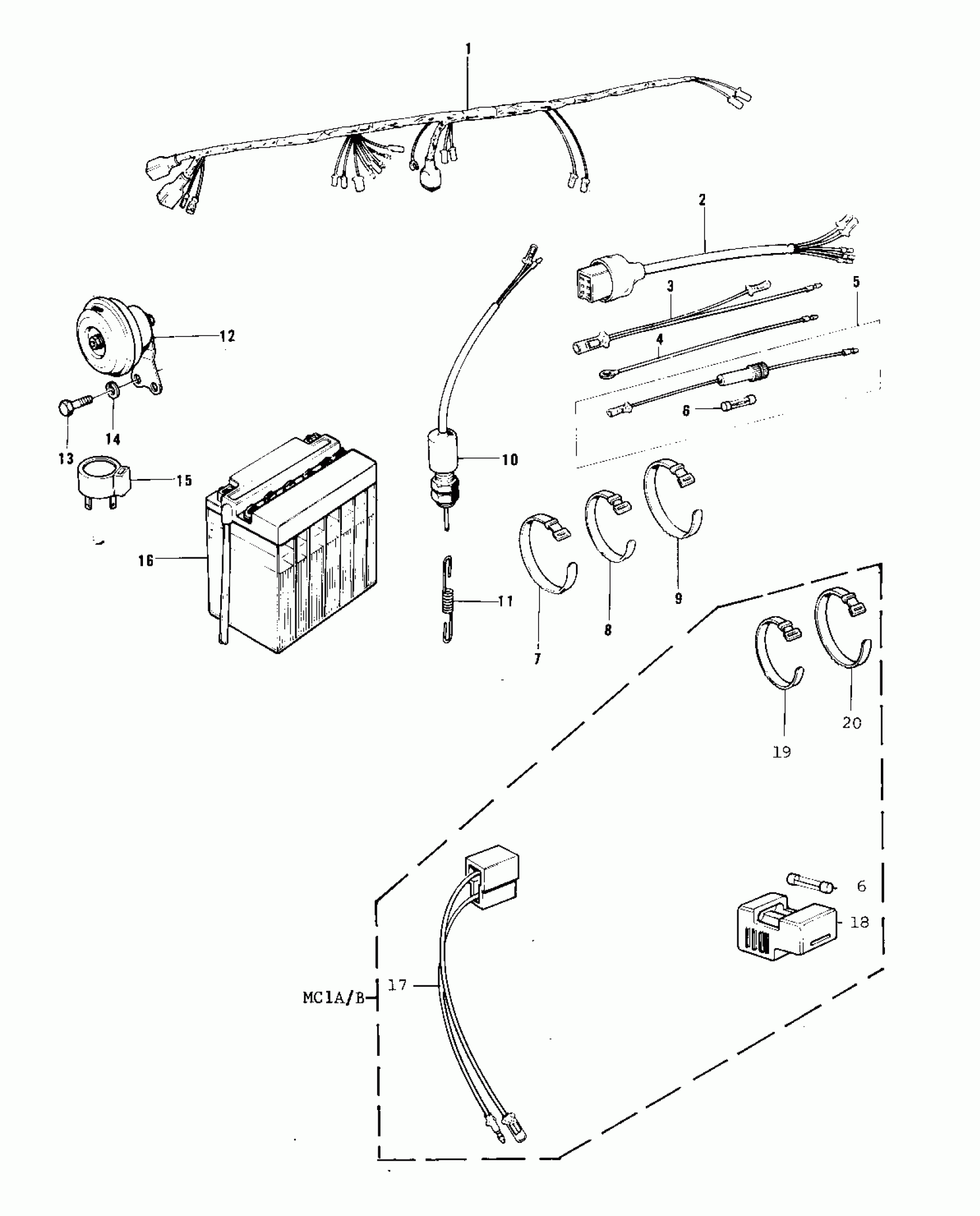

Kawasaki MC1-B CHASSIS ELECTRICAL EQUIPMENT Diagram
#
Description
Price
1
WIRING HARNESS,MAIN
26001-098
Unavailable
2
WIRE,LEAD
26011-1042
Unavailable
3
LEAD WIRE
26011-042
Unavailable
4
LEAD WIRE,SIGNAL LAMP
26011-063
Unavailable
5
FUES ASSY
26004-008
Unavailable
5
FUSE ASSY
26004-017
Unavailable
6
FUSE,10A,L=25
26006-003
Unavailable
7
BAND,L=186
92072-056
Unavailable
8
BAND,L=149
92072-031
Unavailable
9
BAND,L=218
92072-032
Unavailable
10
SWITCH-BRAKE LAMP
27010-015
Unavailable
11
SPRING,BRAKE LAMP SWITCH
27011-011
Unavailable
12
HORN
27003-060
Unavailable
12
HORN
27003-060
Unavailable
13
BOLT,6X10
112G0610
Unavailable
13
BOLT,6X10
112G0610
Unavailable
14
WASHER SPRING 6MM
461F0600
Unavailable
15
RELAY-ASSY,TURN SIGNAL
27002-013
Unavailable
16
UNAVAILABLE IN PRICE BOOK
26012-029
Unavailable
16
YUA BAT 6N4-2A-5
K26012-020
Unavailable
17
WIRE,RECTIFIER LEAD
26011-074
Unavailable
18
HOLDER,SPARE FUSE
26016-003
Unavailable
19
BAND,L=123
92072-030
Unavailable
20
BAND,L=186
92072-056
Unavailable
