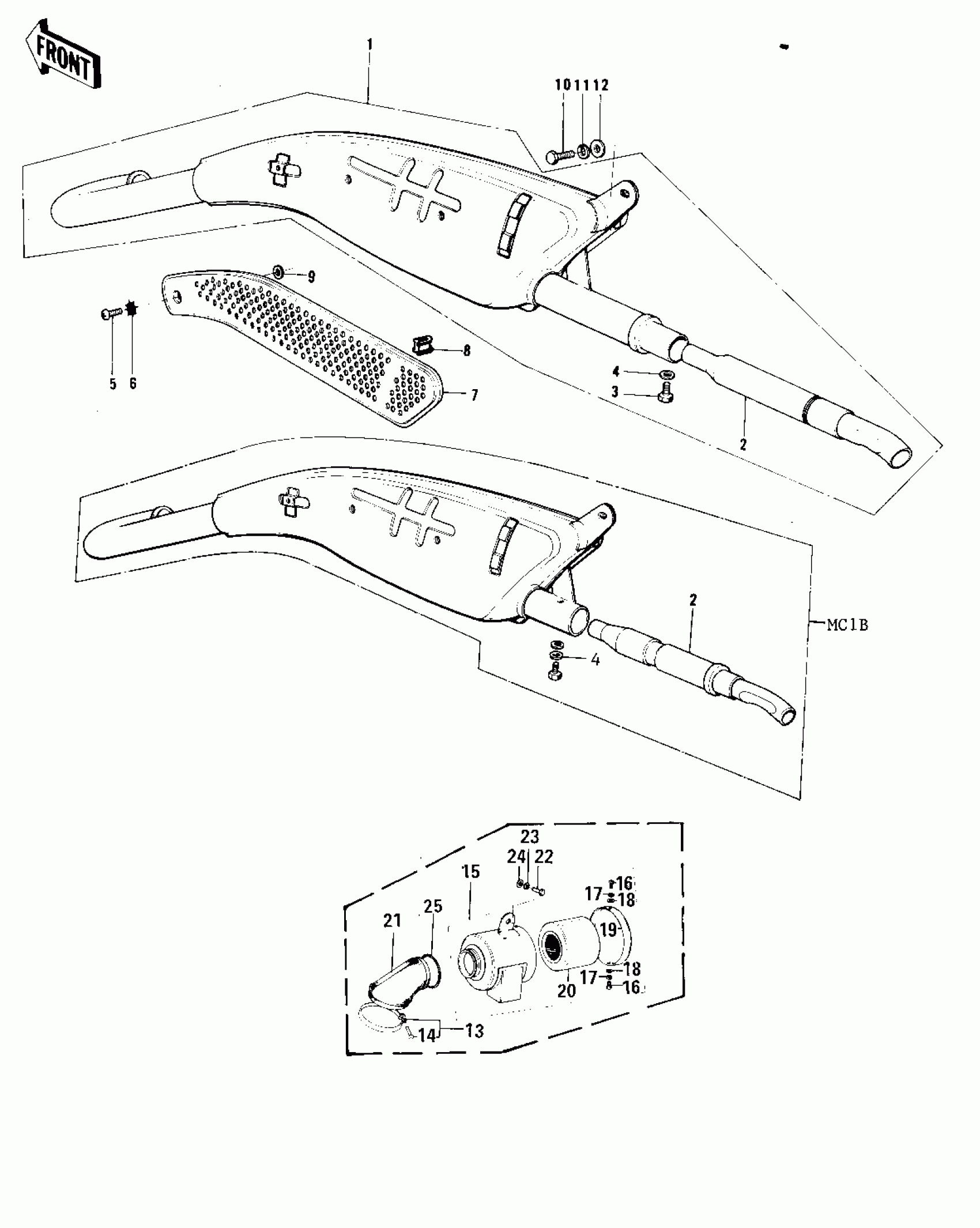

Kawasaki MC1-B AIR CLEANER/MUFFLER ('73-'75 MC1/MC1-A/M Diagram
#
Description
Price
1
MUFFLER ASSY,F.BLACK
18001-167-21
Unavailable
1
MUFFLER ASSY,F.BLACK
18001-167-21
Unavailable
1
MUFFLER ASSY,F.BLACK
18001-167-21
Unavailable
2
BAFFLE TUBE
18033-071
Unavailable
2
BAFFLE TUBE
18033-083
Unavailable
2
BAFFLE TUBE
18033-088
Unavailable
3
BOLT,6X10
112G0610
Unavailable
4
WASHER-PLAIN
92022-183
Unavailable
4
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
5
SCREW PAN HEAD 6X12
220E0612
Unavailable
6
WASHER LOCK 6MM
463H0600
Unavailable
7
COVER,MUFFLER
18064-018
Unavailable
8
INSULATOR
18065-007
Unavailable
9
INSULATOR-HEAT
18065-009
Unavailable
10
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
10
BOLT HEX HEAD 8X16
116B0816
Unavailable
11
WASHER SPRING 8MM
461F0800
Unavailable
12
WASHER PLAIN 8MM
411B0800
Unavailable
13
CLAMP
92037-068
Unavailable
14
SCREW PAN HEAD 6X35
220B0635
Unavailable
15
AIR CLEANER ASY,BLACK
11010-068-10
Unavailable
16
SCREW PAN HEAD 5X8
220B0508
Unavailable
17
WASHER SPRING 5MM
461F0500
Unavailable
18
WASHER-PLAIN,5MM
411B0500
Unavailable
19
CAP,AIR CLEANER
11012-041
Unavailable
20
ELEMENT,AIR,CLNR
11013-044
Unavailable
21
CONNECTOR,AIR CLEANER
11026-009
Unavailable
22
BOLT-UPSET,6X16
112G0616
Unavailable
22
BOLT-UPSET,6X16
112G0616
Unavailable
23
WASHER SPRING 6MM
461F0600
Unavailable
24
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
25
SPRING COIL
92081-047
Unavailable
