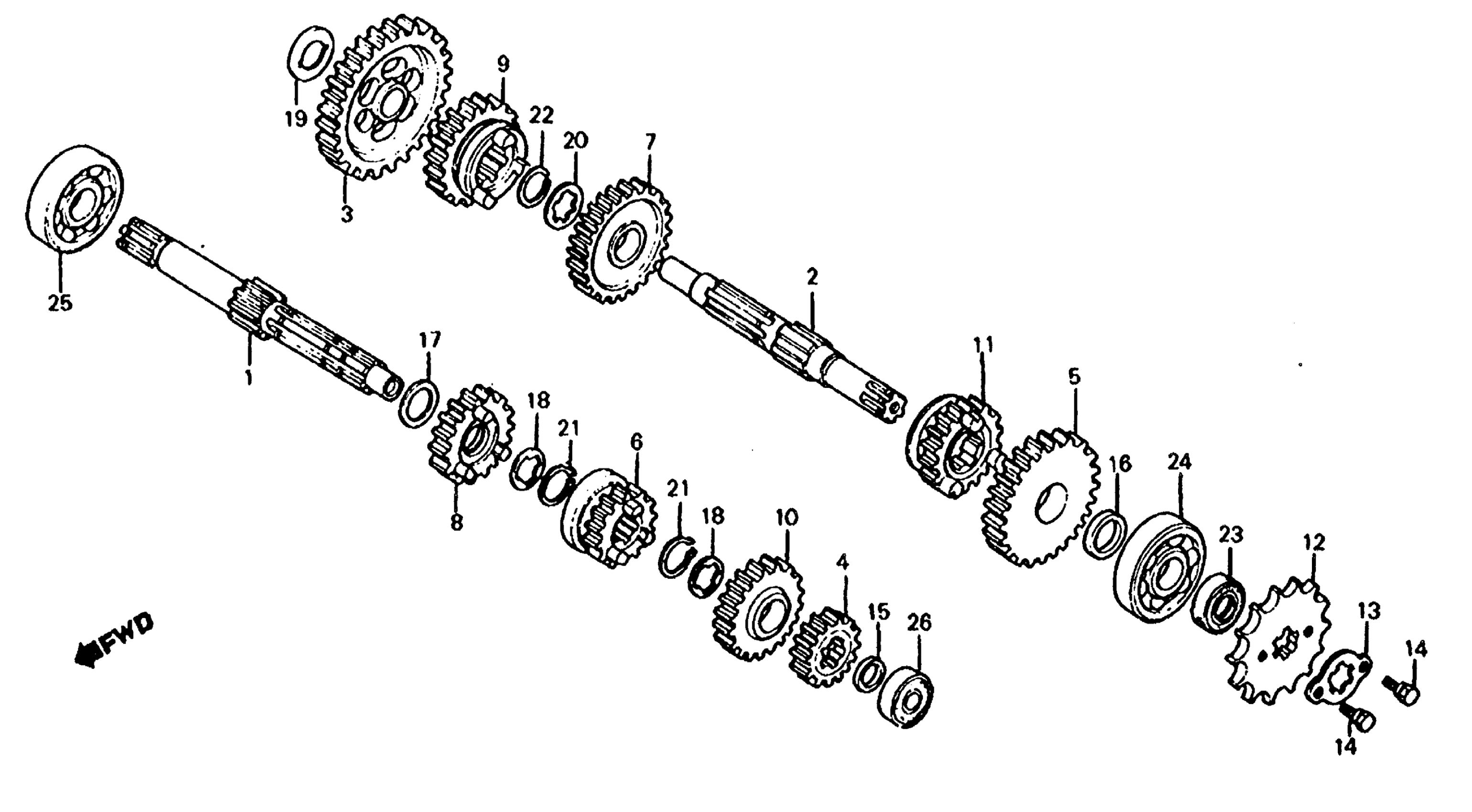

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (12T)

23211-166-010

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23221-166-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (37T) (NOT AVAILABLE)

23421-166-010

Unavailable

4

GEAR, MAINSHAFT SECOND (17T) This part replaces 23441-115-000.

23441-115-010

$43.03

4

GEAR, MAINSHAFT SECOND (17T)

23441-115-010

$43.03

5

GEAR, COUNTERSHAFT SECOND (32T) (NOT AVAILABLE)

23451-149-000

Unavailable

6

GEAR, MAINSHAFT THIRD (20T) (NOT AVAILABLE)

23462-166-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE)

23471-166-010

Unavailable

8

GEAR, MAINSHAFT FOURTH (23T)

23477-166-010

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (26T)

23482-166-000

Unavailable

10

GEAR, MAINSHAFT TOP (25T)

23501-149-010

$54.62

11

GEAR, COUNTERSHAFT TOP (24T)

23511-115-010

$69.56

12

SPROCKET, DRIVE (13T)

23800-GB4-000

$16.99

12

SPROCKET, DRIVE (13T) This part replaces 23800-041-010.

23800-GB4-000

$16.99

13

PLATE, DRIVE SPROCKET FIXING

23802-041-010

$2.02

14

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

15

COLLAR, MAINSHAFT (NOT AVAILABLE)

90437-166-000

Unavailable

16

COLLAR, COUNTERSHAFT

90439-166-000

Unavailable

17

WASHER B, THRUST (17MM)

90453-115-000

$2.28

18

WASHER, SPLINE (17MM)

90461-115-000

$2.66

19

WASHER, THRUST (15MM)

90463-166-000

Unavailable

20

WASHER A, SPLINE (19MM)

90464-166-000

$3.76

21

CIRCLIP, OUTER (17MM)

90601-001-000

$1.49

22

CIRCLIP (19MM) This part replaces 90602-166-000.

90602-166-010

$3.41

22

CIRCLIP (19MM)

90602-166-010

$3.41

23

OIL SEAL (17X28X7) This part replaces 91201-415-003.

91201-415-013

$5.53

23

OIL SEAL (17X28X7) (ARAI)

91201-415-013

$5.53

24

BEARING, RADIAL BALL (6303)

96100-63030-00

$14.95

25

BEARING, RADIAL BALL (6303)

96120-63030-00

Unavailable

26

BEARING, RADIAL BALL (6001)

96140-60010-00

$11.61
