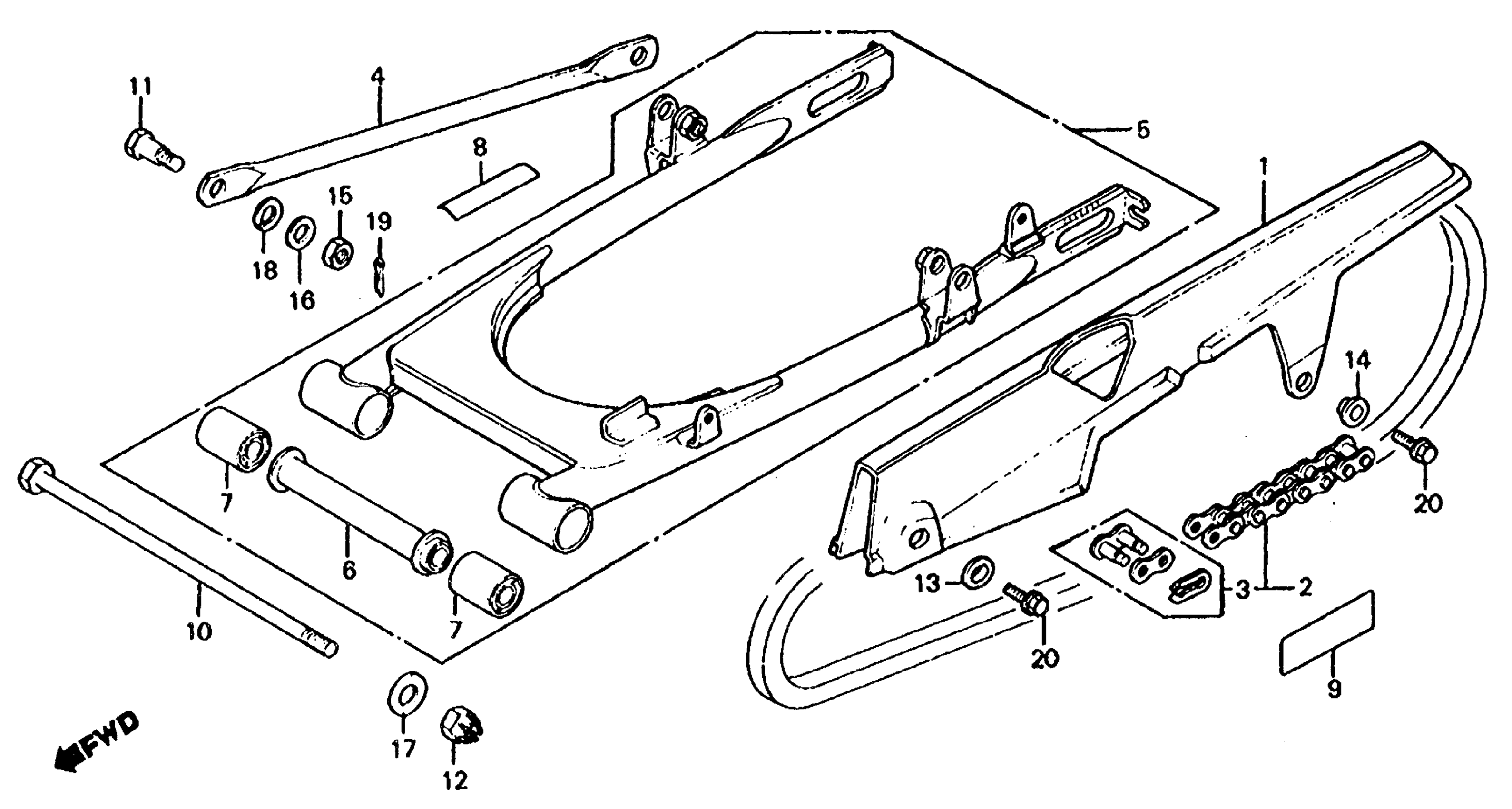

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-166-000

Unavailable

2

CHAIN, DRIVE

405W3-GN1-505

Unavailable

2

CHAIN, DRIVE

405W3-GT9-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-GF5-003.

405W3-GN1-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-GF5-005.

405W3-GN1-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-GF5-013.

405W3-GT9-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-GF5-015.

405W3-GT9-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-GT9-005.

405W3-GT9-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-166-003.

405W3-GN1-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-166-005.

405W3-GN1-505

Unavailable

3

MASTER LINK (DAIDO) This part replaces 40531-045-671.

40531-098-003

$3.74

3

MASTER LINK (DAIDO)

40531-098-003

$3.74

3

MASTER LINK (DAIDO) This part replaces 40531-120-003.

40531-098-003

$3.74

3

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

3

MASTER LINK (DAIDO) This part replaces 40531-153-003.

40531-098-003

$3.74

4

ARM, RR. BRAKE STOPPER

43431-166-000

Unavailable

5

SWINGARM ASSY., RR. *R33* (HELIOS RED)

52110-166-670ZA

Unavailable

5

SWINGARM ASSY., RR. *NH1* (BLACK) This part replaces 52110-166-670ZB.

52110-167-880ZD

Unavailable

5

SWINGARM ASSY., RR. *NH1* (BLACK)

52110-167-880ZD

Unavailable

6

COLLAR, RR. SWINGARM (NOT AVAILABLE)

52111-166-000

Unavailable

7

BUSH, SWINGARM PIVOT

52147-028-300

$17.90

8

MARK, MUFFLER CAUTION

87504-028-670

$2.92

9

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-166-670

Unavailable

10

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-360-010

Unavailable

11

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-331-770

Unavailable

12

NUT, SELF-LOCK (12MM)

90353-045-000

$5.99

13

WASHER (6X9)

90513-323-000

$1.84

14

WASHER, NUMBER BRACKET MOUNTING

90563-045-000

$3.12

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49

17

WASHER, PLAIN (12MM)

94101-12000

$1.49

18

WASHER, SPRING (10MM)

94111-10000

$1.49

19

PIN, SPLIT (2.0X15)

94201-20150

$1.49

20

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

20

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
