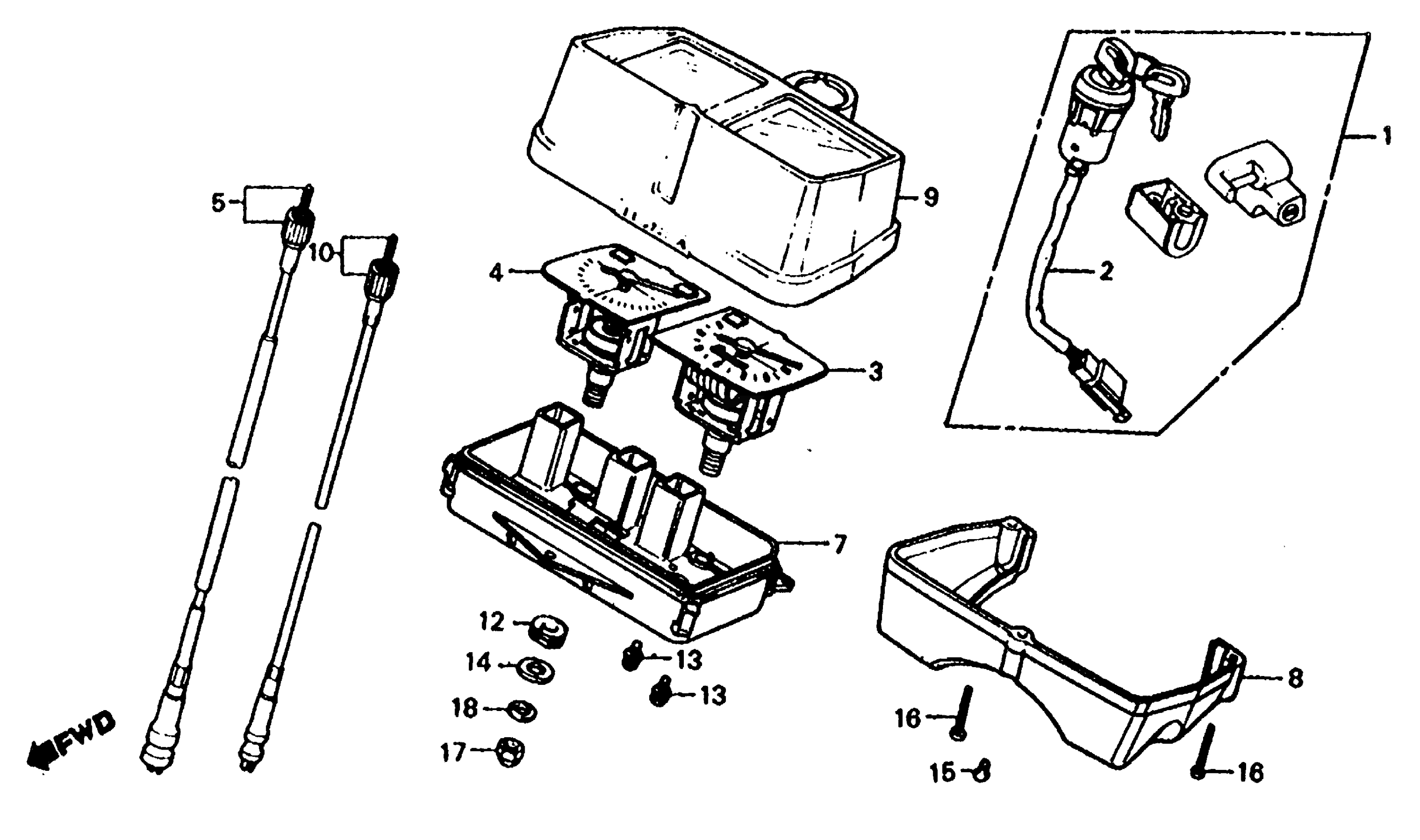

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

LOCK SET (NOT AVAILABLE) This part replaces 35010-166-010.

35010-166-030

Unavailable

1

LOCK SET (NOT AVAILABLE) This part replaces 35010-166-020.

35010-166-030

Unavailable

1

LOCK SET (NOT AVAILABLE)

35010-166-030

Unavailable

2

SWITCH, COMBINATION This part replaces 35100-166-017.

35100-166-047

Unavailable

2

SWITCH, COMBINATION This part replaces 35100-166-027.

35100-166-047

Unavailable

2

SWITCH, COMBINATION This part replaces 35100-166-037.

35100-166-047

Unavailable

3

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-166-670

Unavailable

4

TACHOMETER ASSY. This part replaces 37250-166-670.

37250-166-651

Unavailable

5

CABLE ASSY., TACHOMETER (NOT AVAILABLE) This part replaces 37260-166-770.

37260-436-600

Unavailable

5

CABLE ASSY., TACHOMETER (NOT AVAILABLE)

37260-436-600

Unavailable

7

CASE, METER This part replaces 37615-166-008.

37615-166-018

Unavailable

7

CASE, METER

37615-166-018

Unavailable

8

COVER, METER (LOWER) (NOT AVAILABLE)

37617-166-018

Unavailable

9

CASE, METER (UPPER)

37620-166-008

Unavailable

10

CABLE, SPEEDOMETER This part replaces 44830-166-000.

44830-GE2-720

Unavailable

12

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

13

SCREW-WASHER, SPECIAL (4X10)

90035-166-008

$2.67

14

WASHER (6.5X18)

90545-323-700

$1.89

15

SCREW, PAN (4X10)

93500-04010-0G

$1.49

16

SCREW, PAN (4X25)

93500-04025-0G

$1.49

16

SCREW, PAN (4X25) This part replaces 93500-04027-0G.

93500-04025-0G

$1.49

17

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

17

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

17

NUT, CAP (6MM)

94021-06020

$1.73

17

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

17

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

18

WASHER, SPRING (6MM)

94111-06000

$1.49
