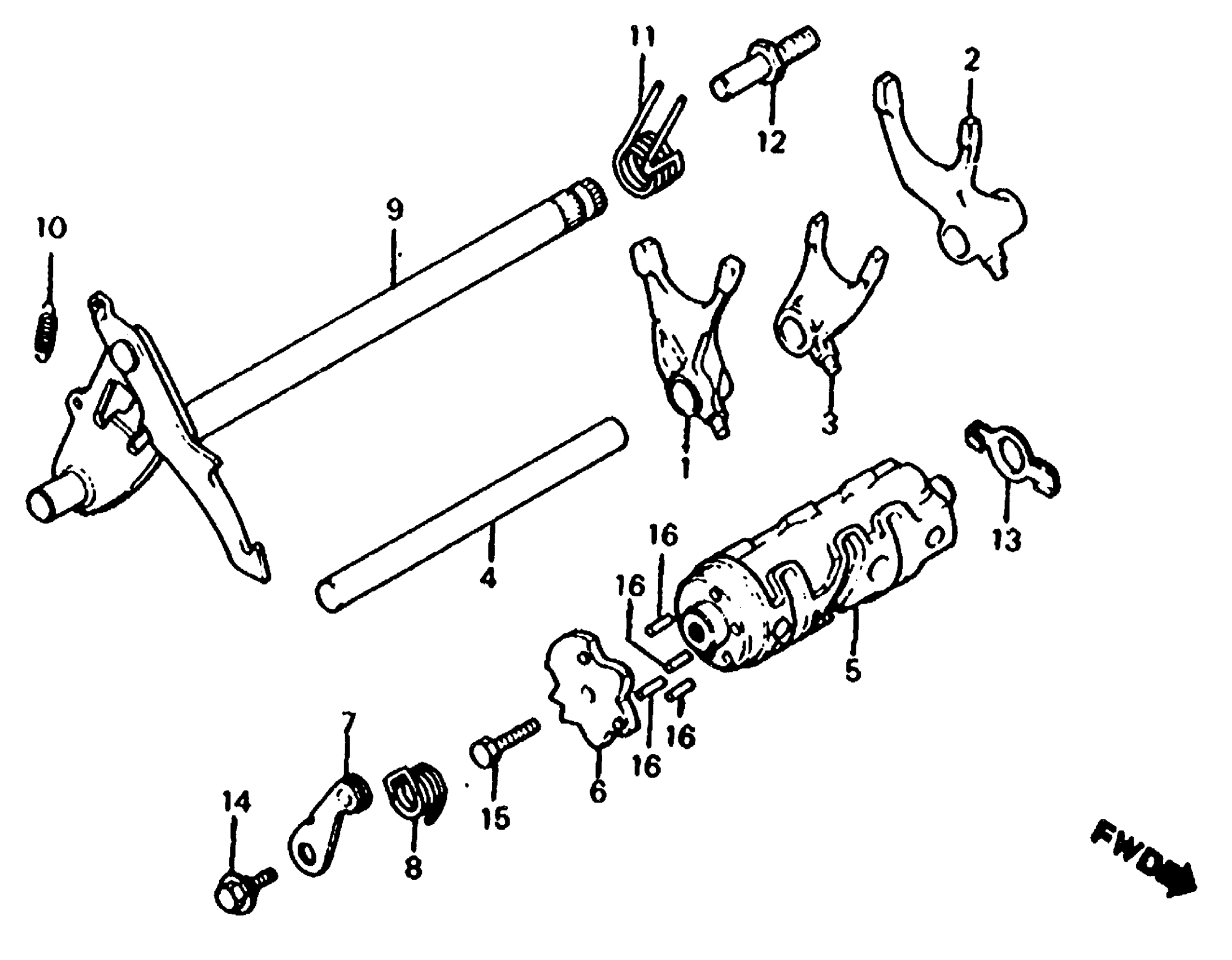

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24210-166-000

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE)

24221-166-000

Unavailable

3

FORK, CENTER GEARSHIFT

24230-GT5-000

Unavailable

3

FORK, CENTER GEARSHIFT This part replaces 24230-166-000.

24230-GT5-000

Unavailable

4

SHAFT, GEARSHIFT FORK

24241-GT5-000

Unavailable

4

SHAFT, GEARSHIFT FORK This part replaces 24241-166-000.

24241-GT5-000

Unavailable

5

DRUM, GEARSHIFT

24301-166-000

Unavailable

6

PLATE, GEARSHIFT DRUM CAM

24303-166-000

Unavailable

7

STOPPER, GEARSHIFT DRUM

24430-166-000

$18.39

8

SPRING, DRUM STOPPER (NOT AVAILABLE)

24436-166-000

Unavailable

9

SPINDLE, GEARSHIFT This part replaces 24610-166-010.

24610-168-000

$82.59

9

SPINDLE, GEARSHIFT

24610-168-000

$82.59

10

SPRING, GEARSHIFT ARM

24641-166-000

$3.56

11

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-166-000

Unavailable

12

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

13

ROTOR, NEUTRAL SWITCH

35753-KE6-830

Unavailable

13

ROTOR, NEUTRAL SWITCH This part replaces 35753-166-000.

35753-KE6-830

Unavailable

14

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

14

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

15

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

16

ROLLER (4X15.8)

96220-40158

$1.49
