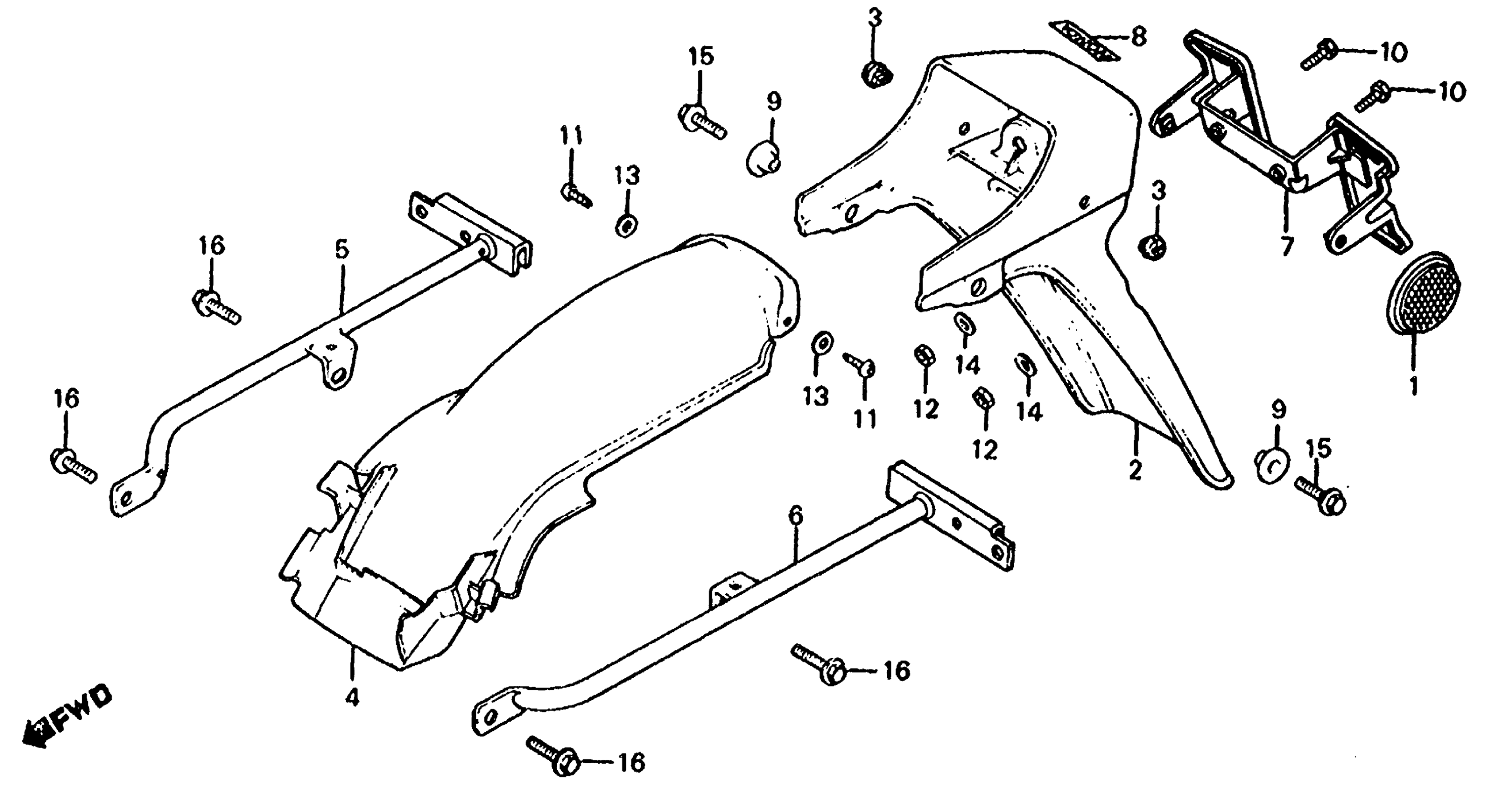

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 REAR FENDER Diagram

#

Description
Price

1

REFLECTOR, RR. REFLEX

33741-HB9-641

$13.66

1

REFLECTOR, RR. REFLEX This part replaces 33741-148-871.

33741-HB9-641

$13.66

1

REFLECTOR, RR. REFLEX This part replaces 33741-148-872.

33741-HB9-641

$13.66

2

FENDER A, RR. *R33* (HELIOS RED) (NOT AVAILABLE)

80100-166-000ZA

Unavailable

2

FENDER A, RR. *NH1* (BLACK) (NOT AVAILABLE)

80100-166-000ZC

Unavailable

3

GROMMET, WIRE (NOT AVAILABLE)

80101-183-000

Unavailable

4

FENDER B, RR. (NOT AVAILABLE)

80105-183-000

Unavailable

5

PIPE, R. GRIP (NOT AVAILABLE)

84100-166-670

Unavailable

6

PIPE, L. GRIP (NOT AVAILABLE)

84200-166-670

Unavailable

7

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-166-670

Unavailable

8

MARK, RR. FENDER *NH0/A18* (WHITE/SPECIFIED RED) (NOT AVAILABLE)

87127-166-000ZA

Unavailable

8

MARK, RR. FENDER *A73/NH1* (GOLD/BLACK) (NOT AVAILABLE)

87127-166-000ZD

Unavailable

9

WASHER (6X20)

90512-300-000

$3.08

10

BOLT, HEX. (6X12) This part replaces 92000-06012-0H.

92101-06012-0H

$1.49

10

BOLT, HEX. (6X12) This part replaces 92000-06012-08.

92101-06012-0H

$1.49

10

BOLT, HEX. (6X12)

92101-06012-0H

$1.49

11

SCREW, TAPPING (4X12)

93901-24320

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06080.

94001-06080-0S

$1.49

12

NUT, HEX. (6MM)

94001-06080-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06080-08.

94001-06080-0S

$1.49

13

WASHER, PLAIN (4MM)

94101-04800

$1.49

14

WASHER (6MM)

90485-286-000

$1.55

15

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

15

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

16

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

16

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
