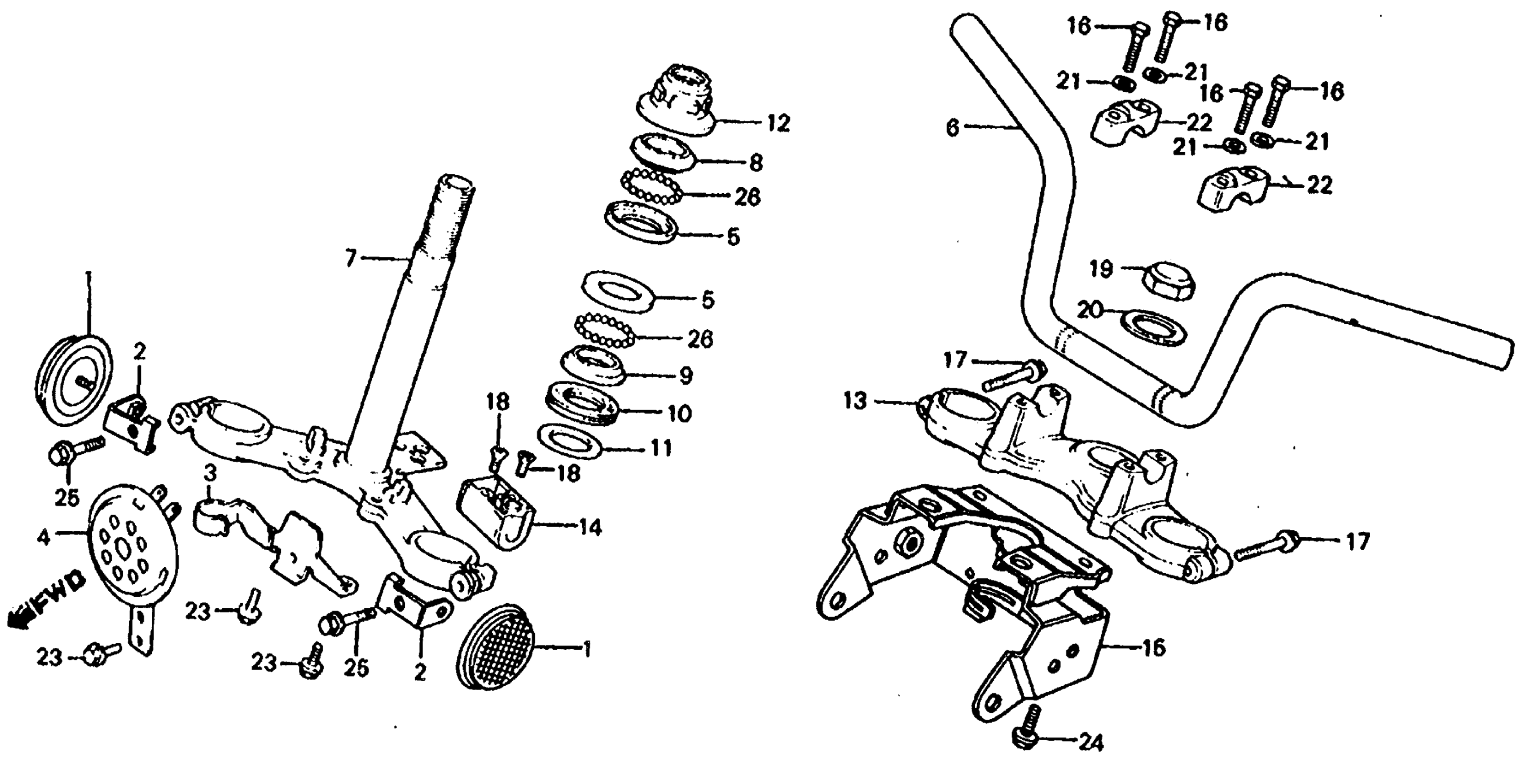

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 HANDLEBAR + STEERING STEM + HORN Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-413-003.

33742-HB9-641

$13.14

1

REFLECTOR, FR. REFLEX This part replaces 33741-413-013.

33742-HB9-641

$13.14

1

REFLECTOR, FR. REFLEX

33742-HB9-641

$13.14

2

STAY, FR. REFLECTOR (NOT AVAILABLE)

33742-166-670

Unavailable

3

STAY, HORN (NOT AVAILABLE)

38102-166-010

Unavailable

4

HORN This part replaces 38110-166-670.

38110-KB4-672

Unavailable

5

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

5

RACE, STEERING BALL

50301-041-010

$12.39

6

HANDLEBAR (NOT AVAILABLE)

53100-166-670

Unavailable

7

STEM, STEERING (NOT AVAILABLE)

53200-166-000

Unavailable

8

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

8

RACE, STEERING TOP CONE

53211-028-010

$11.09

9

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

9

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

10

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

11

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

12

THREAD, STEERING HEAD TOP

53220-074-000

$15.84

13

BRIDGE, FORK TOP

53230-167-000

Unavailable

14

LOCK, HANDLEBAR

53600-086-007

$47.89

15

STAY, METER (NOT AVAILABLE)

61311-166-670

Unavailable

16

BOLT, HEX. (6X28)

90117-065-000

$2.62

17

BOLT, FLANGE (7X36)

90155-167-000

Unavailable

18

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

19

NUT, STEERING STEM

90304-166-010

Unavailable

20

WASHER, STEERING STEM

90503-166-010

Unavailable

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

HOLDER A2, HANDLEBAR (UPPER)

95014-21201

Unavailable

23

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

23

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

24

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

24

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

25

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

25

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

26

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
