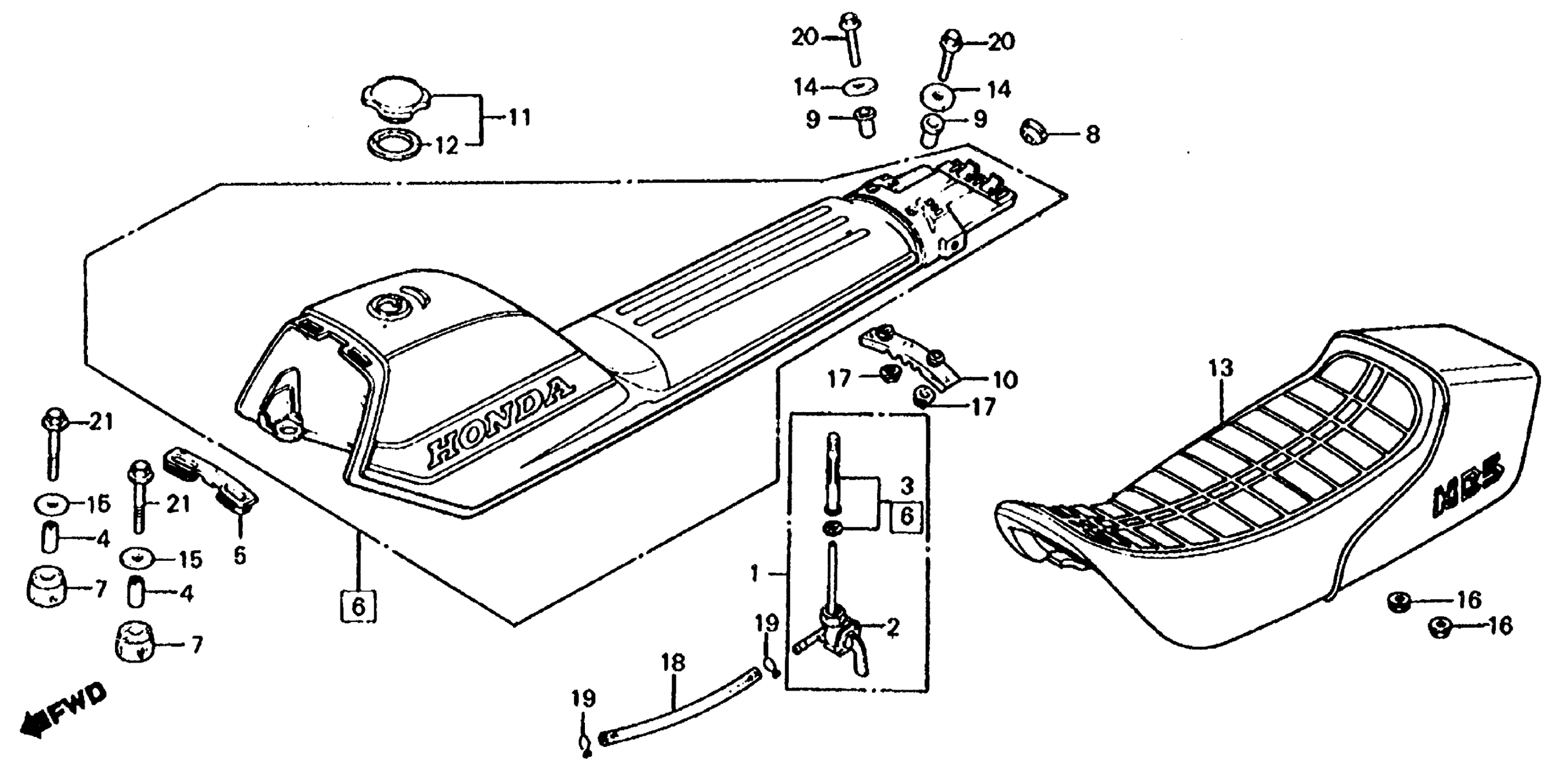

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 FUEL TANK + SEAT Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-GW8-670

$69.05

1

PETCOCK ASSY. This part replaces 16950-166-015.

16950-GW8-670

$69.05

1

PETCOCK ASSY. This part replaces 16950-166-025.

16950-GW8-670

$69.05

2

BODY, PETCOCK This part replaces 16951-166-005.

16951-166-025

Unavailable

2

BODY, PETCOCK This part replaces 16951-166-015.

16951-166-025

Unavailable

3

SCREEN SET This part replaces 16952-166-015.

16952-166-305

Unavailable

4

COLLAR, RR. FUEL TANK MOUNTING (NOT AVAILABLE)

17514-155-010

Unavailable

5

RUBBER, FR. FUEL TANK MOUNT (NOT AVAILABLE)

17532-166-000

Unavailable

6

TANK SET, FUEL *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

17540-166-600ZB

Unavailable

6

TANK SET, FUEL *R33* (HELIOS RED) (NOT AVAILABLE)

17540-166-771ZA

Unavailable

6

TANK SET, FUEL *NH1* This part replaces 17540-166-771ZB.

17540-166-771ZD

Unavailable

7

RUBBER, FUEL TANK MOUNT (NOT AVAILABLE)

17612-166-000

Unavailable

8

GROMMET, WIRE HARNESS (NOT AVAILABLE)

17614-166-000

Unavailable

9

COLLAR, RR. FUEL TANK SETTING

17615-166-000

Unavailable

10

RUBBER, RR. FUEL TANK SETTING (NOT AVAILABLE)

17617-166-000

Unavailable

11

CAP, FUEL FILLER (NOT AVAILABLE) This part replaces 17620-166-770.

17620-166-771

Unavailable

11

CAP, FUEL FILLER (NOT AVAILABLE)

17620-166-771

Unavailable

12

GASKET, FUEL FILLER CAP (NOT AVAILABLE)

17631-166-000

Unavailable

13

SEAT COMP.,SINGLE This part replaces 77100-166-770.

77100-166-020

Unavailable

13

SEAT COMP.,SINGLE This part replaces 77100-166-771.

77100-166-020

Unavailable

13

SEAT COMP.,SINGLE This part replaces 77100-166-772.

77100-166-020

Unavailable

14

WASHER, SEAT (NOT AVAILABLE)

90501-040-000

Unavailable

15

WASHER (8.3MM)

90534-011-000

$1.49

16

NUT, FLANGE (6MM)

94050-06000

$1.49

17

NUT, FLANGE (6MM)

94050-06080

$1.49

18

BULK HOSE, FUEL (4.5X3000) (4.5X150)

95001-45003-50M

$61.19

18

BULK HOSE, FUEL (4.5X3000) (4.5X200)

95001-45003-50M

$61.19

19

CLIP, TUBE (B8)

95002-02080

$1.80

20

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

20

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

21

BOLT, FLANGE (8X32) This part replaces 95700-08032-08.

95701-08032-08

$2.28

21

BOLT, FLANGE (8X32)

95701-08032-08

$2.28
