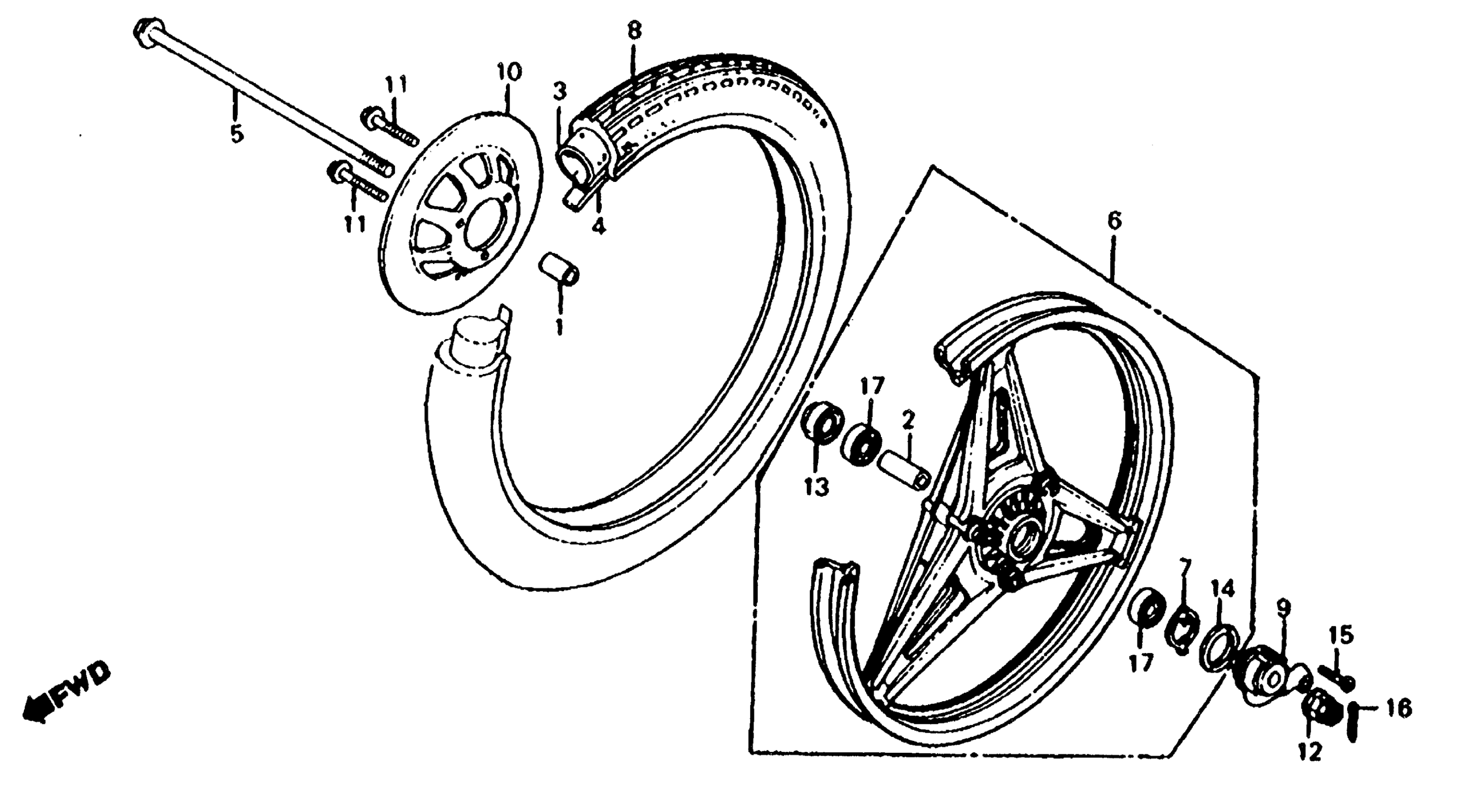

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 FRONT WHEEL Diagram

#

Description
Price

1

COLLAR, RR. WHEEL SIDE (USED AS FR. IN THIS BLOCK)

42311-166-000

Unavailable

2

COLLAR, FR. AXLE DISTANCE This part replaces 42620-122-000.

44620-KG8-900

Unavailable

2

COLLAR, FR. AXLE DISTANCE

44620-KG8-900

Unavailable

3

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

3

TUBE (275/300-18) (IRC) This part replaces 08400-21600.

42712-KC6-005

Unavailable

3

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

3

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

3

TUBE (275/300-18) (IRC) This part replaces 42712-166-004.

42712-KC6-005

Unavailable

3

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

3

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

3

TUBE (275/300-18) (IRC) This part replaces 42712-304-003.

42712-KC6-005

Unavailable

3

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

3

TUBE (275/300-18) (IRC) This part replaces 44712-028-000.

42712-KC6-005

Unavailable

3

TUBE (275/300-18) (IRC) This part replaces 44712-150-005.

42712-KC6-005

Unavailable

3

TUBE (275/300-18) (IRC) This part replaces 44712-205-000.

42712-KC6-005

Unavailable

4

FLAP, TIRE (1.40-18) (DUNLOP) (NOT AVAILABLE)

42713-166-004

Unavailable

4

FLAP, TIRE (BS)

42713-304-003

$6.69

4

FLAP, TIRE (1.40-18) (INOUE)

44713-150-005

Unavailable

5

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-098-010

Unavailable

6

WHEEL SET, FR/RR This part replaces 44650-166-315.

44650-166-505

Unavailable

7

RETAINER, GEAR BOX (NOT AVAILABLE)

44680-166-000

Unavailable

8

TIRE, FR. (2.50-18) (4PR) (INOUE) (NOT AVAILABLE)

44711-166-671

Unavailable

8

TIRE, FR. (2.50-18) (4PR) (DUNLOP) (NOT AVAILABLE)

44711-166-672

Unavailable

8

TIRE, FR. (2.50-18) (4PR) (BS) (NOT AVAILABLE)

44711-166-673

Unavailable

9

BOX ASSY., SPEEDOMETER GEAR (YAMADA) (NOT AVAILABLE) This part replaces 44800-166-003.

44800-166-013

Unavailable

9

BOX ASSY., SPEEDOMETER GEAR (YAMADA) (NOT AVAILABLE) This part replaces 44800-166-004.

44800-166-013

Unavailable

9

BOX ASSY., SPEEDOMETER GEAR (YAMADA) (NOT AVAILABLE)

44800-166-013

Unavailable

10

DISK, FR. BRAKE (NOT AVAILABLE)

45121-166-000

Unavailable

11

BOLT, UBS (8X33)

90112-413-000

$3.85

12

NUT, AXLE (12MM)

90305-169-000

$6.28

13

OIL SEAL (23X37X7)

91252-030-003

Unavailable

13

OIL SEAL (23X37X7) This part replaces 91252-030-005.

91252-030-003

Unavailable

14

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

15

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

16

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

16

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

16

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

16

PIN, SPLIT (3.0X45)

94201-30450

$1.49

17

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84
