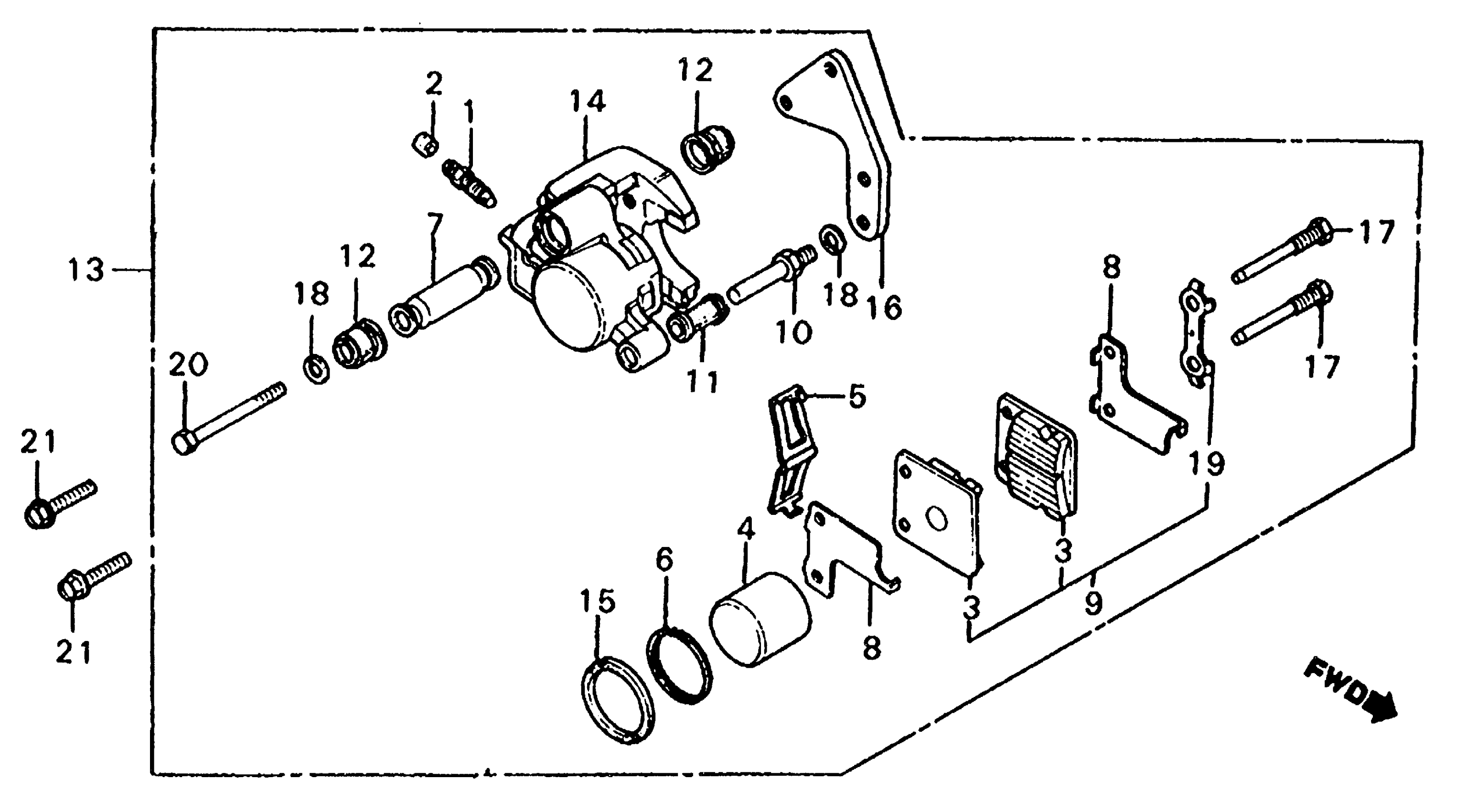

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET This part replaces 06455-166-405.

45120-KG2-305

Unavailable

NI

PAD SET This part replaces 451A0-166-670.

45120-KG2-305

Unavailable

1

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

2

CAP, BLEEDER SCREW

43353-548-003

$4.93

3

PAD COMP,FR This part replaces 45105-KG2-951.

45105-GBZ-004

Unavailable

3

PAD COMP,FR This part replaces 45105-166-006.

45105-GBZ-004

Unavailable

3

PAD COMP,FR This part replaces 45105-166-007.

45105-GBZ-004

Unavailable

4

PISTON

45107-166-006

$27.31

5

SPRING, PAD

45108-166-006

$7.46

6

DUST SEAL

45109-166-006

$6.41

7

SLEEVE (NOT AVAILABLE)

45111-166-026

Unavailable

8

SHIM (NOT AVAILABLE)

45116-166-006

Unavailable

9

PAD SET (NOT AVAILABLE)

45120-166-000

Unavailable

10

BOLT, PIN

45131-166-016

$7.63

11

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

12

BOOT, PIN

45133-166-016

$3.85

13

CALIPER ASSY., R. (NOT AVAILABLE)

45200-166-037

Unavailable

14

CALIPER (NOT AVAILABLE)

45201-166-006

Unavailable

15

SEAL, PISTON

45209-166-006

$8.64

16

BRACKET, CALIPER (NOT AVAILABLE)

45210-166-016

Unavailable

17

PIN, HANGER

45215-166-006

$13.51

18

WASHER, WAVE

45216-166-006

$2.34

19

WASHER, TONGUED

45217-166-006

$5.33

20

BOLT, HEX. (8X50) This part replaces 92000-08050-0H.

92201-08050-0H

$2.23

20

BOLT, HEX. (8X50)

92201-08050-0H

$2.23

21

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

21

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
