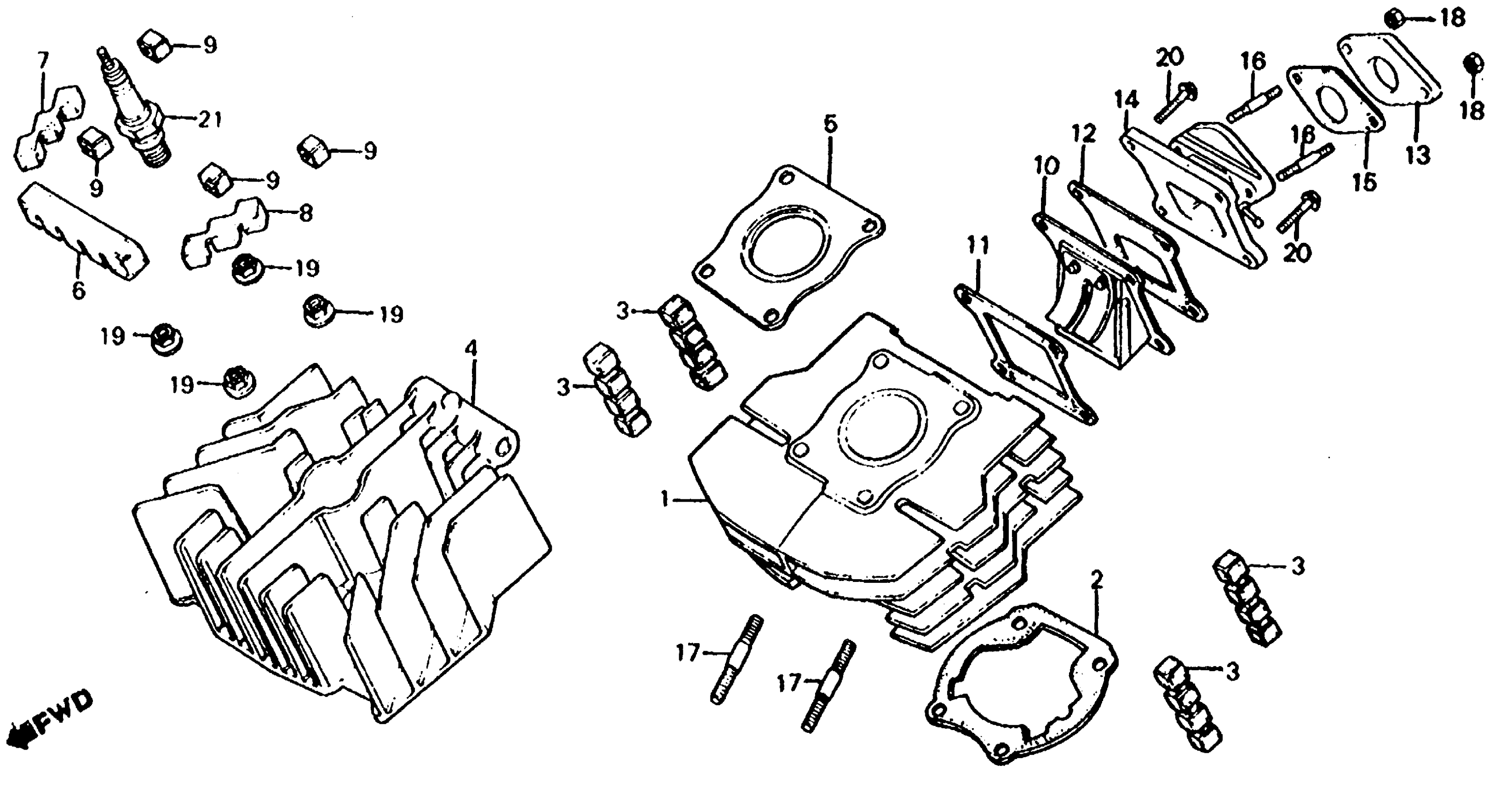

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER

12100-166-010

Unavailable

2

GASKET, CYLINDER This part replaces 12191-166-000.

12191-167-670

Unavailable

2

GASKET, CYLINDER This part replaces 12191-166-306.

12191-167-670

Unavailable

2

GASKET, CYLINDER This part replaces 12191-166-670.

12191-167-670

Unavailable

2

GASKET, CYLINDER

12191-167-670

Unavailable

2

GASKET, CYLINDER This part replaces 12191-167-910.

12191-167-670

Unavailable

3

RUBBER C, INSERT (NOT AVAILABLE)

12195-166-000

Unavailable

4

CYLINDER HEAD (NOT AVAILABLE)

12200-166-020

Unavailable

5

GASKET, CYLINDER HEAD

12251-166-000

Unavailable

6

RUBBER F, INSERT (NOT AVAILABLE)

12295-166-000

Unavailable

7

RUBBER, R. INSERT (NOT AVAILABLE)

12296-166-000

Unavailable

8

RUBBER, L. INSERT (NOT AVAILABLE)

12297-166-000

Unavailable

9

RUBBER, INSERT (NOT AVAILABLE)

12298-166-000

Unavailable

10

VALVE, REED

14100-166-003

Unavailable

11

GASKET A, REED VALVE This part replaces 14132-166-010.

14132-167-670

Unavailable

11

GASKET A, REED VALVE This part replaces 14132-166-306.

14132-167-670

Unavailable

11

GASKET A, REED VALVE

14132-167-670

Unavailable

12

GASKET B, REED VALVE This part replaces 14133-166-010.

14133-167-670

Unavailable

12

GASKET B, REED VALVE

14133-167-670

Unavailable

12

GASKET B, REED VALVE This part replaces 14133-167-910.

14133-167-670

Unavailable

13

INSULATOR, CARB This part replaces 16211-166-000.

16211-166-306

Unavailable

14

PIPE, INLET (NOT AVAILABLE)

17100-166-000

Unavailable

15

GASKET, IN. PIPE This part replaces 17119-166-000.

17119-166-010

Unavailable

15

GASKET, IN. PIPE

17119-166-010

Unavailable

16

BOLT 2, STUD (6X18) This part replaces 92700-06027-10.

92900-06018-1B

$1.69

16

BOLT 2, STUD (6X18) This part replaces 92700-06028-1B.

92900-06018-1B

$1.69

16

BOLT, STUD (6X18)

92900-06018-1B

$1.69

17

BOLT, STUD (8X35) This part replaces 92700-08035-0B.

92900-08019-0B

$2.08

17

BOLT, STUD (8X35)

92900-08019-0B

$2.08

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

NUT, FLANGE (8MM)

94050-08000

$1.49

20

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

20

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

21

SPARK PLUG (BR7HS) (NGK) | (Optional).

98076-57716

$2.62

21

SPARK PLUG (W22FSR) (DENSO) | (Optional).

98076-57726

Unavailable

21

SPARK PLUG (BR8HS) (NGK)

98076-58716

$2.62

21

SPARK PLUG (W24FSR) (DENSO) (NOT AVAILABLE)

98076-58726

Unavailable

21

SPARK PLUG (BR9HS) (NGK) | (Optional).

98076-59716

$3.28

21

SPARK PLUG (W27SR) (DENSO) (NOT AVAILABLE) | (Optional).

98076-59726

Unavailable
