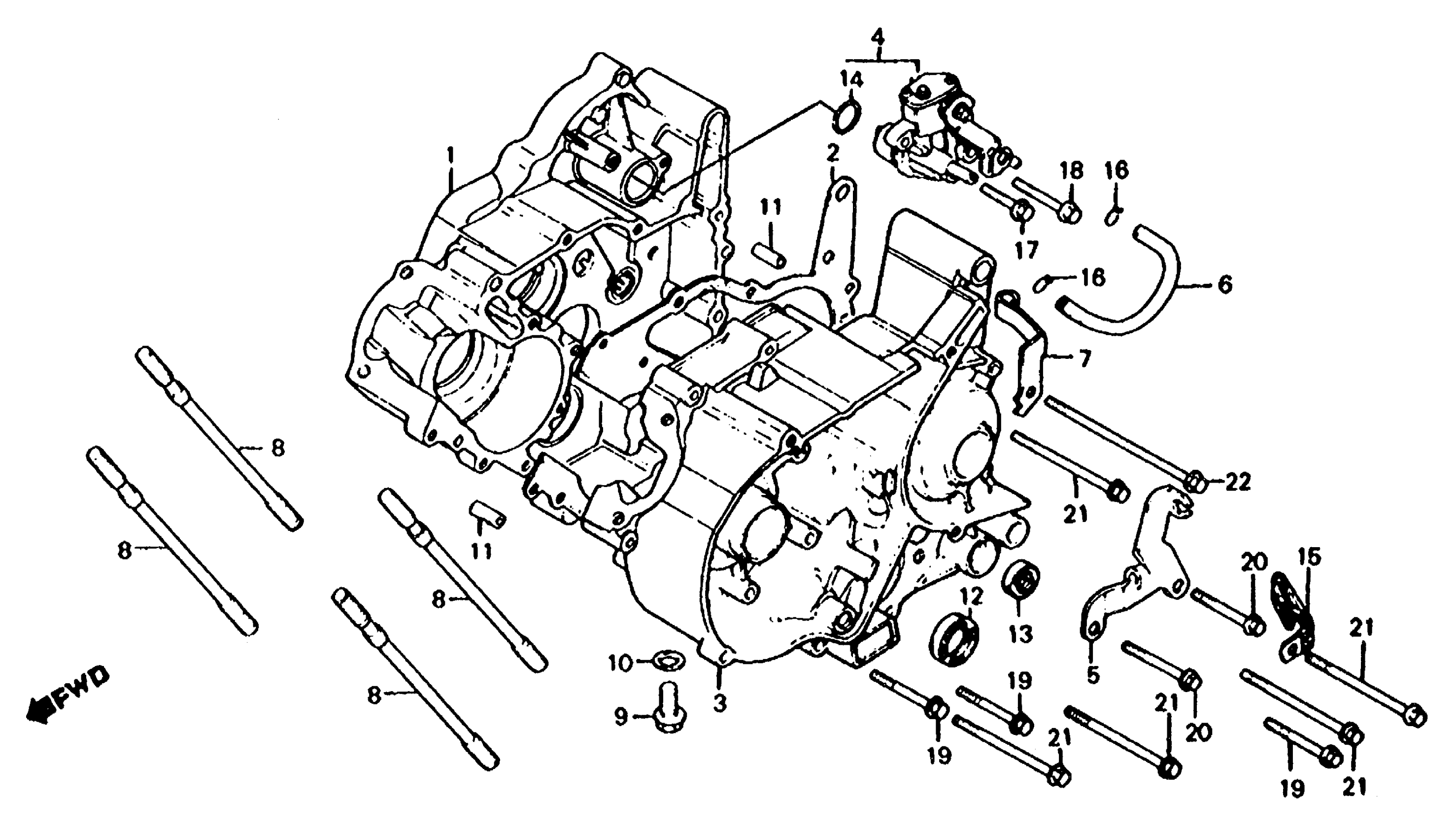

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 CRANKCASE + OIL PUMP Diagram

CRANKCASE, R. (NOT AVAILABLE)

11101-166-670

Unavailable

GASKET, CRANKCASE This part replaces 11191-166-670.

11191-166-307

Unavailable

CRANKCASE, L. (NOT AVAILABLE)

11201-166-670

Unavailable

PUMP ASSY., OIL (HONDALOCK) (NOT AVAILABLE)

15100-166-013

Unavailable

RECEIVER, OIL PUMP CABLE

15151-166-000

Unavailable

TUBE, OIL PASSAGE (NOT AVAILABLE)

15525-166-000

Unavailable

CLAMP, OVERFLOW TUBE

16236-168-000

$7.57

BOLT, CYLINDER STUD (NOT AVAILABLE)

90031-166-000

Unavailable

BOLT, DRAIN PLUG (12MM) (NOT AVAILABLE)

90041-166-000

Unavailable

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.92

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X20.5)

90705-639-000

Unavailable

OIL SEAL (20X32X7) (NOK)

91205-166-004

$17.38

OIL SEAL (12X22X7) (ARAI) This part replaces 91209-612-000.

91209-612-003

$9.83

OIL SEAL (12X22X7) (ARAI)

91209-612-003

$9.83

OIL SEAL (12X22X7) (ARAI) This part replaces 91209-612-005.

91209-612-003

$9.83

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

CLIP, WIRE

91406-166-000

$3.83

CLIP, TUBE (B6.5)

95002-02650

$1.49

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

BOLT, FLANGE (6X110) This part replaces 96000-06110-00.

96001-06110-00

$3.80

BOLT, FLANGE (6X110)

96001-06110-00

$3.80
