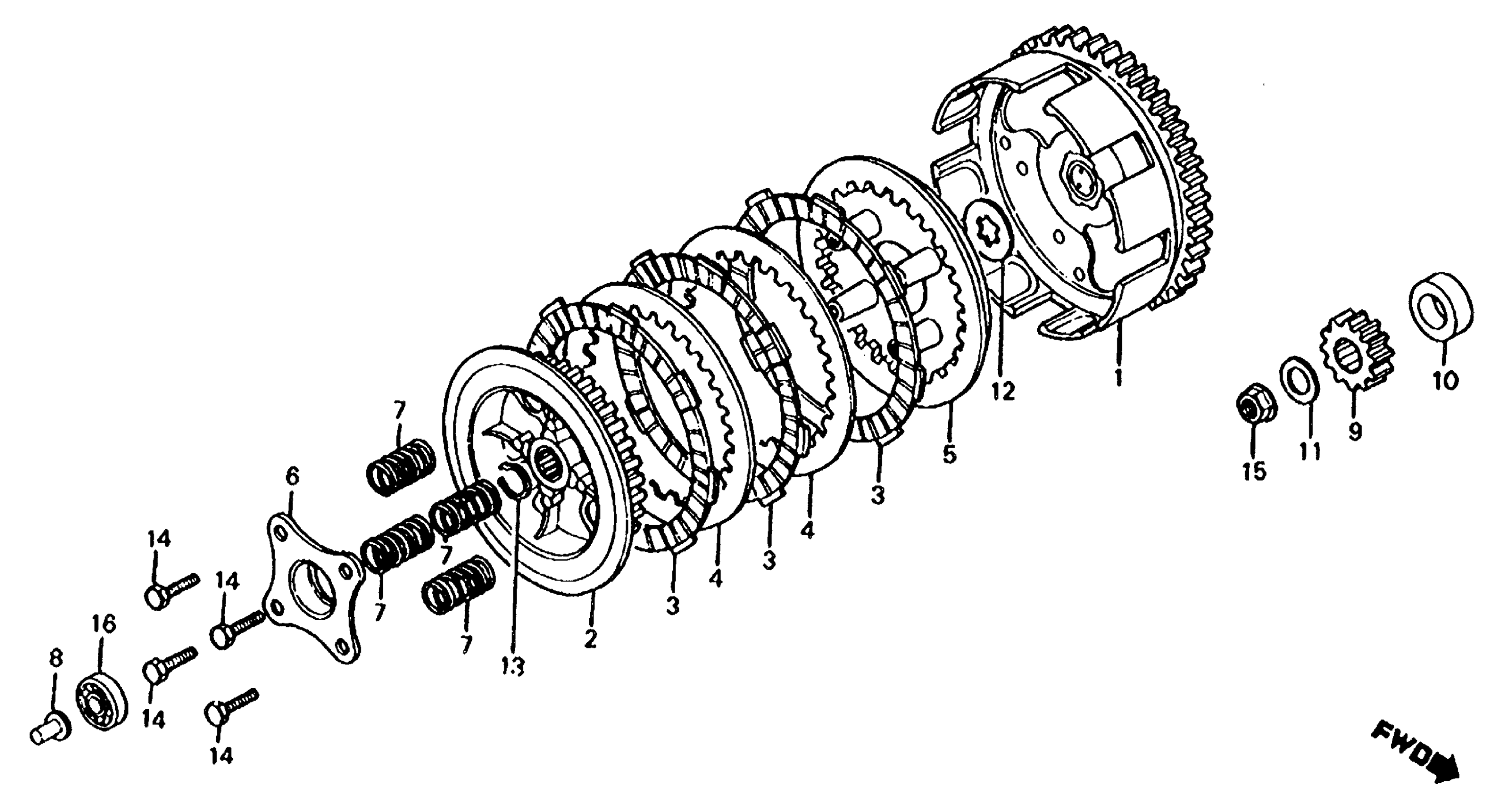

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) This part replaces 22100-166-000.

22100-166-010

Unavailable

1

CLUTCH (OUTER)

22100-166-010

Unavailable

2

CENTER, CLUTCH

22121-115-010

$67.82

3

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$17.44

3

DISK, CLUTCH FRICTION

22201-166-000

$17.44

4

PLATE, CLUTCH

22311-KN4-680

$6.31

4

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.31

5

PLATE, CLUTCH PRESSURE

22350-115-020

$41.76

6

PLATE, CLUTCH LIFTER

22361-166-000

Unavailable

7

SPRING, CLUTCH

22401-166-000

$4.67

8

ROD, CLUTCH LIFTER

22847-166-000

$12.56

9

GEAR, PRIMARY DRIVE (NOT AVAILABLE)

23121-166-000

Unavailable

10

COLLAR, R. CRANKSHAFT (NOT AVAILABLE)

90435-166-000

Unavailable

11

WASHER, PLAIN (12MM) This part replaces 90440-166-000.

90440-GT4-970

$2.48

12

WASHER B, SPLINE (17MM)

90462-115-010

$5.33

13

CIRCLIP, OUTER (17MM)

90601-001-000

$1.49

14

BOLT, HEX. (6X25) This part replaces 92025-06025.

92025-06025-0A

$1.49

14

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

15

NUT, FLANGE (12MM) This part replaces 90231-397-000.

94050-12000

$1.49

15

NUT, FLANGE (12MM)

94050-12000

$1.49

16

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
