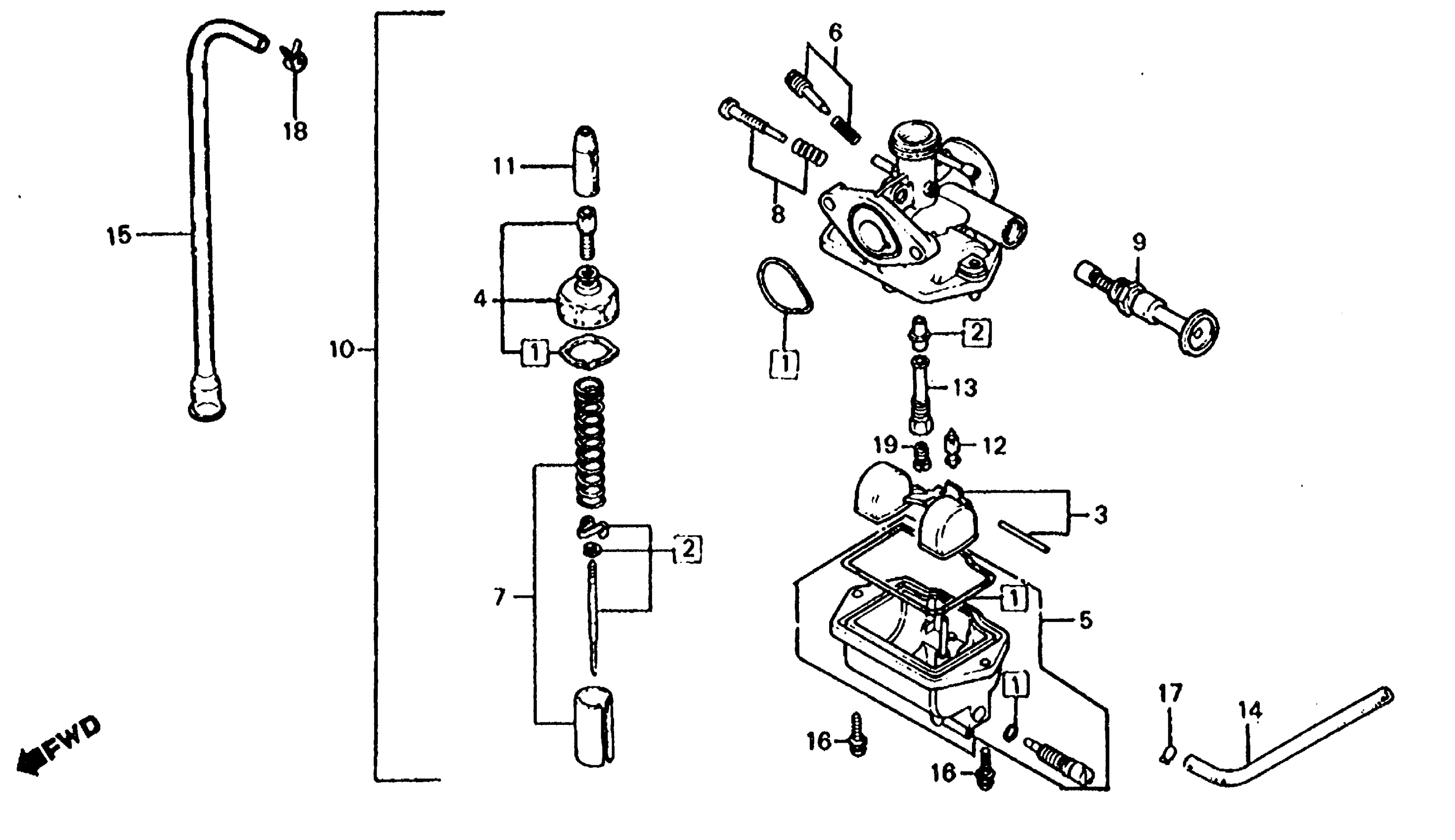

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-166-004

$24.12

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-166-014

Unavailable

3

FLOAT SET

16013-166-004

Unavailable

4

TOP SET (NOT AVAILABLE)

16014-166-004

Unavailable

5

CHAMBER SET, FLOAT This part replaces 16015-166-004.

16015-166-014

$96.89

5

CHAMBER SET, FLOAT

16015-166-014

$96.89

6

SCREW SET A

16016-GB4-003

$23.02

6

SCREW SET A This part replaces 16016-166-004.

16016-GB4-003

$23.02

7

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-166-004

Unavailable

8

SCREW SET B

16028-166-004

$19.87

9

VALVE, STARTER This part replaces 16046-166-004.

16046-166-014

Unavailable

9

VALVE, STARTER

16046-166-014

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE)

161A0-166-044

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-166-044.

161A0-166-044

Unavailable

11

CAP, CABLE SEALING

16118-166-004

$8.08

12

VALVE, FLOAT

16155-883-005

$20.11

13

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-166-004

Unavailable

14

TUBE, OVERFLOW (NOT AVAILABLE)

16199-166-004

Unavailable

15

TUBE, OIL

17504-147-010

$5.55

16

SCREW-WASHER (4X16)

93892-04016-08

$1.49

17

CLIP, TUBE (B7)

95002-02070

$1.80

18

CLAMP, TUBE (D8)

95002-40800-08

$2.25

19

JET, MAIN (#105)

99101-KFG-1050

$12.78

19

JET, MAIN (#95) | (Optional). This part replaces 99101-166-0950.

99101-GHB-0950

$8.77

19

JET, MAIN (#105) This part replaces 99101-166-1050.

99101-KFG-1050

$12.78
