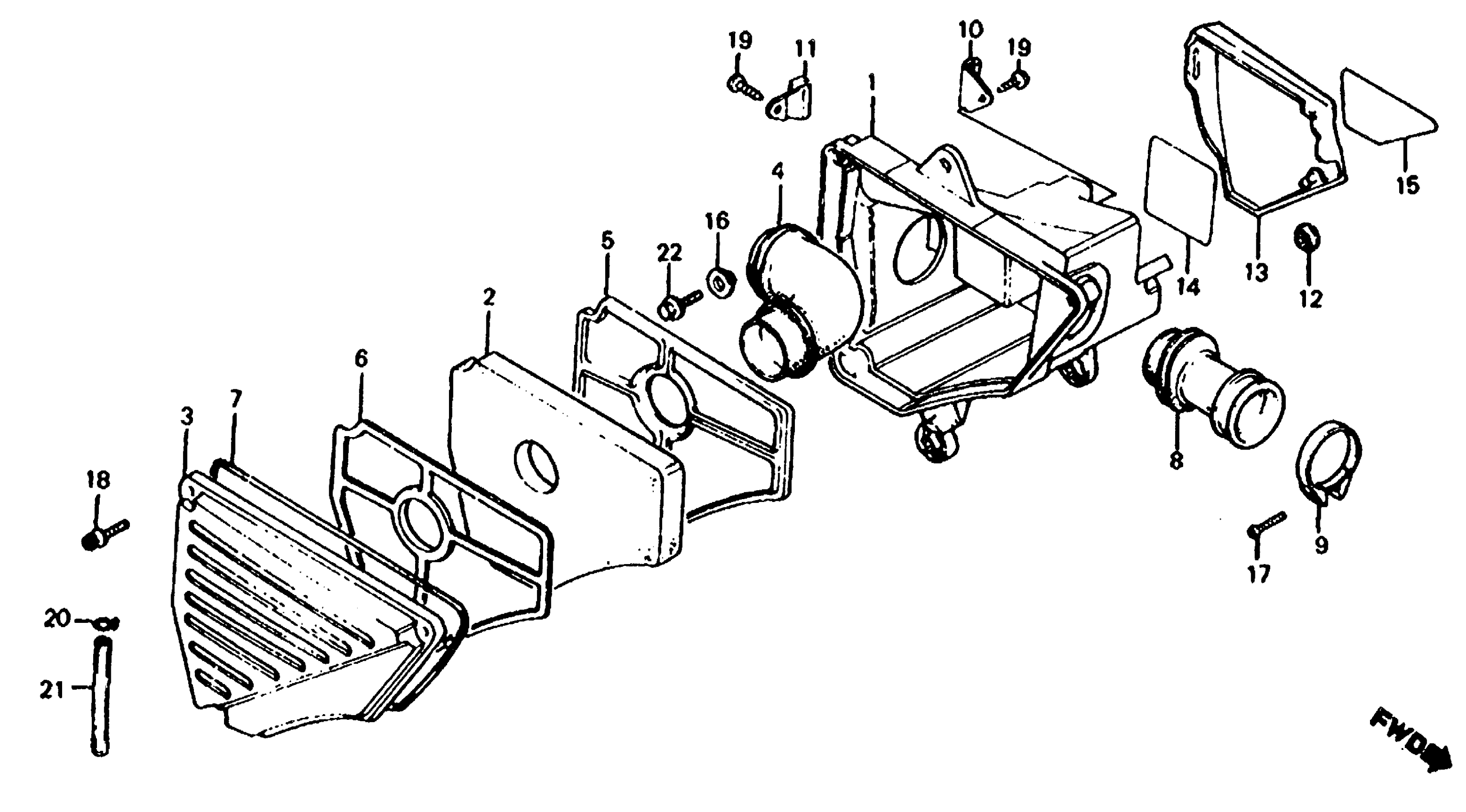

Honda MB5A (82) MOTORCYCLE, JPN, VIN# JH2AC010-CK000011 AIR CLEANER Diagram

#

Description
Price

1

CASE A, AIR CLEANER (NOT AVAILABLE)

17210-183-300

Unavailable

2

ELEMENT, AIR CLEANER

17211-166-000

Unavailable

3

CASE B, AIR CLEANER (NOT AVAILABLE)

17212-166-000

Unavailable

4

TUBE, AIR CLEANER DUCT (NOT AVAILABLE)

17213-166-300

Unavailable

5

HOLDER A, ELEMENT

17221-166-300

Unavailable

6

HOLDER B, ELEMENT

17222-166-000

Unavailable

7

SEAL, AIR CLEANER COVER This part replaces 17212-GC8-000.

17222-MN4-405

$7.31

7

SEAL, AIR CLEANER COVER This part replaces 17212-GJ5-000.

17222-MN4-405

$7.31

7

SEAL, AIR CLEANER COVER This part replaces 17212-GR1-000.

17222-MN4-405

$7.31

7

SEAL, AIR CLEANER COVER This part replaces 17212-KJ9-000.

17222-MN4-405

$7.31

7

SEAL, AIR CLEANER COVER This part replaces 17219-HB3-000.

17222-MN4-405

$7.31

7

SEAL, AIR CLEANER COVER This part replaces 17219-MA0-000.

17222-MN4-405

$7.31

7

SEAL, AIR CLEANER COVER This part replaces 17219-MC4-000.

17222-MN4-405

$7.31

7

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

7

SEAL, AIR CLEANER COVER This part replaces 17226-166-000.

17222-MN4-405

$7.31

7

SEAL, AIR CLEANER COVER This part replaces 17231-MB1-000.

17222-MN4-405

$7.31

7

SEAL, AIR CLEANER COVER This part replaces 17231-MB2-000.

17222-MN4-405

$7.31

7

SEAL, AIR CLEANER COVER This part replaces 17231-MB4-000.

17222-MN4-405

$7.31

8

TUBE, AIR CLEANER CONNECTING This part replaces 17253-166-310.

17253-166-320

Unavailable

8

TUBE, AIR CLEANER CONNECTING

17253-166-320

Unavailable

9

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 17255-166-000.

95018-42250

$7.72

9

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 17256-KG8-900.

95018-42250

$7.72

9

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 90652-GHB-640.

95018-42250

$7.72

9

BAND, AIR CLEANER CONNECTING TUBE (42)

95018-42250

$7.72

10

STAY A, BATTERY BAND (NOT AVAILABLE)

31611-167-000

Unavailable

11

STAY B, BATTERY BAND (NOT AVAILABLE)

31612-183-000

Unavailable

12

GROMMET, SIDE COVER

83551-376-000

$2.97

13

COVER, L. SIDE (NOT AVAILABLE)

83700-166-670

Unavailable

14

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-166-670

Unavailable

15

MARK, AIR CLEANER CAUTION (NOT AVAILABLE)

87507-166-610

Unavailable

16

WASHER (6X20)

90512-300-000

$3.08

17

SCREW, PAN (5X32)

93500-05032-0A

$1.49

18

SCREW-WASHER (5X20)

93891-05020-07

$1.49

19

SCREW, TAPPING (5X16)

93901-35320

Unavailable

20

CLIP, TUBE (C11)

95002-70000

$1.56

21

BULK HOSE, VINYL (7X11X1000) (7X11X50)

95003-19001-10M

$3.89

22

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

22

BOLT, FLANGE (6X14)

95701-06014-08

$1.55
