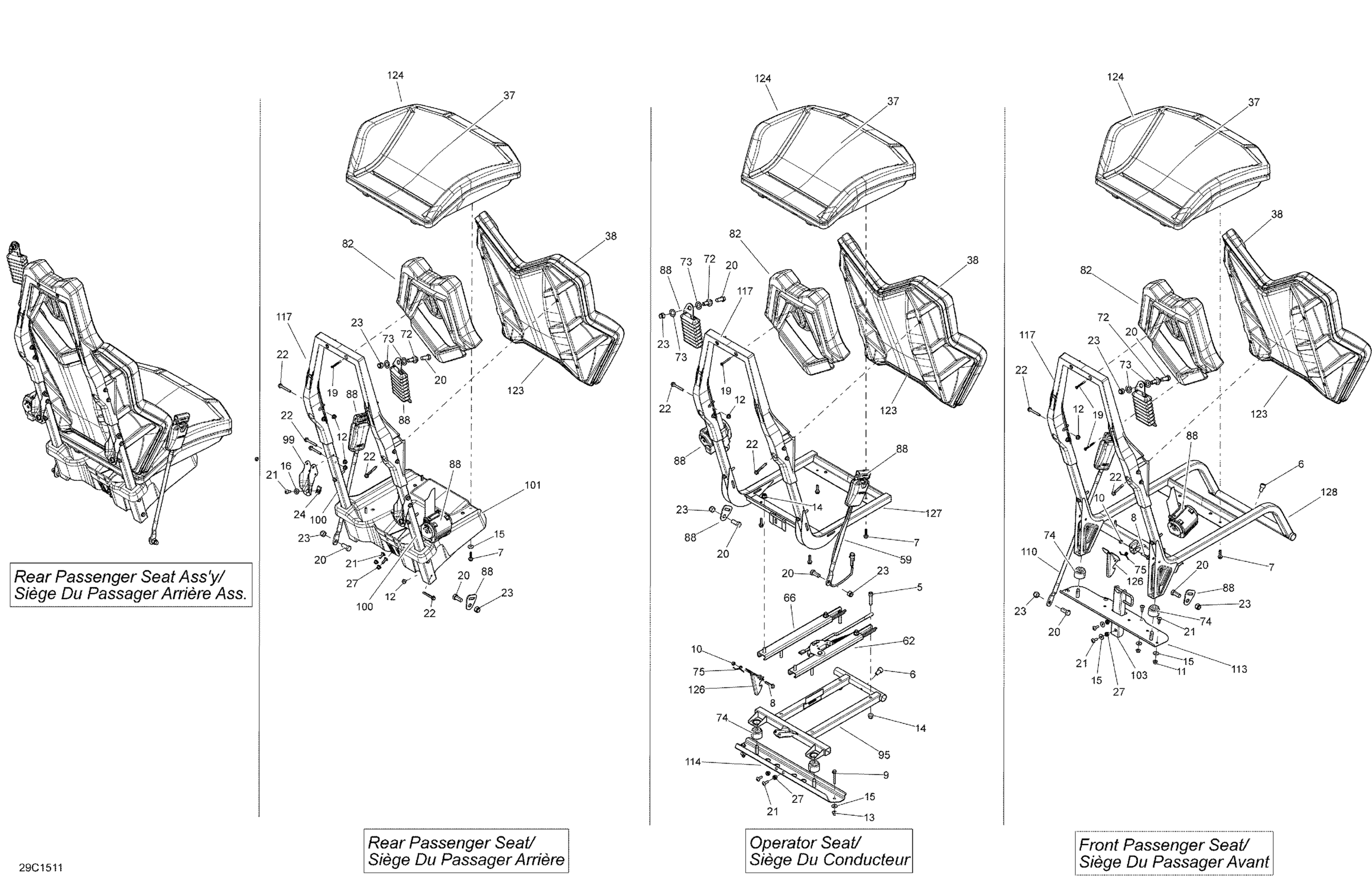

Can-Am Maverick MAX 1000_XDS-DPS, 2015 Seat _29C1511 Diagram

#

Description
Price

5

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

6

Socket Screw M10 X 16

205501644

$3.38

7

Hex. Flange Screw M6 X 25

207562544

$1.39

8

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

9

Hex. Flange Screw M6 X 45

207664544

$1.07

10

Hex. Elastic Stop Nut M6

232561600

$0.92

11

Hex. Flange Nut M6

233061414

$1.34

12

Hex. Elastic Flange Nut M6

233161464

$0.83

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Hex. Flange Elastic Nut M8

233281414

$1.14

15

Stainless Steel Flat Washer

234062670

$1.74

16

Conical Spring Washer M8

234281474

$1.25

19

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

20

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

21

Tork Screw M6 X 18

250000536

$2.06

22

Hex. Flange Screw M6

250000672

$1.74

23

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$5.84

24

Panel Nut M6 X 1.0

250100171

$3.21

27

Threaded Insert M6 X 1.0

250100242

Unavailable

37

Seat Cover

708001554

$110.74

38

BACKREST COVER - Call your local BRP dealership

708001574

Unavailable

59

Driver Buckle Side

708002061

$69.20

62

RH Rail

708001739

$36.89

66

LH Rail

708000848

$50.74

72

Safety Belt Screw

708000890

$3.68

73

Position Washer

708000891

$1.15

74

Rubber Bumper

708001671

$2.31

75

Spring

708000921

$1.15

82

Head Rest

708001074

$96.89

88

Safety Belt

708001302

$272.28

95

Seat Member

708001174

$78.43

99

Anchor

708001195

Unavailable

100

LATERAL TUBE - Call your local BRP dealership

708001196

Unavailable

101

Seat Support

708001198

$64.58

103

Anchor

708001213

$23.05

110

Passenger Buckle Side

708001206

$64.58

113

Support

708001804

$46.12

114

Seat Support

708001214

$64.58

117

Seat Support

708001245

$27.66

123

BACKREST - Call your local BRP dealership

708001573

Unavailable

124

Cushion Assembly

708001552

$332.28

126

Seat Latch

708001355

$2.75

127

Operator Seat Frame

708001356

$313.82

128

Passenger Seat Frame

708001357

$304.58
