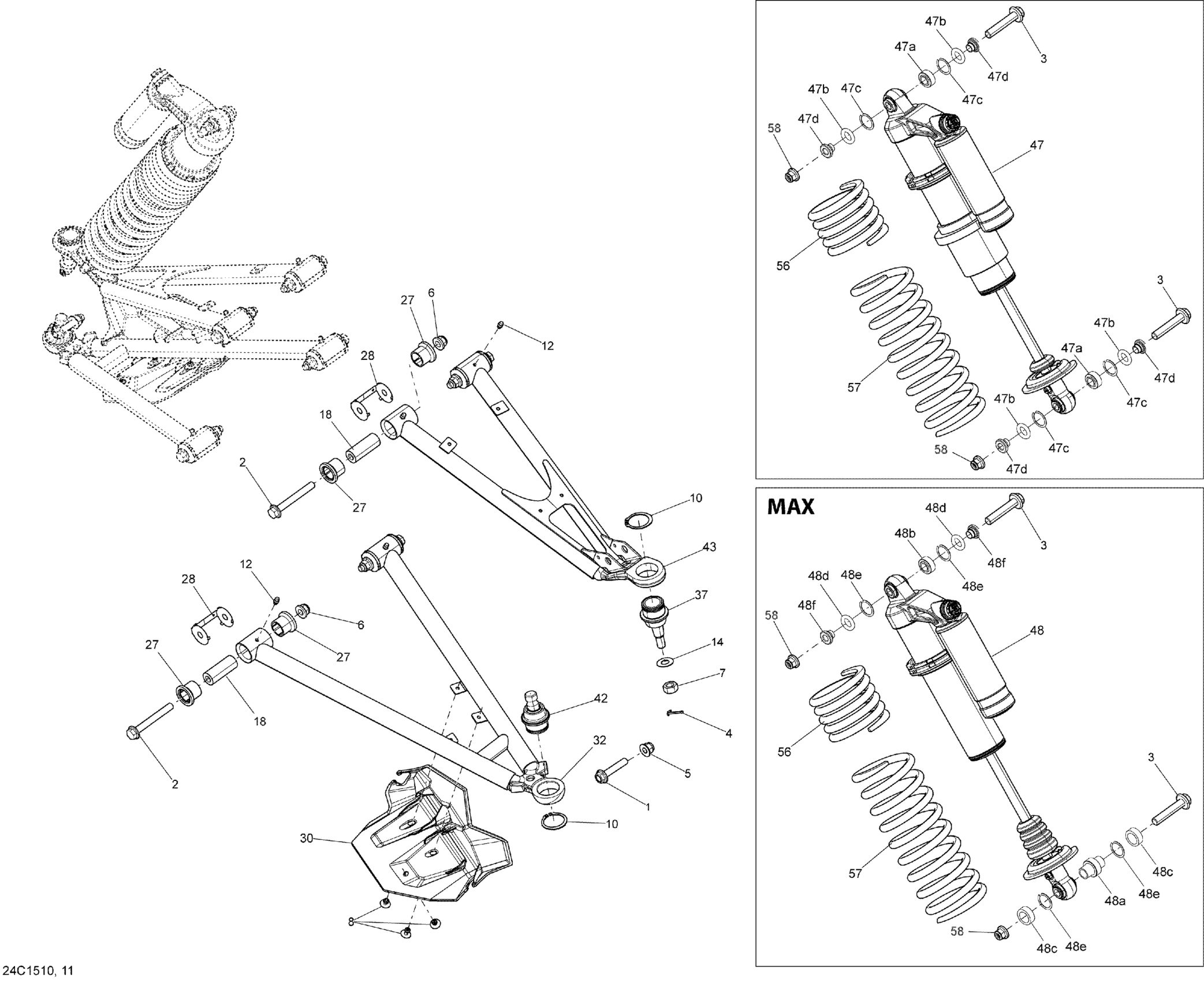

Can-Am Maverick MAX 1000_XDS-DPS, 2015 Front Suspension _24C1511 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 50

207605044

$4.39

2

Hex Flange Screw M10 X 80

207608046

$4.46

3

Hex. Flange Screw M12 X 60

207626046

$6.08

4

Cotter Pin

211400017

$0.25

5

Hex. Flange Elastic Nut M10

233201414

$1.26

6

Hex. Flange Elastic Nut M10

233201436

$1.74

7

Nut M12

250100099

$1.64

8

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

10

Circlip

293370035

$2.55

12

Grease Fitting

408200700

$2.80

14

Hardened Washer

706200281

$2.34

18

Sleeve

706201590

$11.06

27

Suspension Arm Bushing

706204409

$8.29

28

Wear Plate

706201660

$0.89

30

LH Joint Protector

706202808

$9.29

30

RH Joint Protector

706202809

$9.29

32

LH Front Lower Arm

706201861

$193.82

32

RH Front Lower Arm

706201862

$193.82

37

Ball Joint

706202044

$35.14

42

Ball Joint

706202045

$35.35

43

Green Front Upper Arm | Model-Quarry Grey

706202392

$193.82

43

Green Front Upper Arm | Model-Quarry Grey

706202392

$193.82

43

Green Front Upper Arm | Model-Quarry Grey

706202392

$193.82

47

Front Shock | Model-MAV XDSDPS Black Carbon Fiber

706202154

$899.99

47

Front Shock | Model-MAV XDSDPS Black Carbon Fiber

706202154

$899.99

47

Front Shock | Model-MAV XDSDPS Black Carbon Fiber

706202154

$899.99

47

Front Shock | Model-MAV XDSDPS Black Carbon Fiber

706202154

$899.99

47

Front Shock | Model-MAV XDSDPS Black Carbon Fiber

706202154

$899.99

47

Front Shock | Model-MAV XDSDPS Black Carbon Fiber

706202154

$899.99

47a

Spherical Bearing

715900266

$76.12

47b

O-Ring Bushing

715900338

$10.98

47c

CIRCLIP - Call your local BRP dealership

715900339

$10.62

47d

INTERNAL BUSHING - Call your local BRP dealership

715900340

Unavailable

48

Front Shock | Model-MAV-MAX

706202157

$919.99

48a

Spherical Bearing

715900266

$76.12

48b

Spherical Bearing

715900330

$81.51

48c

Protector

715900331

$13.83

48d

O-Ring Bushing

715900268

$13.52

48e

Retaining Ring

715900252

$10.98

48f

Internal Bushing

715900267

$27.66

56

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV XDSDPS Black Carbon Fiber

706202155

Unavailable

56

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV XDSDPS Black Carbon Fiber

706202155

Unavailable

56

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV XDSDPS Black Carbon Fiber

706202155

Unavailable

56

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV XDSDPS Black Carbon Fiber

706202155

Unavailable

56

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV-MAX

706202158

Unavailable

56

Yellow, Front Spring | Model-MAVERICK Turbo Deep Black

706202291

Unavailable

57

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV XDSDPS Black Carbon Fiber

706202156

Unavailable

57

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV XDSDPS Black Carbon Fiber

706202156

Unavailable

57

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV XDSDPS Black Carbon Fiber

706202156

Unavailable

57

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV XDSDPS Black Carbon Fiber

706202156

Unavailable

57

MANTA GREEN SPRING - Call your local BRP dealership | Model-MAV-MAX

706202159

Unavailable

57

Yellow Front Spring | Model-MAVERICK Turbo Deep Black

706202292

Unavailable
