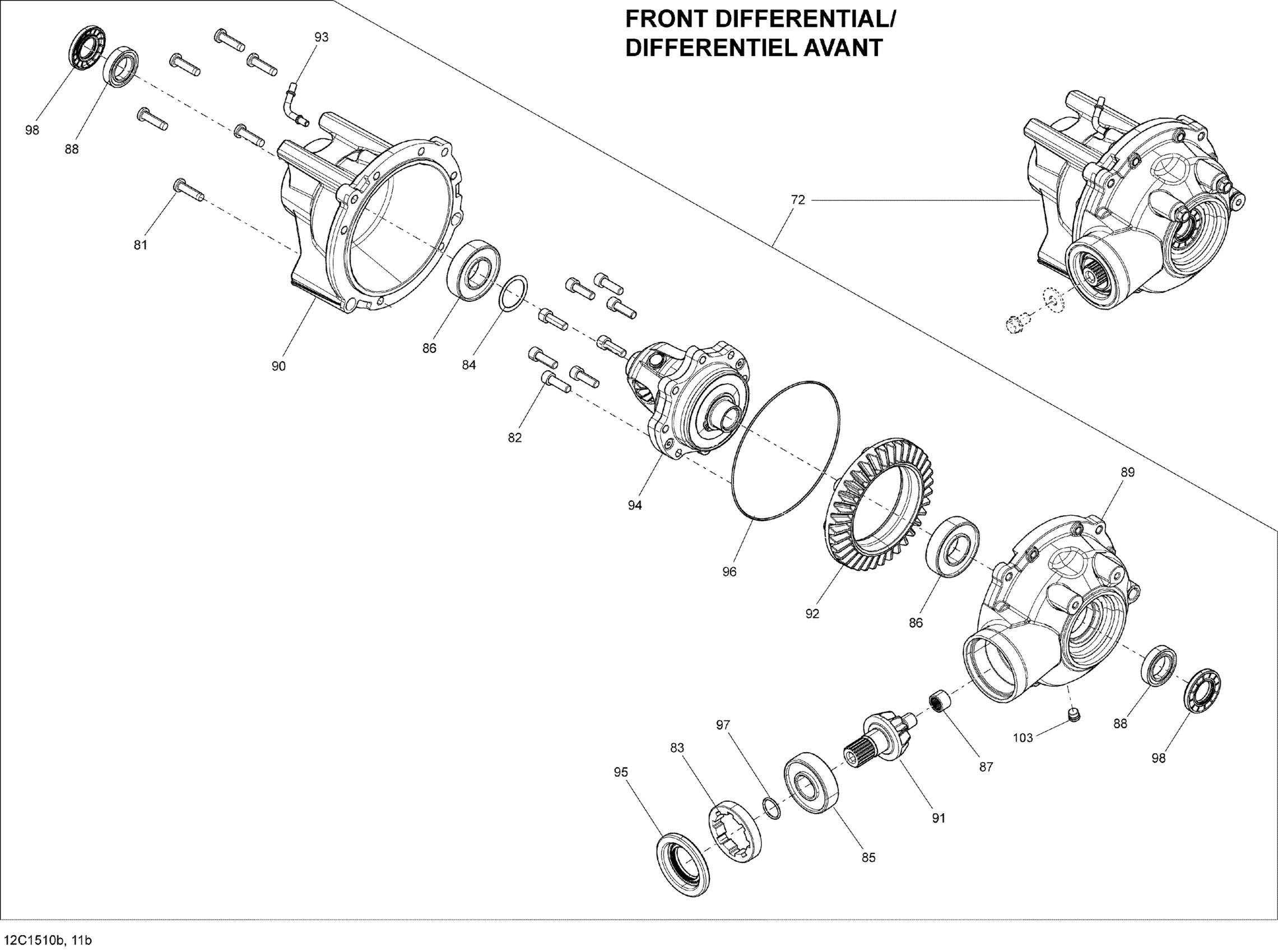

Can-Am Maverick MAX 1000_XDS-DPS, 2015 Drive System, Front Differential_12C1511b Diagram

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

Screw | 4X4

705401601

$9.29

Screw | After May 30, 2014

705401602

$6.45

Nut | 4X4

705401603

$36.89

Shim | 4X4

705401604

$55.35

Ball Bearing | After May 30, 2014

705401605

$30.74

Ball Bearing | 4X4

705401606

$49.20

Ball Bearing | After May 30, 2014

705402848

$46.12

Ball Bearing | After May 30, 2014

705401608

$49.20

Front Pinion Cover | After May 30, 2014

705401792

$143.05

Front Cover | After May 30, 2014

705401610

$143.05

Pinion 10 Teeth | After May 30, 2014

705402841

$207.66

Gear 36 Teeth | After May 30, 2014

705401612

$383.05

Vent Valve | After May 30, 2014

705401613

$14.37

Differential | Package-DPS, XT, XTP

705402182

$1,174.99

Oil Seal | After May 30, 2014

705401615

$18.43

Seal | After May 30, 2014

705401616

$13.83

O'Ring | After May 30, 2014

705401617

$7.37

Gasket | 4X4

705401618

$17.66

Drain Plug | After May 30, 2014

705501885

$12.68
