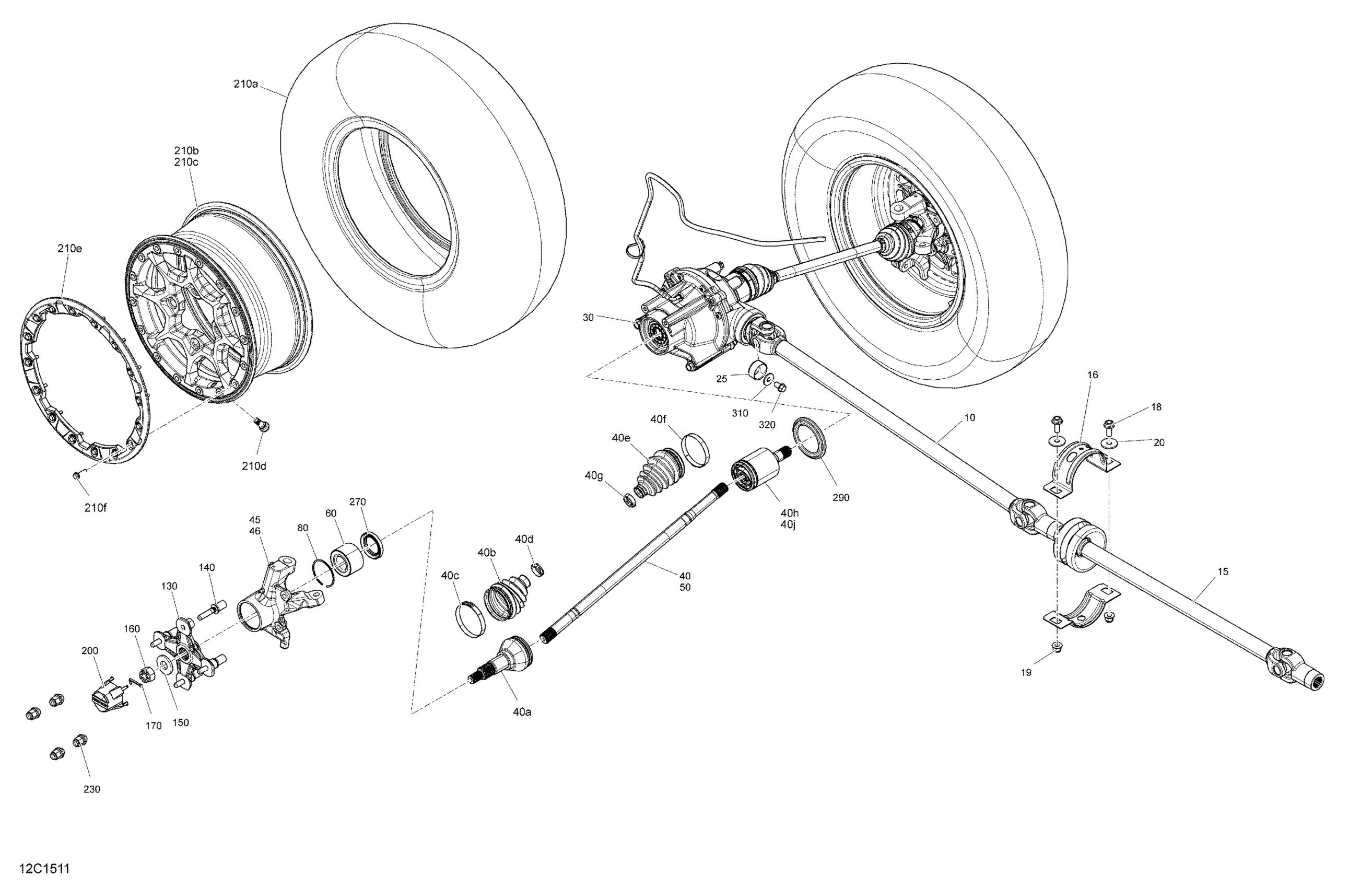

Can-Am Maverick MAX 1000_XDS-DPS, 2015 Drive System, Front _12C1511a Diagram

Drive Shaft Assembly

705402068

$238.49

Drive Axle Ass'y | Model-COM-MAX

705402041

$413.49

Ball Bearing | Model-COM-MAX

705401646

$62.49

Hex. Flange Screw M10 X 25

207602544

$1.69

Hex. Flange Elastic Nut M10

233201414

$1.58

Washer

503032900

$3.28

Wear Ring | 4X4

705400036

$26.49

Front Differential | Includes 8 to 31

703500907

$1,579.99

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

RH CV Joint

705401874

$243.99

LH Front Knuckle

705401548

$132.49

RH Front Knuckle

705401549

$104.99

LH CV Joint

705401873

$243.99

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

Wheel Hub

705501900

$132.49

Wheel Stud

250300060

$11.49

Conical Spring Washer M18

250200171

$7.65

Hex. Flange Castellated Nut M18

232291413

$7.98

Cotter Pin

250400036

$2.11

Wheel Cap

705400928

$10.49

Black, Wheel Nut M10 X 1.25

250100184

$4.51

O-Ring

293250246

$7.51

Wear Sleeve

705400780

$7.90

Flat Washer M10 | 4X4

250200014

$1.49

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Front Tire Maxxis 28X9X14 | Model-North America, International

705402080

$259.49

Front Tire | STD Europe Model

705401046

$144.99

Black Rim | Package XTP Except Europe

705401594

$297.99

Deep Black, 12" X 6 Rim | STD

705401417

$190.49

Insert | XXC

293450317

$7.29

Rim Valve With Cap

705400193

$8.69

Manta Green, Reinforcement Disk | Model Mineral Gray Satin

705401586

$92.99

Blue Reinforcement Disk | Package XMR Blue

705401702

$92.99

Hex. Flange Screw M6 X 25

250000787

$2.22

CV Joint

705401344

$259.49

Boot Kit, Wheel Side

705401345

$42.49

Oetiker Clamp

715900282

$5.29

Oetiker Clamp, Small

715900283

$5.29

Boot Kit, Differential Side

705401346

$42.49

Oetiker Clamp, Large

715900284

$5.29

Oetiker Clamp, Small

715900261

$5.29

RH Plunging Joint

705401348

$259.49

Circlip Joint | Not shown

705401349

$6.50
