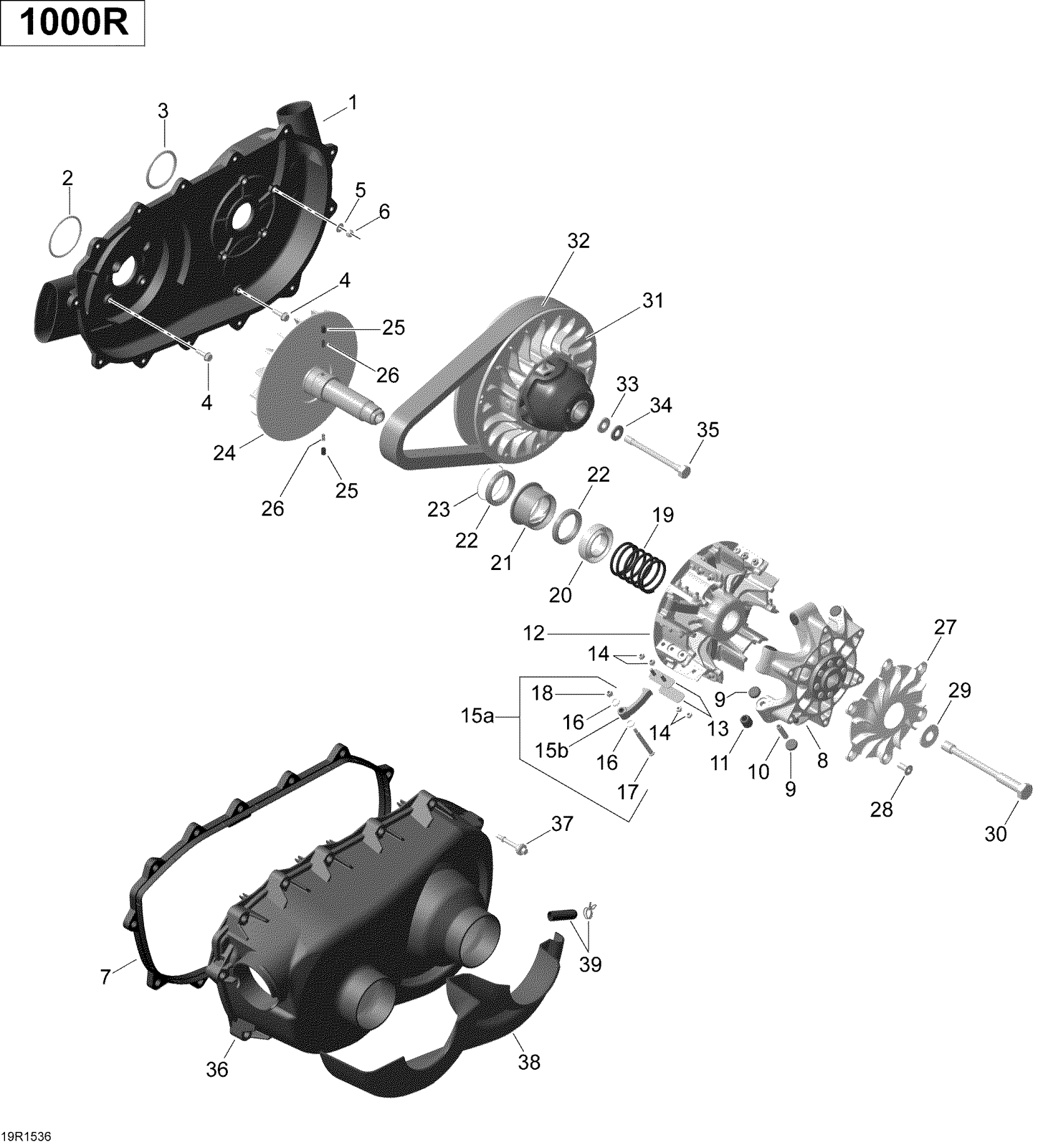

Can-Am Maverick MAX 1000_XDS-DPS, 2015 Transmission Turbo _19R1536 Diagram

#

Description
Price

1

CVT Air Guide

420612304

$184.58

2

O-Ring

420430408

$5.52

3

O-Ring

420631089

$5.52

4

Hex.Screw M6 X 20

420441311

$4.24

5

Flat Washer

224061121

$0.44

6

Elastic Stop Nut M6

232561434

$1.55

7

Gasket

420430126

$41.51

8

Governor Cup Ass'y | Includes 8 to 11

420280589

$253.82

9

Slider Shoe Set

420281296

$42.28

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Outher Haft Ass'y | Includes 12 to 14

420280464

$449.97

13

Slide Plate

420651763

$5.52

14

Elastic Stop Nut M5

232551414

$0.72

15a

Centrifugal Lever Kit (Set Of 6) | Includes 15a to 18

420248648

$179.97

15b

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Compression Spring, Drive Pulley

420238615

$16.12

20

Seat Spring

420627578

$28.57

21

Drive Pulley Clutch

420257191

$118.27

22

Ball Bearing

420632377

$40.27

23

Retaining Ring

420245951

$4.72

24

Inner Half

420280579

$318.43

25

Not Available As Spare Parts

XXX

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Fan

420864910

$59.97

28

Flat Head Screw M8 X 20

420641407

$4.60

29

Washer

420245690

$4.60

30

Hex. Screw M14 X 1.5 X 153.5

420841091

$27.66

31

Not Available As Spare Part - Friction Washer

Unavailable

32

V Belt

422280367

$199.49

33

-Thrust Washer

420427770

$24.58

34

Spring Washer

420445441

$1.15

35

Hex. Screw M10 X 110

420441485

$11.98

36

Variator Cover | Includes 38

420212285

$175.35

37

Hex Screw M6 X 30

420440568

$7.10

38

Heat Protection Mat

715900358

$50.74

39

Drain Plug Kit

707001179

$9.22
