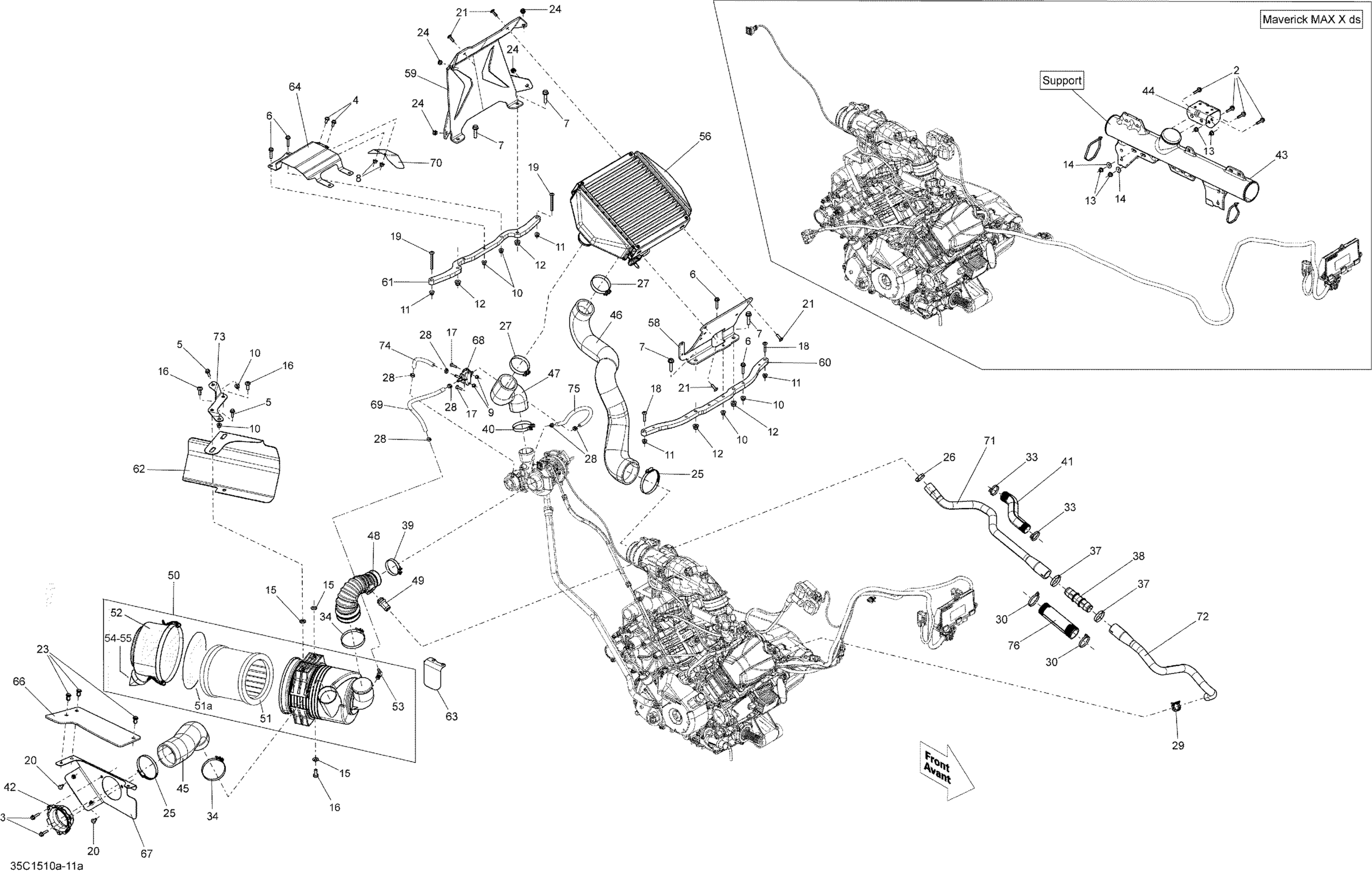

Can-Am Maverick MAX 1000_XDS-DPS, 2015 Air Intake _Turbo_35C1511a Diagram

#

Description
Price

2

Hex. Flange Screw M6 X 25

207562544

$1.60

3

Hex. Flange Screw M6 X 25

207562544

$1.60

4

Hex. Flange Screw M6 X 12

207661244

$1.96

5

Hex. Flange Screw M6 X 20

207662046

$2.00

6

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

7

Hex. Flange Screw M8 X 35

207683544

$1.60

8

Hex. Flange Nut M6

233061414

$1.54

9

Flange Elastic Nut M5

233251434

$1.91

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Flange Elastic Nut M6

233261434

$4.15

12

Hex. Flange Elastic Nut M8

233281414

$1.31

13

Hex. Flange Nut M6

233061414

$1.54

14

Flat Washer 6 mm

234062410

$0.73

15

Conical Spring Washer M8

234281474

$1.43

16

Hex. Screw M8 X 20

236282084

$1.43

17

Torx Screw M5 X 20

250000724

$1.60

18

Stainless, Torx Screw M6 X 30

250000842

$2.00

19

Torx Screw M6 X 60

250000648

$7.06

20

Torx Truss Screw M6 X 16

250000721

$1.60

21

Torx Screw M6 X 20

250000722

$1.54

23

Tuflok Plastic Rivet

293150230

$1.39

24

Insert

293450278

$3.97

25

Norma Clamp

293650091

$10.54

26

Crimp Clamp

293650099

$4.07

27

Norma Gear Clamp

293650118

$11.18

28

Oetiker Clamp | Europe

293650044

$4.67

29

Norma Spring Clamp

293650213

$3.01

30

Tie Wrap 368 mm

293750008

$0.97

33

Tie Wrap 368 mm

293750008

$0.97

34

Gemi Clamp

508000346

$9.03

37

Oetiker Gear Clamp

509000181

$4.15

38

Fitting

509000914

$6.75

39

Norma Gear Clamp

293650090

$4.25

40

Norma Gear Clamp

293650090

$4.25

41

Tubing 25 MM 1000MM Long

219704402

$14.57

42

CVT Filter Base

707001171

$8.34

43

Intake Adaptor

707800515

$60.42

44

Rear Support

707800560

$15.64

45

AIR INTAKE - Call your local BRP dealership

707800605

Unavailable

46

AIR INTAKE - Call your local BRP dealership

707800608

Unavailable

47

AIR INTAKE - Call your local BRP dealership

707800607

Unavailable

48

AIR INTAKE - Call your local BRP dealership | Includes 48 to 49

707800611

Unavailable

49

Breather Valve

273000234

$12.21

50

Air Silencer Ass'y | Includes 50 to 54

707800612

$191.76

51

Air Filter Kit | Include 51a

715900356

$44.75

51a

COVER O-RING - Call your local BRP dealership

715900355

Unavailable

52

Cover | Include 51a

715900343

$84.30

53

Elbow Fitting Kit

715900344

$64.15

54

Cover Cap

715900354

$34.30

55

Duct Bill Valve

715003114

$12.09

56

INTERCOOLER ASSY - Call your local BRP dealership

707800721

Unavailable

58

FRONT SUPPORT - Call your local BRP dealership

707800621

Unavailable

59

REAR SUPPORT - Call your local BRP dealership

707800622

Unavailable

60

FRONT SUPPORT - Call your local BRP dealership

707800623

Unavailable

61

REAR SUPPORT - Call your local BRP dealership

707800624

Unavailable

62

Deflector

707800625

$38.78

63

DEFLECTOR - Call your local BRP dealership

707800626

Unavailable

64

DEFLECTOR - Call your local BRP dealership

707800628

Unavailable

66

COVER - Call your local BRP dealership

707800630

Unavailable

67

SUPPORT - Call your local BRP dealership

707800631

Unavailable

68

THREE-WAY ELECTRIC VALVE - Call your local BRP dealership

707800632

Unavailable

69

FUEL LINE 1000MM LONG - Call your local BRP dealership

219704437

Unavailable

70

DEFLECTOR - Call your local BRP dealership

707800643

Unavailable

71

HOSE - Call your local BRP dealership

707800645

Unavailable

72

HOSE - Call your local BRP dealership

707800646

Unavailable

73

SUPPORT - Call your local BRP dealership

707800653

Unavailable

74

FUEL LINE 1000MM LONG - Call your local BRP dealership

219704437

Unavailable

75

FUEL LINE 1000MM LONG - Call your local BRP dealership

219704437

Unavailable

76

Tubing 35 MM 1000MM Long

219704428

$9.84
