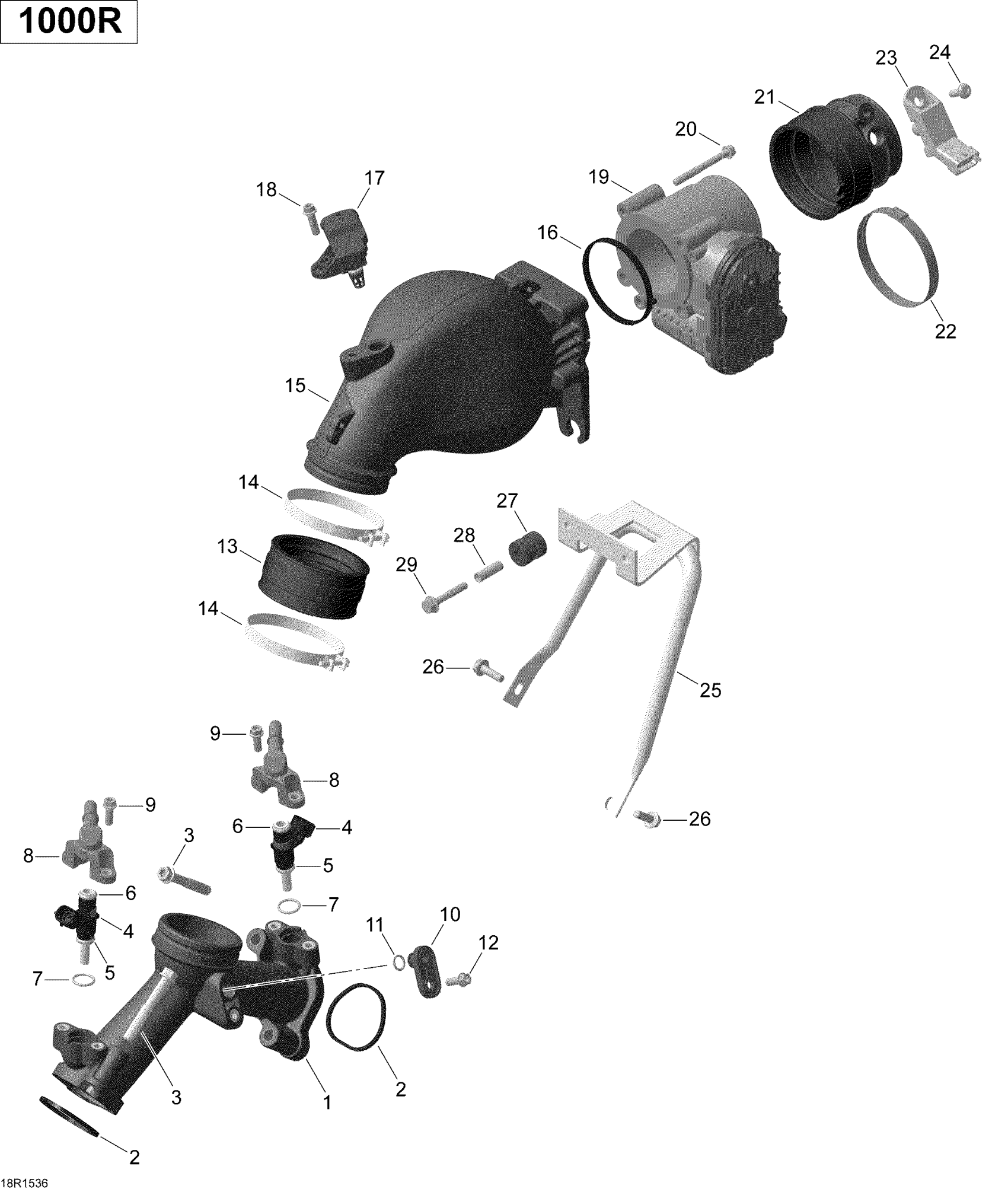

Can-Am Maverick MAX 1000_XDS-DPS, 2015 Air Intake Manifold And Throttle Body Turbo _18R1536 Diagram

#

Description
Price

1

Air Intake Manifold

420667520

$67.13

2

Gasket

420630642

$5.06

3

Torx Flange Screw M8 X 55

420641213

$7.01

4

Injection Valve Ass'y | Includes 4 to 6

420274250

$155.19

5

O-Ring

420431890

$5.69

6

O-Ring

420631220

$13.18

7

O-Ring

420631296

$0.72

8

Fuel Rail

420874901

$22.36

9

Torx Flange Screw M6 X 16

420641048

$2.82

10

Cover

420460980

$2.68

11

O-Ring

420230461

$0.96

12

Torx Flange Screw M6 X 16

420641048

$2.82

13

Intake Neck

420267042

$15.64

14

Clamp

420251209

$8.09

15

AIR INLET MANIFOLD - Call your local BRP dealership

420667760

$221.61

16

Gasket | Included in gasket kit

420431900

$5.04

17

Pressure Sensor And Air Temperature

515178563

$154.45

18

Torx Flange Screw M6 X 20

420441835

$3.01

19

Throttle Body Socket Ass'y

420892596

$433.55

20

Torx Flange Screw M6 X 55

420440702

$2.91

21

Connecting Socket Ass'Y

420867551

$54.45

22

Hose Clamp

420251483

$15.64

23

Pressure Sensor

420274058

$125.34

24

Torx Flange Screw M6 X 16

420641588

$2.00

25

SUPPORT - Call your local BRP dealership

420651525

Unavailable

26

Hex.Screw M6 X 20

420441311

$4.87

27

Rubber Bracket

420660090

$3.88

28

Spacer

420847971

$6.99

29

Hex. Screw M6 X 35

420441457

$3.73
