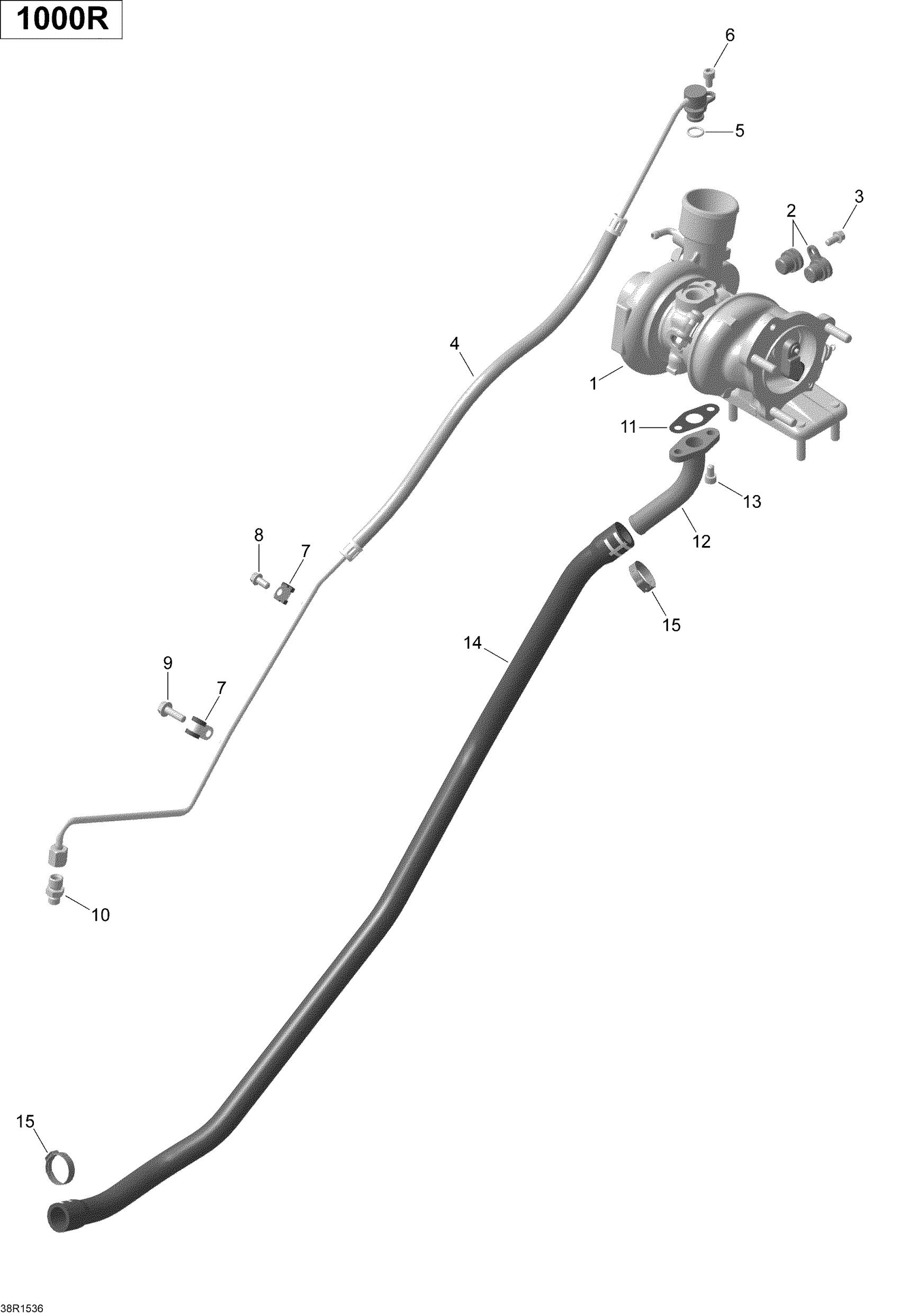

Can-Am Maverick MAX 1000_XDS-DPS, 2015 Turbocharger _38R1536 Diagram

#

Description

Price

1

Turbocharger

420893840

$1,814.15

2

PLUG - Call your local BRP dealership

420622030

Unavailable

3

Hex. Flange Screw M6 X 12

420440149

$2.00

4

Pressure Oil Line | Include 7

420456352

$184.30

5

O-Ring

420650928

$3.01

6

Hex. Flange Screw M6 X 12

420440149

$2.00

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Hex. Flange Screw M6 X 12

420440149

$2.00

9

Hex.Screw M6 X 20

420441311

$4.87

10

Adapter M10/M12

420456420

$18.63

11

Gasket | Included in gasket kit

420631205

$3.33

12

OIL TUBE - Call your local BRP dealership

420456400

Unavailable

13

Torx Flange Screw M6 X 16

420440164

$1.67

14

RETURN OIL LINE - Call your local BRP dealership

420456360

Unavailable

15

Gear Clamp

420851668

$7.21
